Delivery Date:
06/19/2024
Department Name:
East Rutherford Fire Department
Department City / State:
East Rutherford, NJ

Dealer – Signal 1 Fire Equipment

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 47’ – 11”

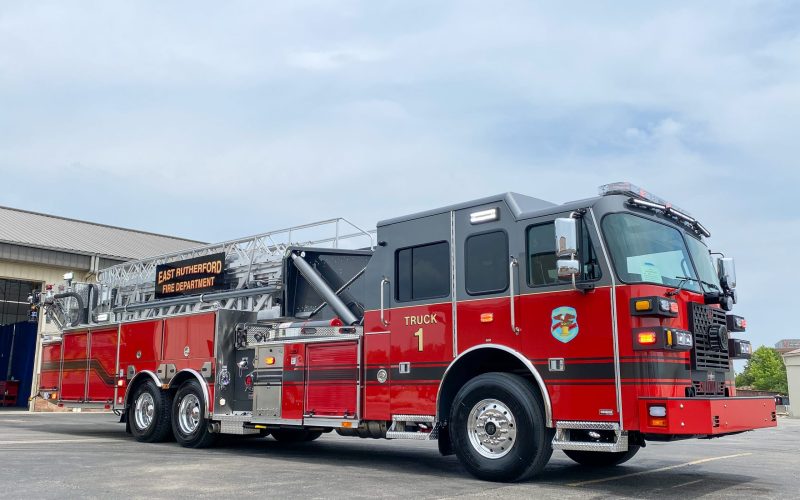

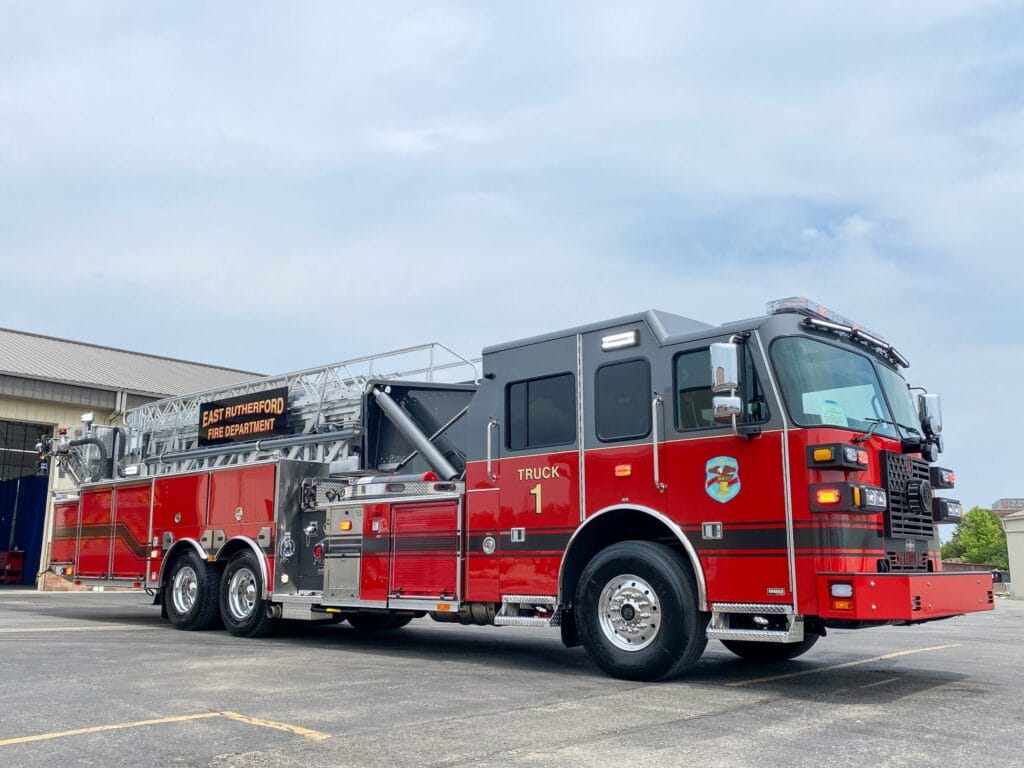

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab w/ a 10” Raised Roof

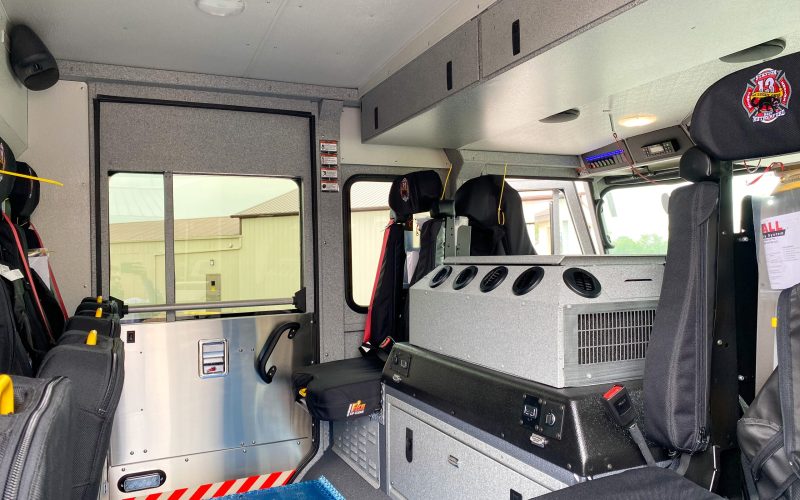

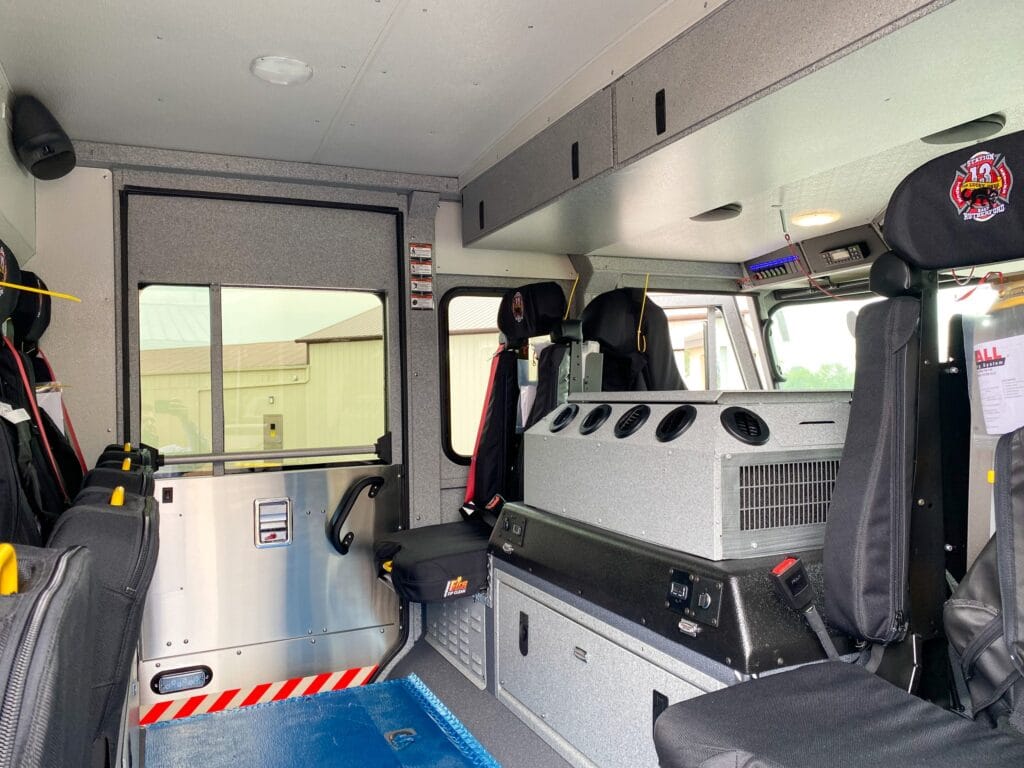

  • Four-Door, Eight-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

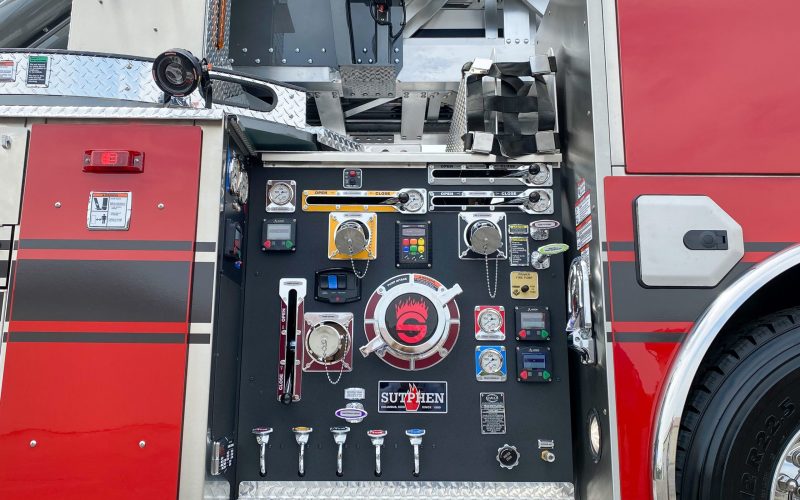

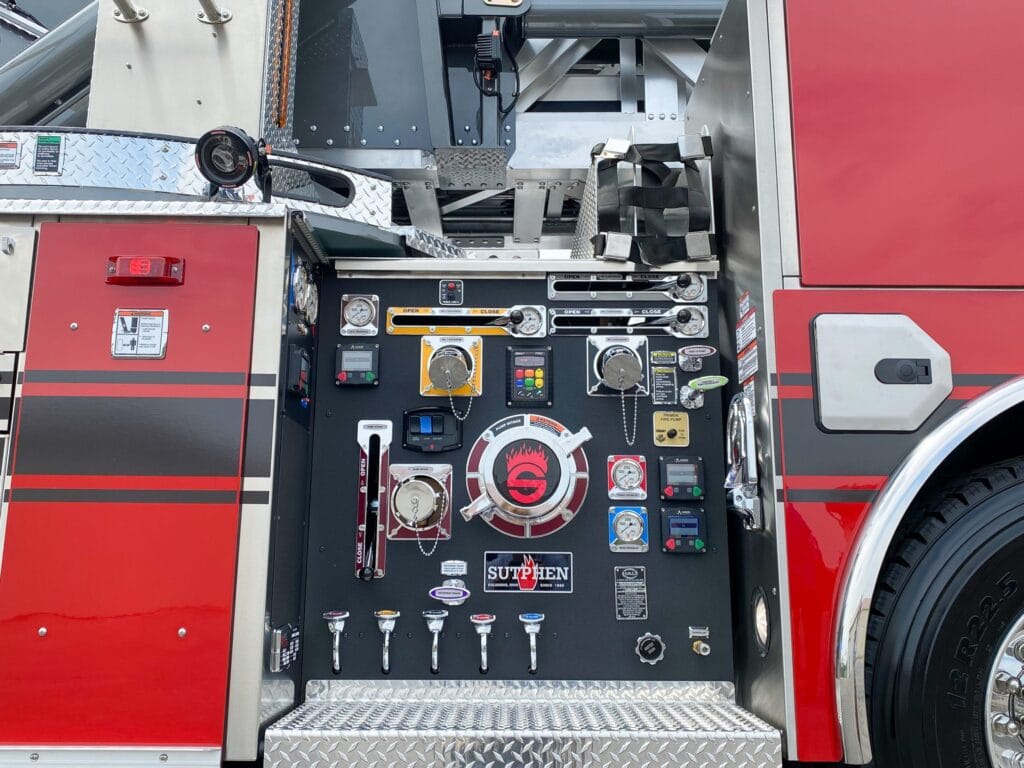

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right
  • Crosslays: (2) 2” Crosslay Valve-Piping w/ 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                 Sutphen

  • Huckbolt #304 Stainless Steel
  • Mixed Roll Up and Hinged Compartment Doors
  • Over 280 cu ft. Total Compartment Space
  • Alco-Lite Ladder Package: 16’, 16’, 24’ 2-Section, 24’ 2-Section, 35’ 2-Section & 10’ F
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC, Act 3-Station
  • Hannay Electric Cord Reel, 175’ (1)
  • Generator: Smart Power, 6KW
  • Camera System: Brigade, Backeye 360
  • Whelen Freedom IV 72” Light Bar
  • 12V FireTech 3-Piece Brow Light
  • 12V FR Spectra Scene Lights
  • 12V FireTech Aerial Spotlights
  • 240V FR Spectra Tele Lights

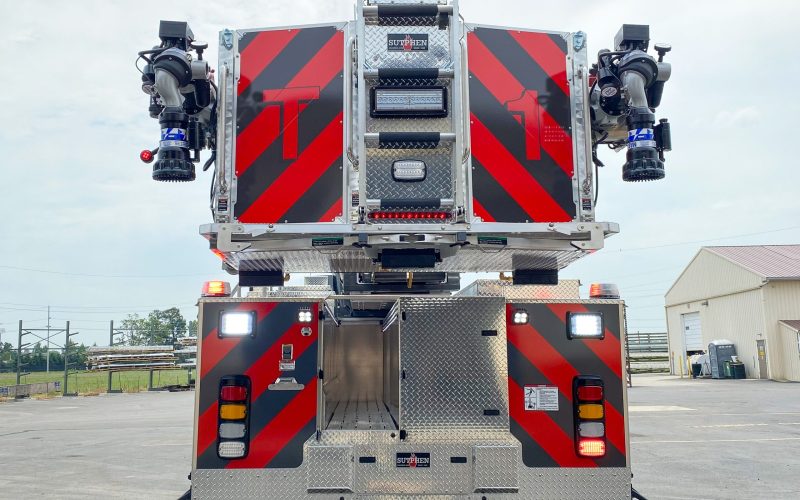

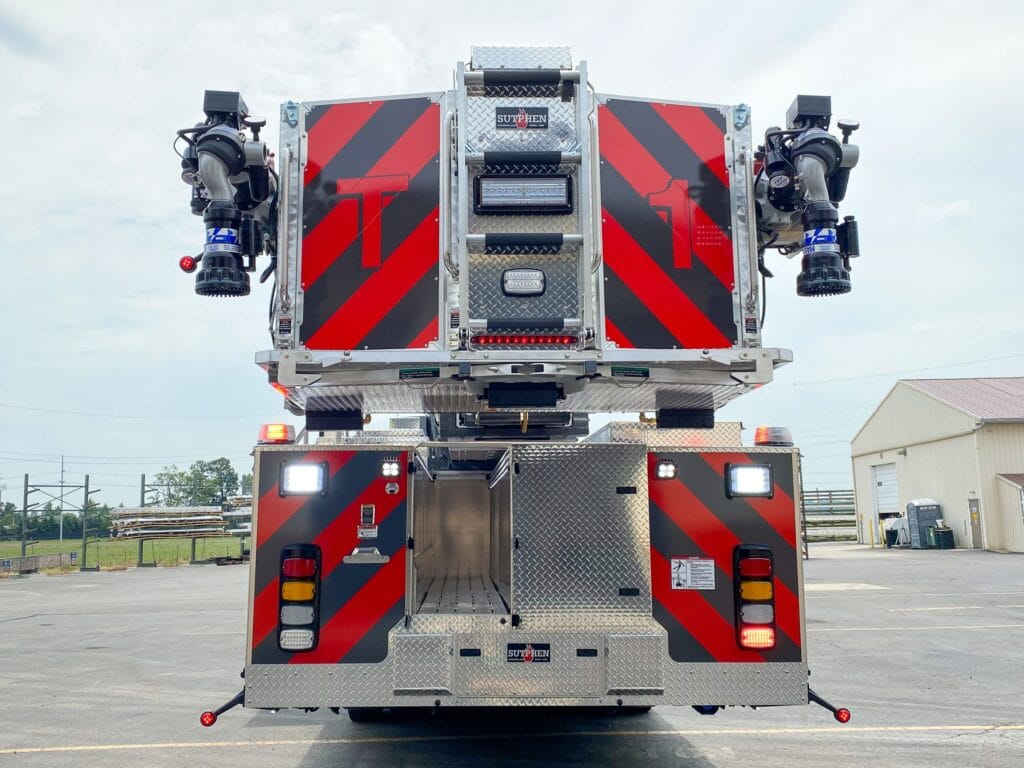

MONITOR:

  • Driver Side Monitor: TFT Monsoon RC, Elec, w/ Elec VUM, (2) Panel Controllers & (1) Wireless Controller, Includes TFT Master Stream 1250 GPM Elec Nozzle
  • Officer Side Monitor: TFT Monsoon RC, Elec, w/ Elec VUM, Includes TFT Master Stream 1250 GPM Elec Nozzle
