Delivery Date:
06/23/2020
Department Name:
Dunkirk Fire Department
Department City / State:
Dunkirk, NY

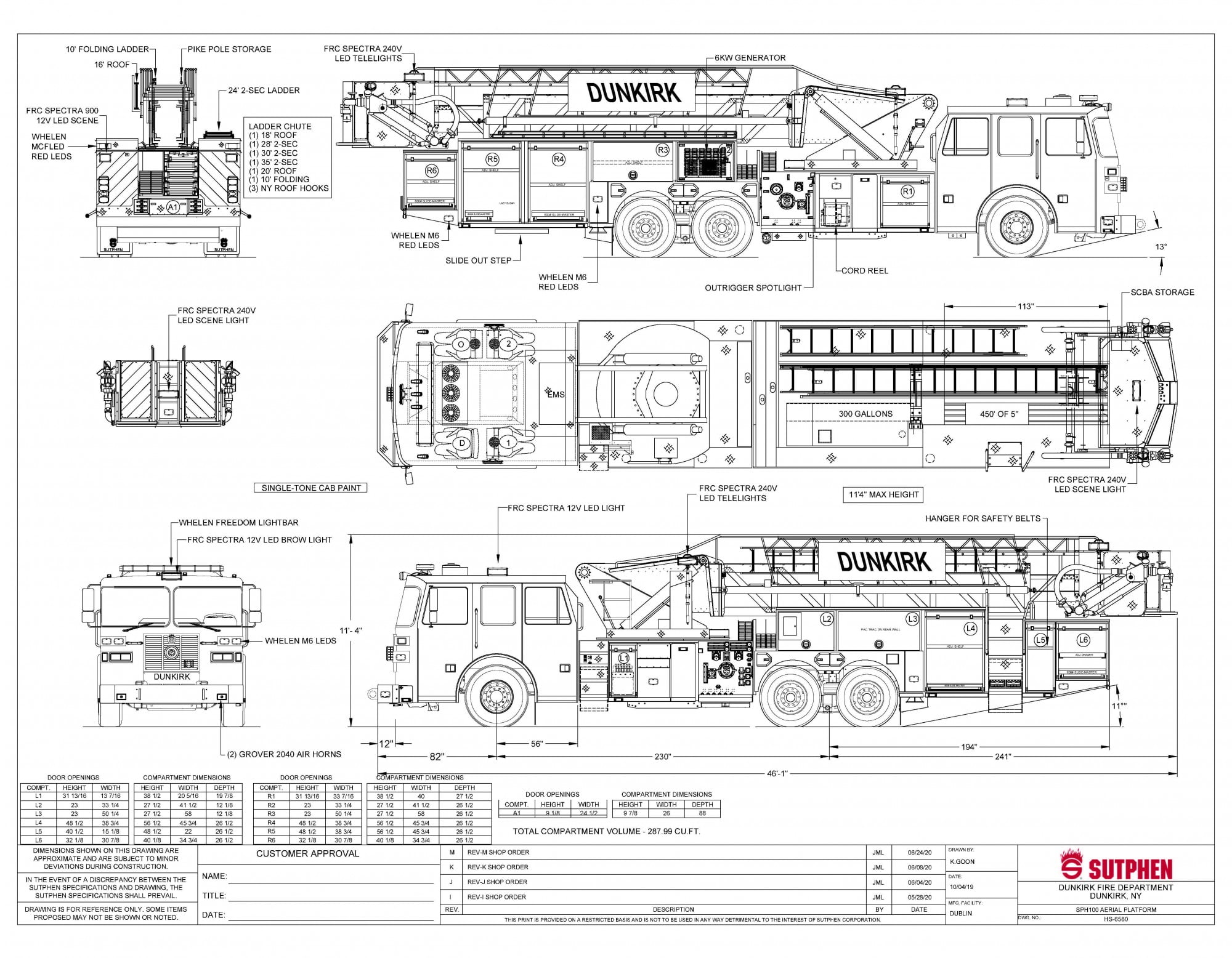

Sutphen Corporation – HS #6580

Dealer – Herb Fire

WHEELBASE: 230”

TRAVEL HEIGHT: 11’ – 4”

TRAVEL LENGTH: 46’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville 320AMP
  • Transmission: Allison, EVS4000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • Crosslay: (2) 2” w/ 1 ½” Swivel, (1) 2 ½” w/ 2 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • AMDOR Roll-Up & Hinged Compartment Doors
  • 287.99 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Package (24’ 2-Section & 28’ 2-Section & 30’ 2-Section & 35’ 2-Section & 16’ Roof & 14’ Roof & 18’ Roof & 20’ Roof & 10’ Folding)
  • Extra: Duo-Safety 10’ Folding
  • Body: SPH-3

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • 7 Bottle Compartments
  • FRC, Inview Trueview Camera System
  • Harrison, 6KW Generator
  • FRC Spectra 12V LED Brow Light
  • Whelen Freedom Lightbar
  • FRC Spectra 240V LED Scene Lights
  • FRC Spectra 240V LED Telelights
  • Whelen M6 LED Red Lights
  • FRC Spectra 900 12V LED Scene Lights
