Delivery Date:
02/22/2023
Department Name:
Davenport Fire Department
Department City / State:
Davenport, IA

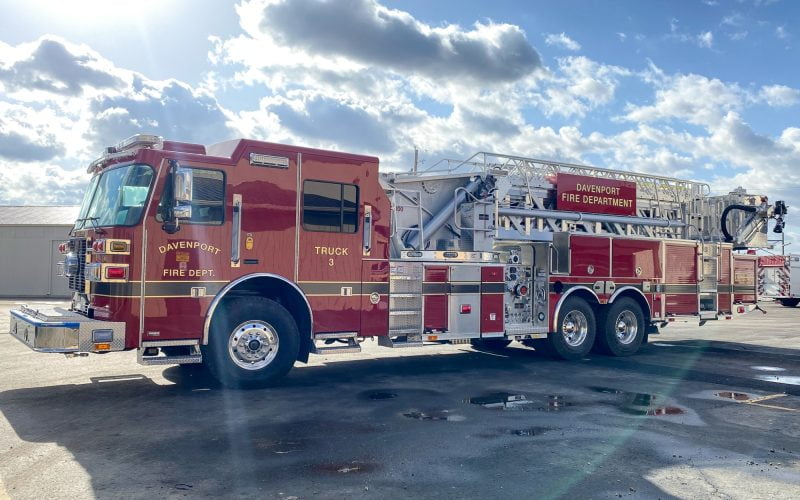

Sutphen Corporation – HS #7274

Dealer – Legacy Fire Apparatus

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15, 600HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

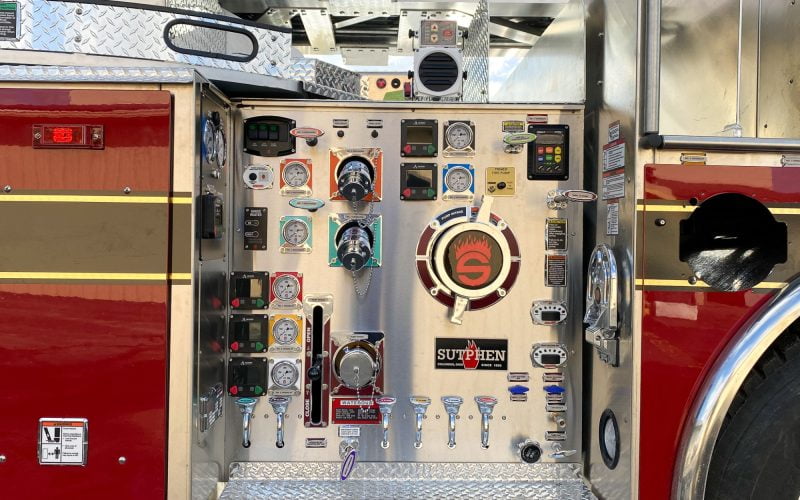

PUMP:                 Waterous

  • CSU-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 3” Right
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolt #304 Stainless Steel
  • Mixed Roll Up and Hinged Compartment Doors
  • Over 280 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 115’: 14’; 16’; 16’; 24’ 2-Section; 35’ 2-Section & 10’F
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC ACT 3-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Onan 6KW HYD
  • Camera System: FRC, Inview 360HD w/ Built-In DVR
  • 12V FireTech 3-Piece Brow Light
  • Whelen Freedom IV 72” Light Bar
  • Rigid D2 Aerial Spotlights
  • Whelen 600 Warning Light
  • Whelen Traffic Advisor
  • 240V FR Focus Tele Light
  • Opticom

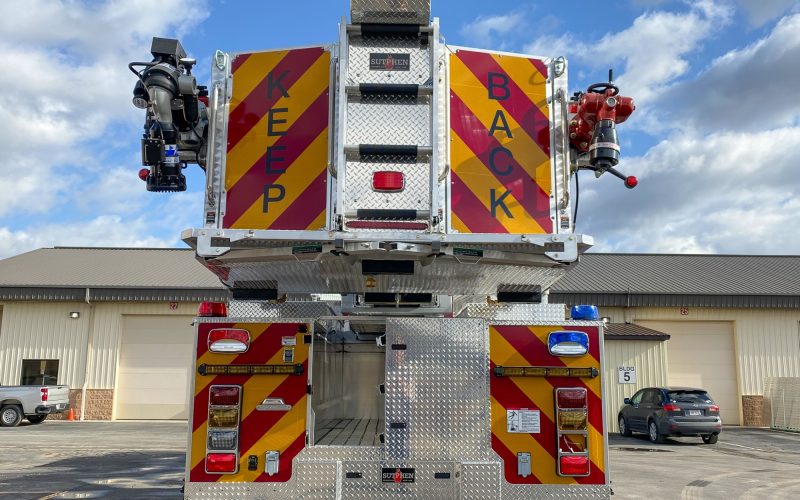

MONITOR:

  • Driver Side Monitor: TFT Monsoon RC, Electric w/ Elec. VUM, (2) Panel Controllers & (1) Wireless Controller, Includes TFT Master Stream 1250 GPM Electric Nozzle
  • Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
  • Officer Side Nozzle: Akron 5160 Auto
