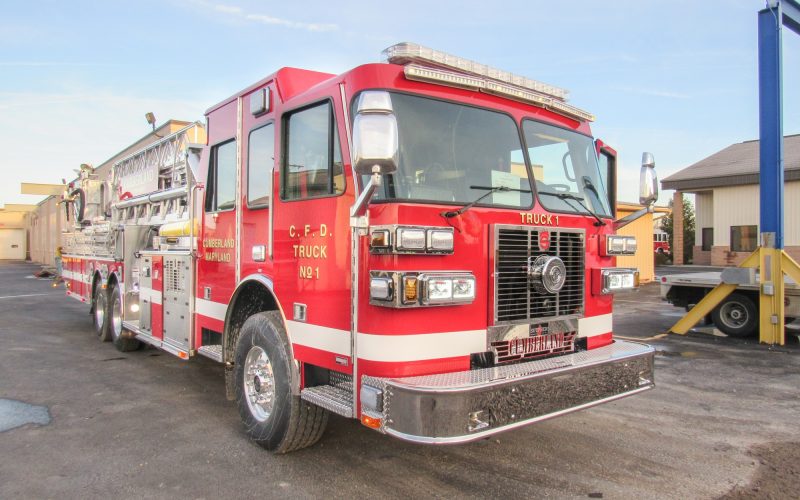

Delivery Date:
12/10/2021
Department Name:
Cumberland Fire Department
Department City / State:
Cumberland, MD

Sutphen Corporation – HS #6814

Dealer – FAST – Fire Apparatus Service Tech

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 7”

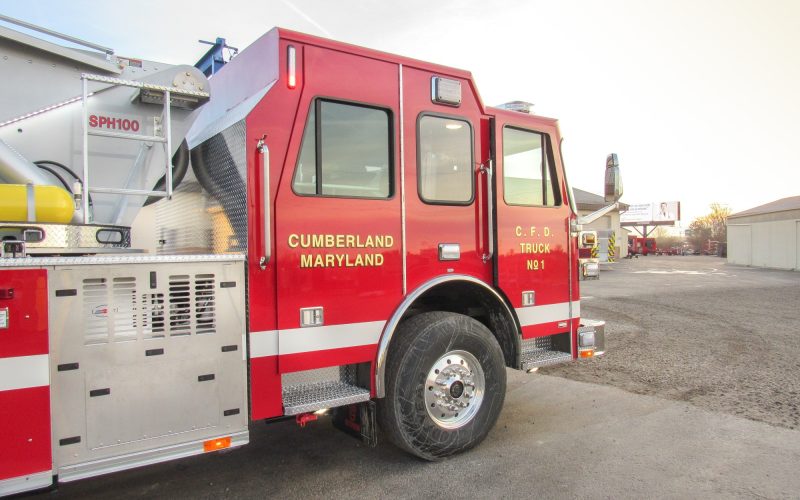

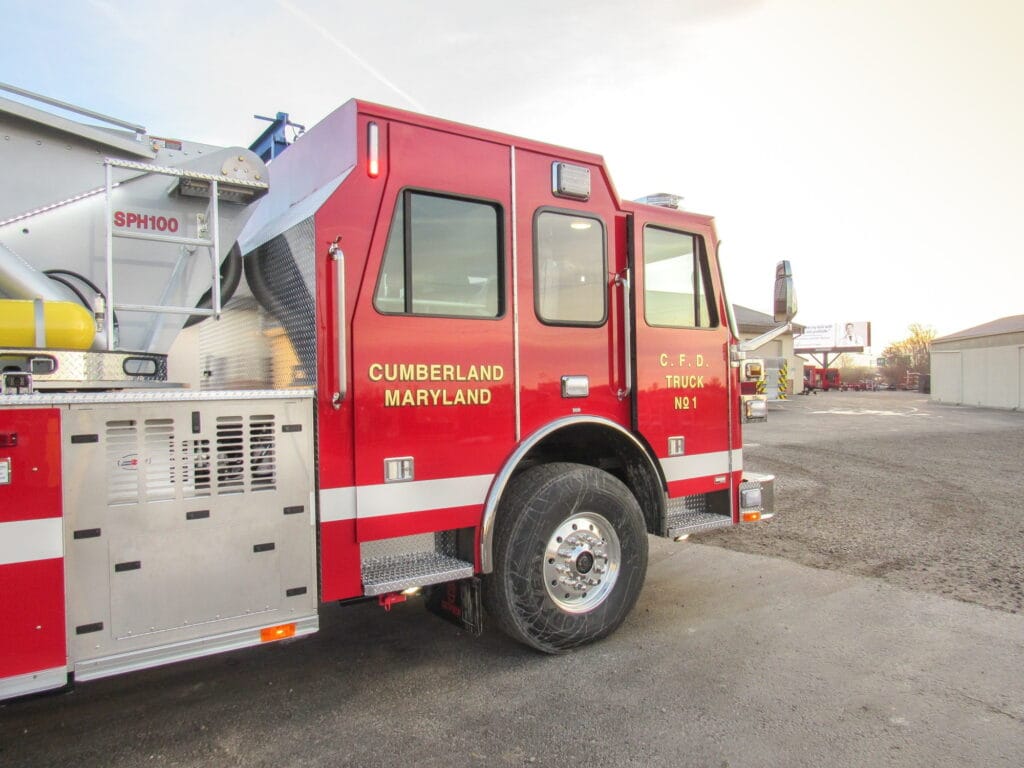

CHASSIS:   Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15 600HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

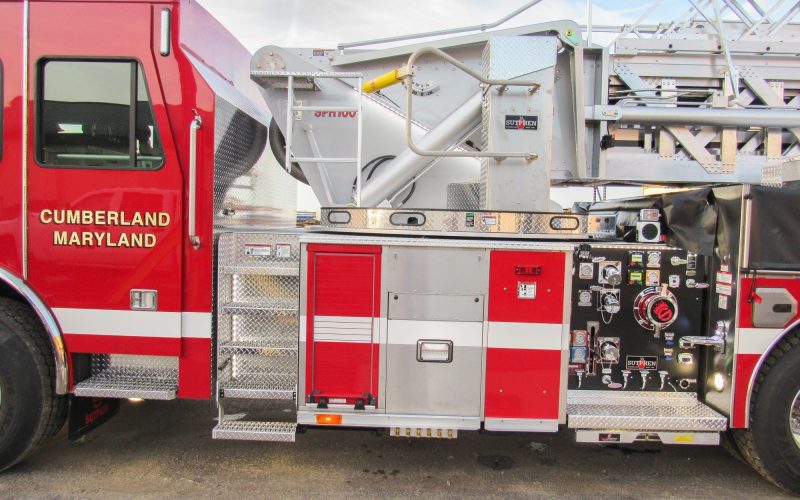

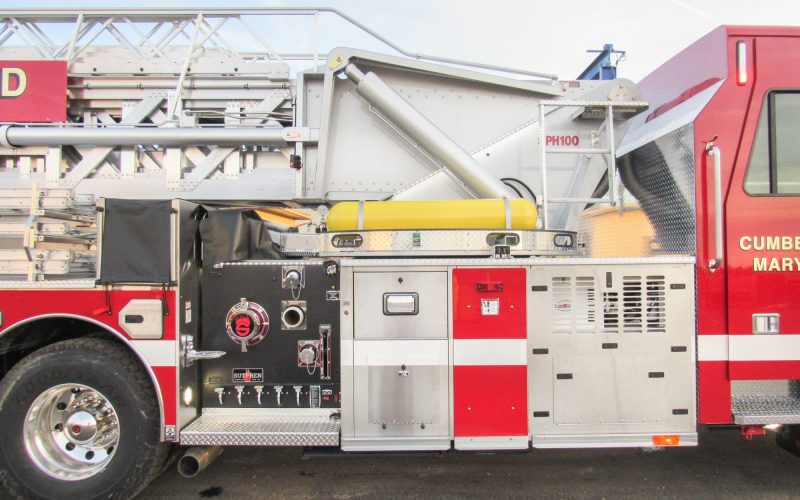

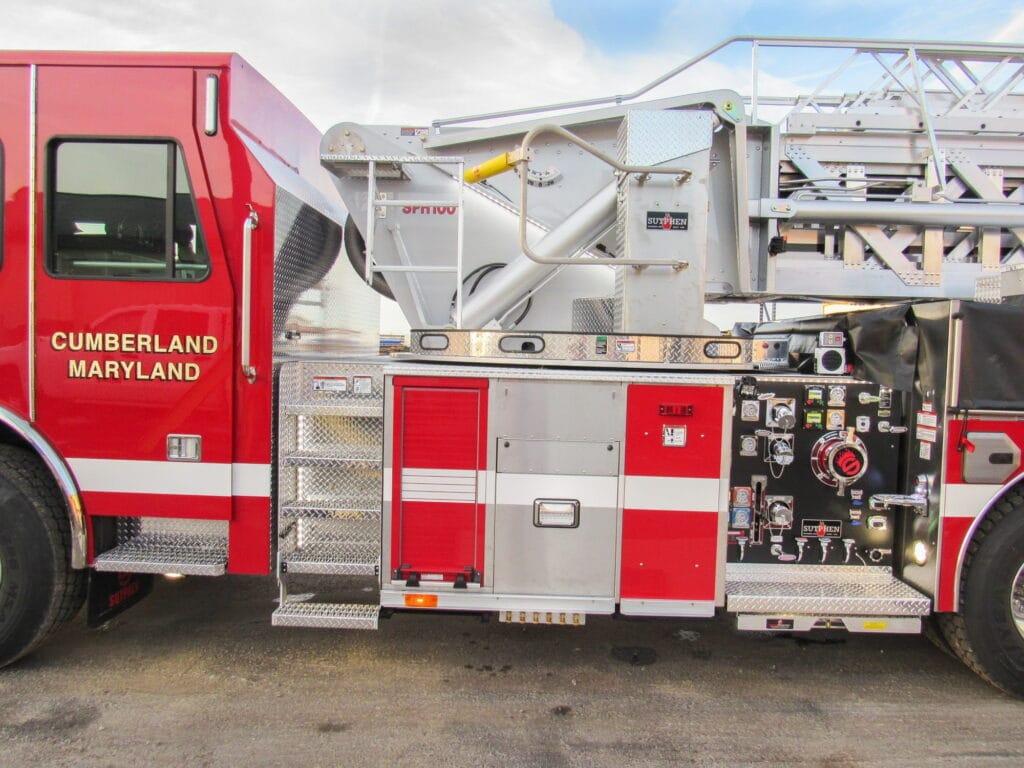

PUMP:                  Waterous

  • CSU-1750 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 4” Right, (1) 2 ½“ Left Side of Hose bed
  • Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                   Sutphen

  • SPH Mixed Roll up and Hinged Compartment Doors

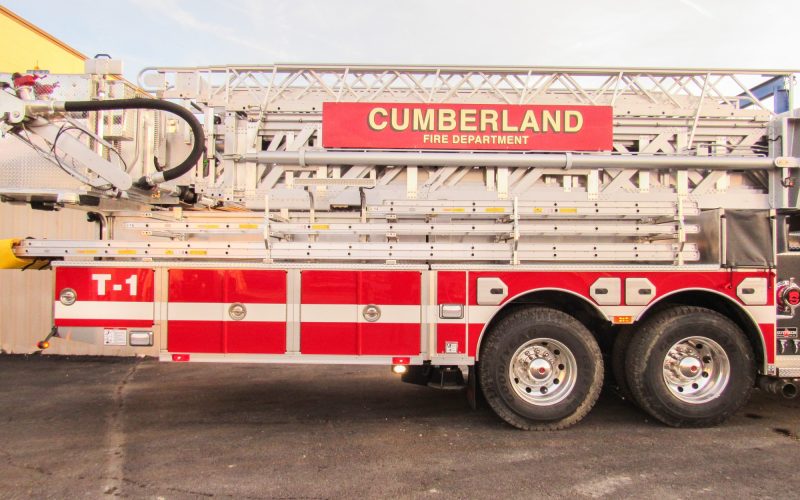

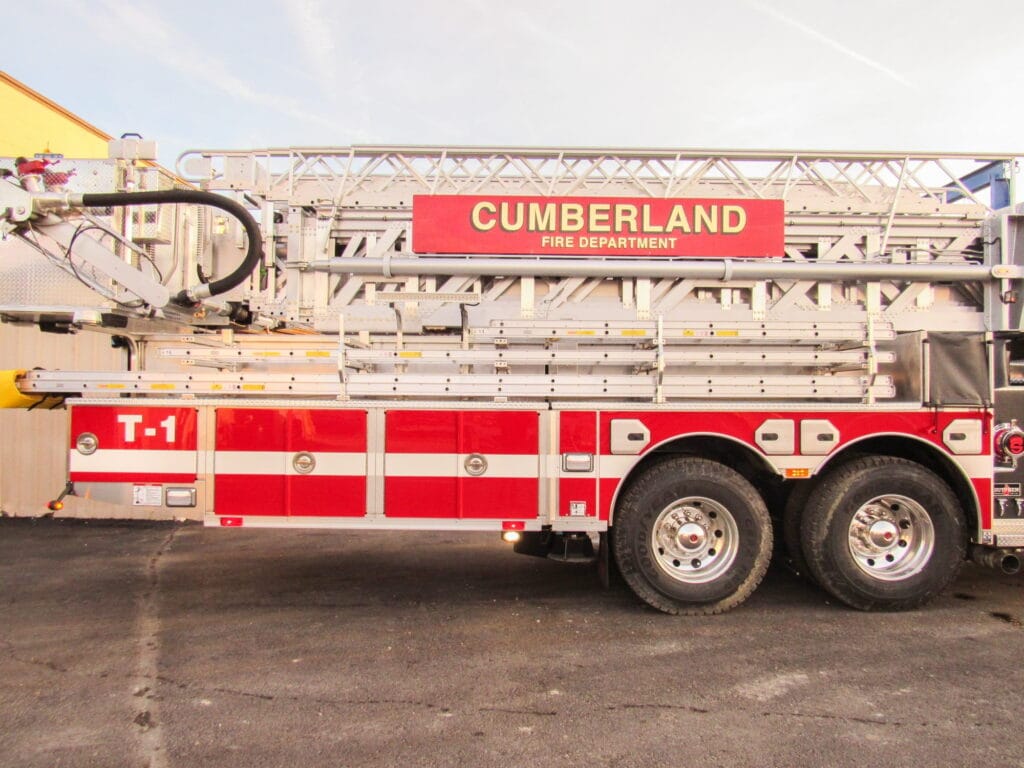

  • Alco-Lite Ladder Package: Body Right Side: (1) 35’ 2 Section, 18’ Roff, 14’ 2 Section Fresno Ladder Chute: (1) 28’ 2 Section, 16’ Roof, 10’ Folding Ladder Through Ladder Chute
  • Body: SPH-7, LEFT 56″ H / RIGHT 48″ H

ADDITIONAL EQUIPMENT:

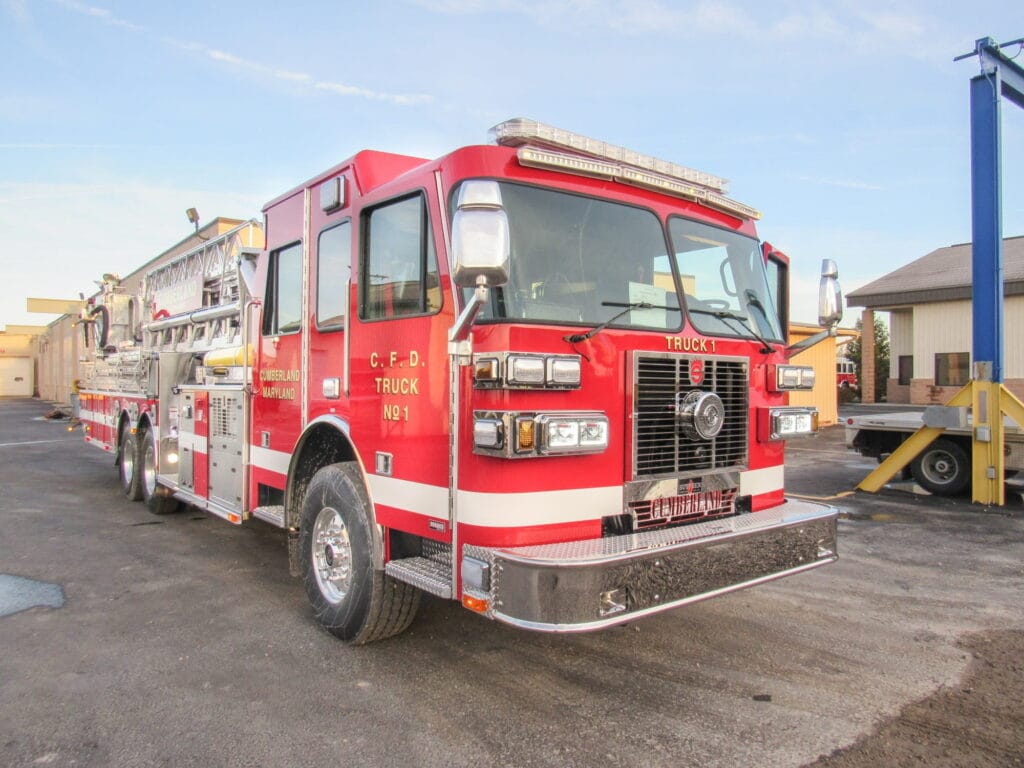

  • 12” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Two Cameras
  • Intercom System: FRC ACT 2-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Smart Power, 10KW HYD
  • Whelen Freedom IV 72” LED Lightbar
  • Whelen TAL85 Traffic Advisor
  • Firetech 72” 12V Brow
  • FR Spectra 240V Scene
  • FR Spectra 240V Tele

MONITOR:

  • Driver Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
