Delivery Date:
08/19/2021
Department Name:
Coweta County Fire Department
Department City / State:
Newnan, GA

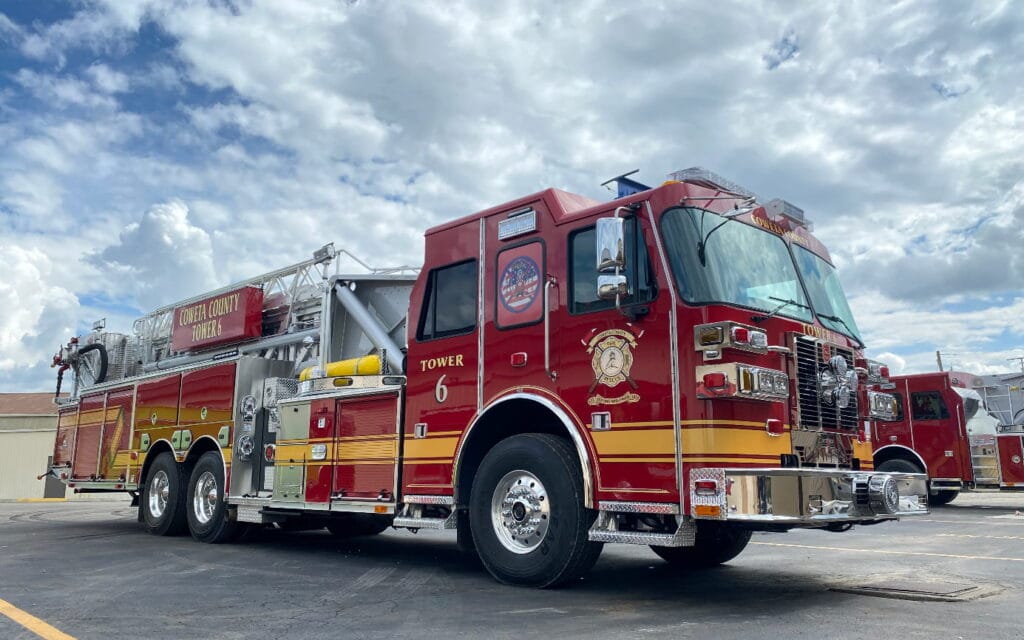

Sutphen Corporation – HS #6760

Dealer – Williams Fire Apparatus

WHEELBASE: 230”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 5”

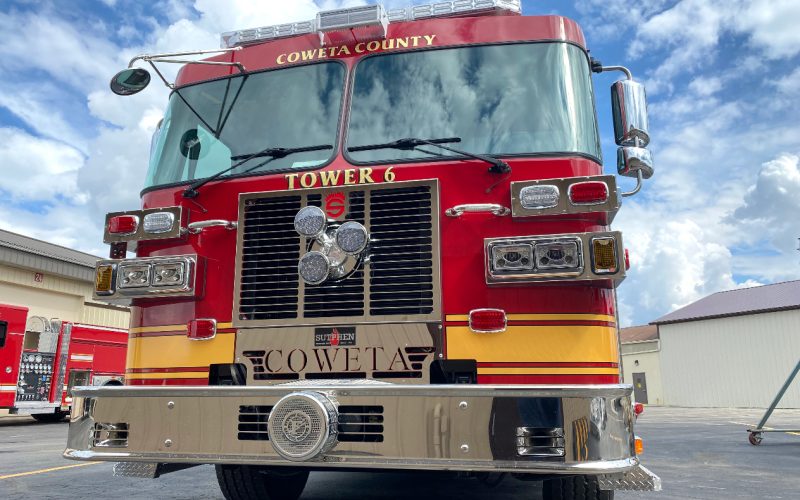

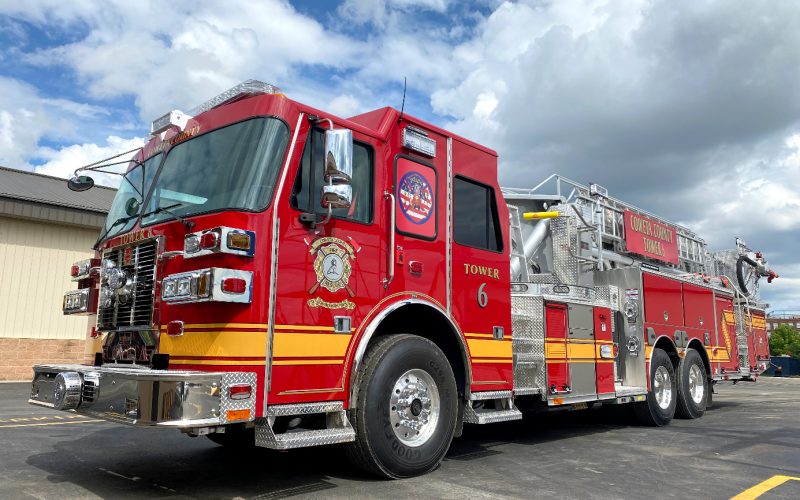

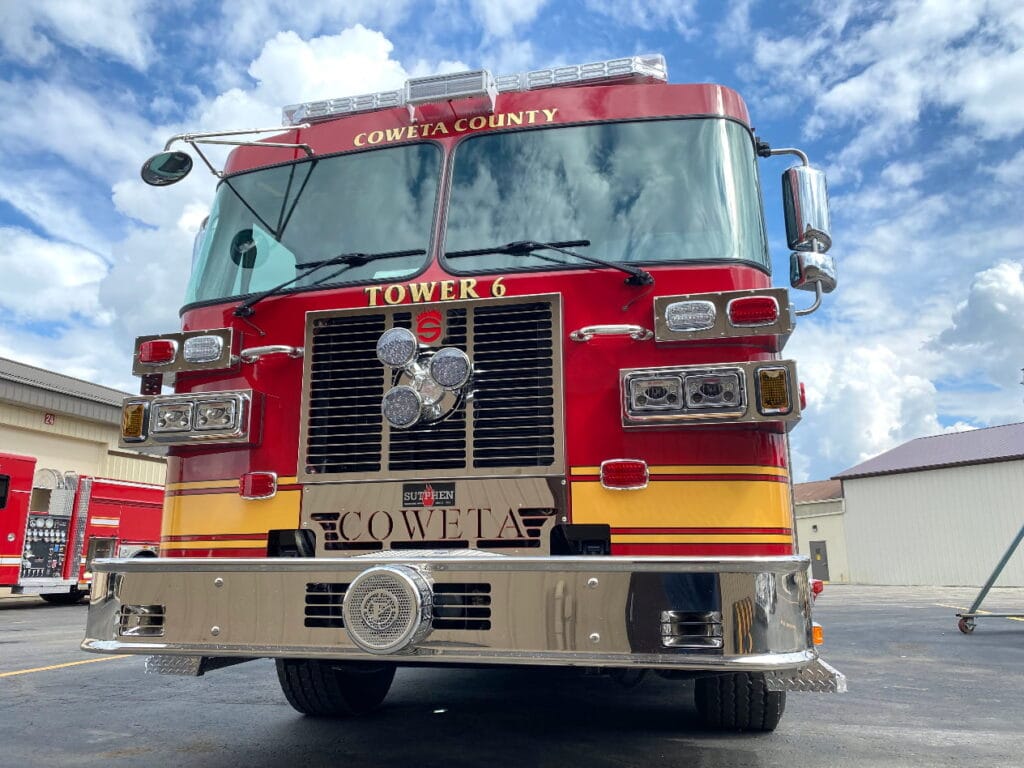

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12 500HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison EVS4500

PUMP:                 No Pump/No Tank

BODY:                  Sutphen

  • HuckBolted #304 Stainless Steel
  • Mixed Hinged and Roll-Up Compartment Doors
  • Over 280 cu. ft. Total Compartment Space
  • Duo-Safety Aerial Complement: 193’ – 4’ Wall Ladder, 8’ Wall Ladder, 14’ Roof Ladder, (2) 16’ Roof Ladder, 18’ Roof Ladder, 20’ Roof Ladder, 24’ 2-Section Ladder, 28’ 2-Section, 35’ 2-Section and 10’ Folding
  • Body: SPH-3, LEFT 56″ H / RIGHT 56″H

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Front Bumper Mount
  • Camera System: Voyager 2
  • Intercom System: FRC ACT 2-Station

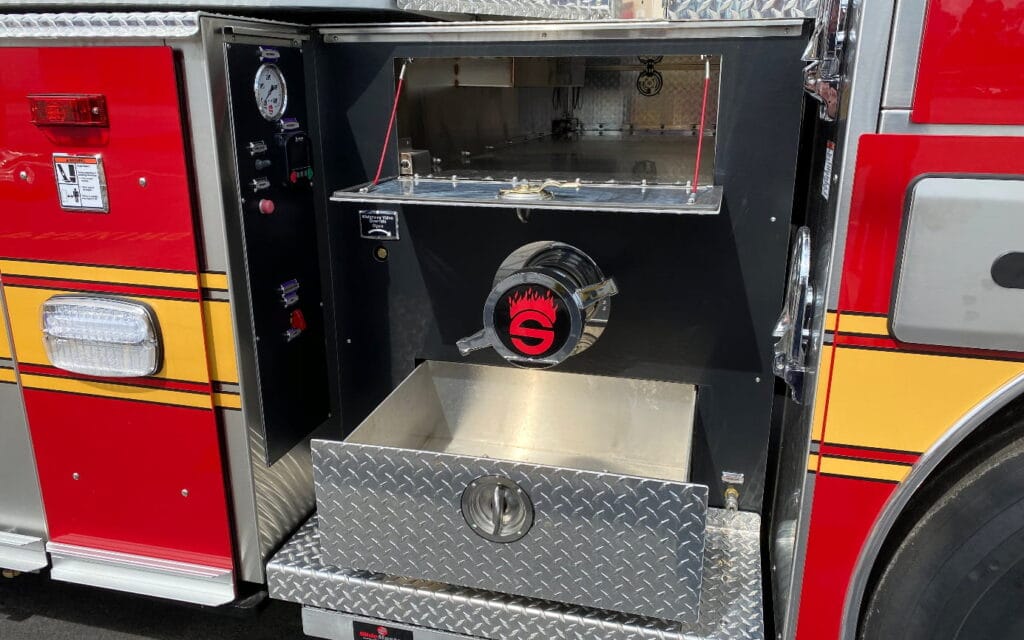

  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Onan 6KW
  • 19’ Little Giant Ladder
  • Roto-Ray Warning Light
  • Whelen Freedom IV 72” Light Bar
  • Whelen Pioneer 12V Brow Light
  • Whelen M6V2 Cornering Light
  • Whelen Pioneer 120V Tele Light
  • Whelen M9 Scene Light

MONITOR:

  • Driver Side Monitor: Akron 3483 Stream Master2, Manual, 1250 GPM
  • Driver Side Nozzle: Akron 5160 Auto
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Monitor: Akron 2499 & 2488 Pipe
