Delivery Date:
08/14/2019
Department Name:
Community Fire Protection District
Department City / State:
Overland, MO

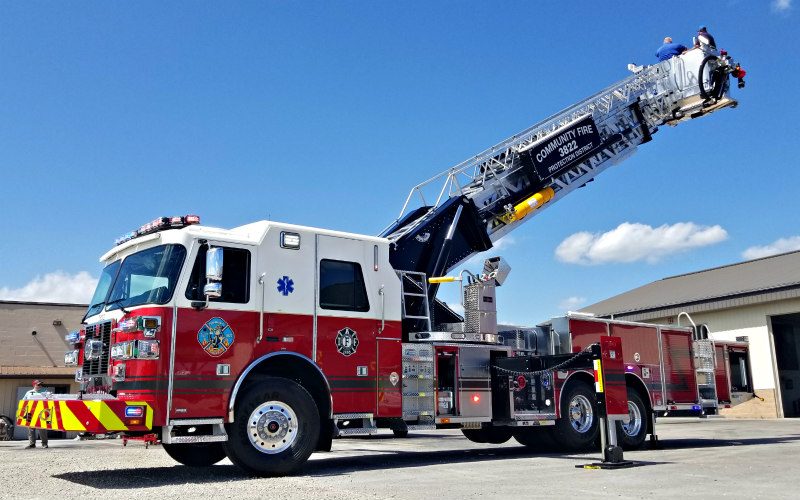

Sutphen Corporation – HS #6454

Dealer – Cashion Fire Equipment

WHEEL BASE: 247”

TRAVEL HEIGHT: 11’ – 8”

TRAVEL LENGTH: 48’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 25,500 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

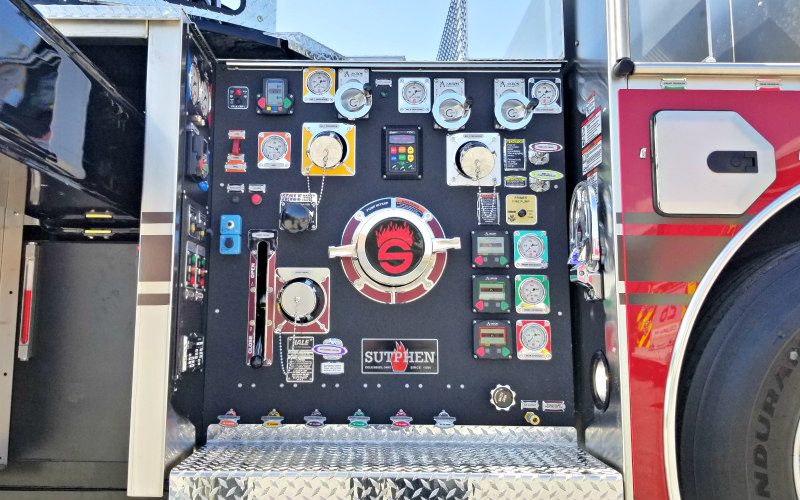

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left; (1) 4” Right; (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslays: Two Crosslays, 2” Valve-Piping 1 ½” Swivel
  • 400-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • ROM Roll-Up Compartment Door
  • Over 287 cu. ft. of Total Compartment Space
  • Alco-Lite Ladder Compliment (115’: 14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ F)
  • SPH-3: Left 56” High/ Right 56” High

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel, Painted
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 175’ (2)
  • 8KW Onan Generator
  • Camera System for Eskey
  • FRC ACT 2-Station Intercom System
  • Alco-Lite 10’ Attic EXT Ladder
  • Firetech 3-Piece 12V LED Brow Light
  • Firetech Mini Scene FT-MB-18-TR-FT
  • Firetech Boom Tracking Lights
  • Power Arc Lightbar
  • Whelen 9SCOENZR Scene Lights

MONITOR:

  • Drive Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3482 Stream Master 2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
