Delivery Date:
10/16/2020

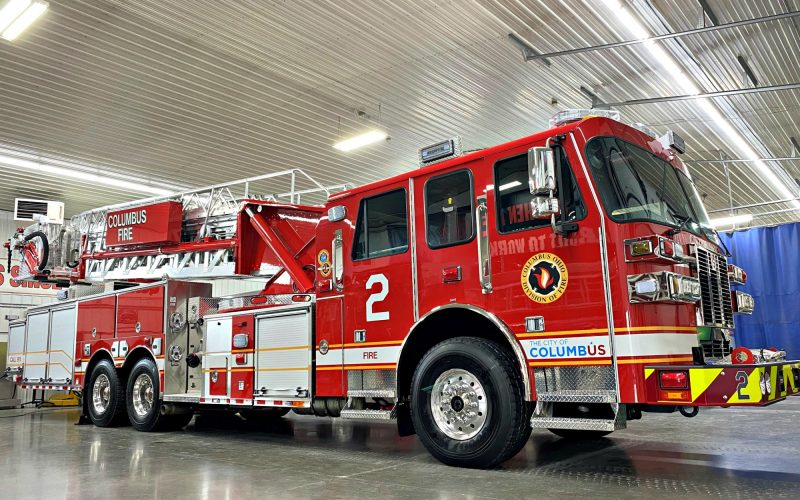

Department Name:
Columbus Division of Fire
Department City / State:
Columbus, OH

Sutphen Corporation – HS #6655

Dealer – Heritage Fire Equipment

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’ – 4”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a Flat Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 2 ½” Right
  • No Water Tank

BODY:                  Sutphen

  • Mixed Amdor Roll-Up and Hinged Compartment Doors
  • Duo-Safety Ladder Package (209’: 10’ Folding; 16’ Roof; 10’ Folding; 12’ 2-Section; 14’ Roof; 16’ Roof; 20’ 2-Section; 24’ 2-Section; 28’ 2-Section; 35’ 2-Section)
  • Custom Ladder Chute
  • Body: SPH-3, Left 56” H/Right 56” H

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper
  • Federal Q2B Siren, Recessed in Driver’s Side Bumper
  • Camera System: Brigade Backeye 360
  • Generator: Harrison MPC, 30KW Hydraulic
  • Hannay Electric Cord Reed, 200’ (2)
  • Intercom System: FRC ACT 2-Station
  • Whelen Freedom IV 21” LED Lightbars
  • Whelen M9 LED Scene Lights
  • FRC Spectra 12V LED Brow
  • FRC Spectra 12V LED Scene
  • FRC Spectra 240V LED Scene Mounted Under the Platform (2)
  • FRC Spectra 240V LED Tele

MONITORS:

  • Driver Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3473, Gemini Manual 1000 GPM
  • Officer Size Nozzle: Akron 5160 Auto
