Delivery Date:
10/19/2021
Department Name:

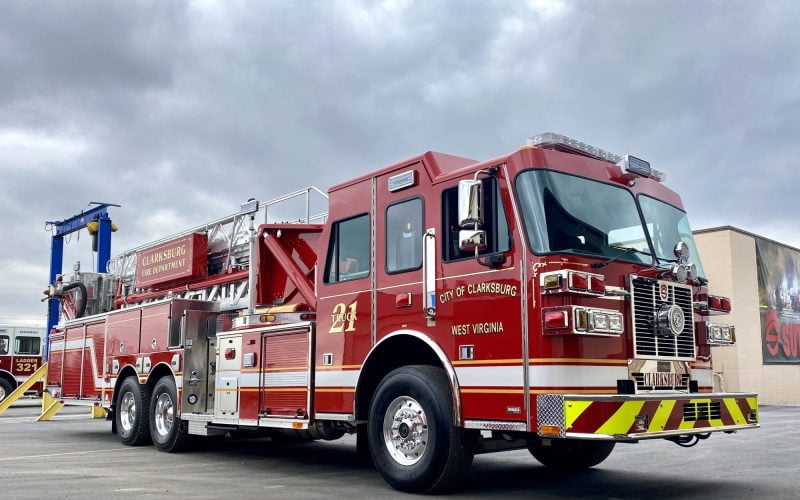

Clarksburg Fire Department
Department City / State:
Clarksburg, WV

Sutphen Corporation – HS #6794

Dealer –  Heritage Fire Equipment

WHEELBASE: 230”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab w/ a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12 500HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Waterous

  • CSU-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 2 ½” Right, (1) 3” Right
  • Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • HuckBolted #304 Stainless Steel
  • SPH Mixed Roll up and Hinged Compartment Doors
  • Duo-Safety Ladder Compliment: (115’: (1) 14’ Combo; (2) 16’ Roof; (1) 24’ 2-Section; (1) 35’ 2-Section; & (1) 10’ Folding
  • Body: SPH-3, LEFT 56″ H / RIGHT 56″ H

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Backeye 360
  • Intercom System: FRC ACT 2-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Harrison, 10KW HYD
  • Whelen Freedom IV 72” LED Lightbar
  • Whelen TAL85 Traffic Advisor
  • FR Spectra 12V Brow
  • FR Spectra 12V Scene
  • FR Spectra 240V Tele

MONITOR:

  • Driver Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
