Delivery Date:
04/28/2023
Department Name:
City of Lorain Fire Department
Department City / State:
City of Lorain, OH

Dealer –  Herb Fire

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Delco Remy, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

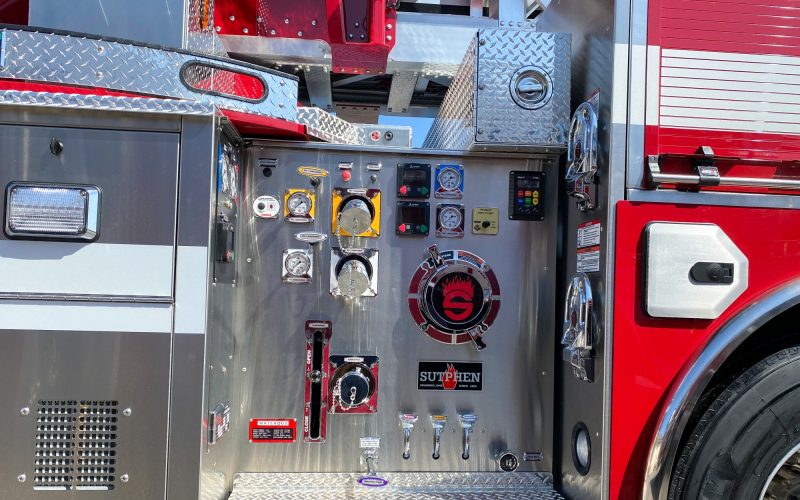

PUMP:                 Waterous

  • CSU-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right

BODY:                  Sutphen

  • Huckbolt #304 Stainless Steel
  • Amdor Roll Up Compartment Doors
  • Over 325 cu ft. Total Compartment Space
  • Alco-Lite Ladder Package: 115’: 14’; 16’; 16’; 24’ 2-Section; 35’ 2-Section & 10’F
  • Body: SPH-3, Left 56” H / Right 56” H

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC ACT 2-Station
  • Hannay Electric Cord Reel, 175’ (2)
  • Generator: Smart Power 6KW HYD
  • Camera System: Brigade, Backeye 360 Camera System
  • Whelen Freedom IV 72” Lightbar
  • 12V FireTech 3-Piece Brow Light
  • 12V FireTech Aerial Spotlights
  • 240V FR Spectra Tele Lights
  • 240V FR Spectra Scene Lights
  • 12V FireTech Guardian Elite Scene Light
  • Whelen L31 Warning Beacons

MONITOR:

  • Driver Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
