Delivery Date:
04/01/2021
Department Name:
Alabama Fire Department
Department City / State:
Alabaster, AL
Truck Type:

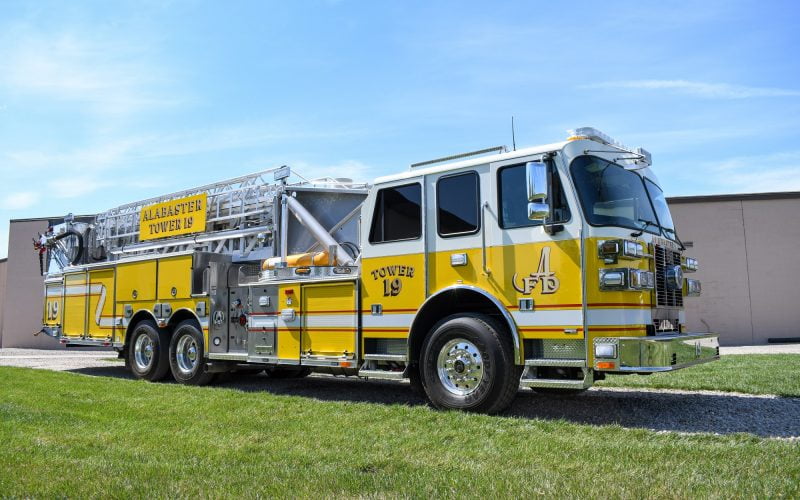

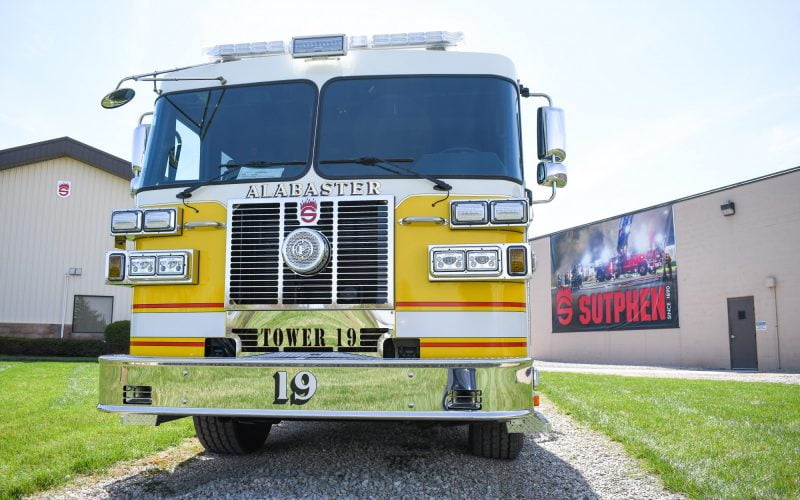

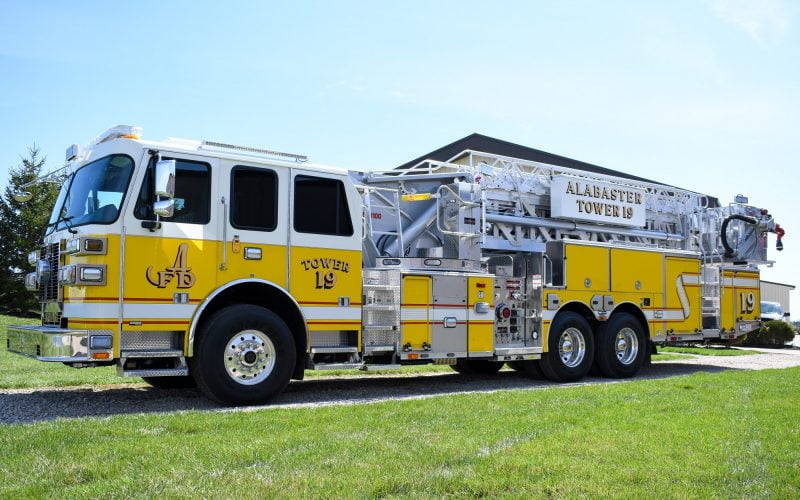

Sutphen Corporation – HS #6709
Dealer – Williams Fire Apparatus
WHEELBASE: 230”
TRAVEL HEIGHT: 11’ – 6”
TRAVEL LENGTH: 46’ – 1”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab w/ Flat Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 52,000 lbs
- Engine: Cummins X 12 500HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison EVS4500R

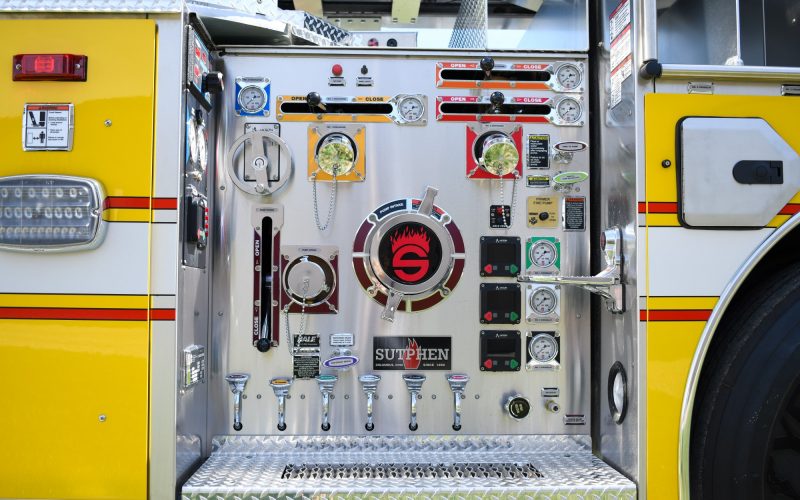

PUMP: Hale
- QMAX-2000 GPM 6” Suction, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right
- Crosslay: (1) 2 ½” w/ 2 ½” Swivel, (2) 2” w/ 1 ½” Swivel
- 300-Gallon Water Tank

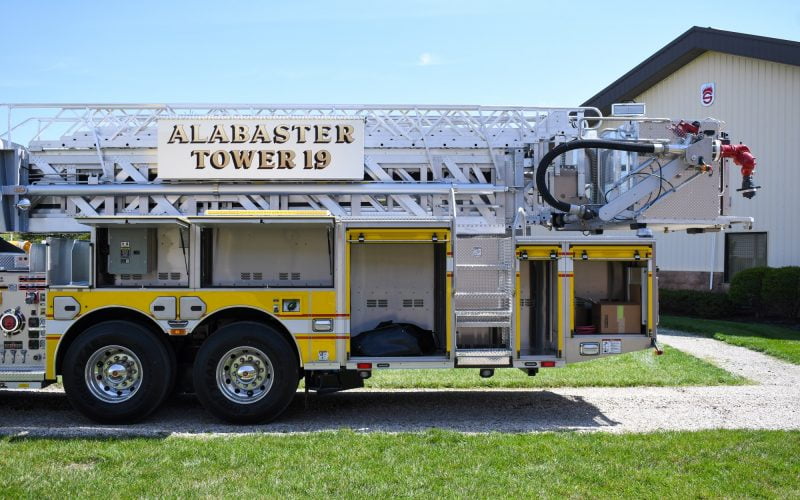

BODY: Sutphen
- Mix Roll-Up and Hinged Compartment Doors
- 49 cu. ft. Total Compartment Space
- Alco-Lite (SPH): 14’ Combo, 14’ Roof Ladder, 16’ Roof Ladder, 28’-2 Section, 35’-2 Section
- Body: SPH-3, LEFT 56″ H / RIGHT 56″H
ADDITIONAL EQUIPMENT:
- 12” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: Voyager 2
- FRC ACT 2-Station Intercom System
- Whelen Freedom IV 72” LED Lightbars
- FR Spectra 12V LED Brow
- Whelen 600 Warning Lights
- FRC CLA100-A49 LED Scene Light
- FR 240V LED TELE
- UNITY P46WLC Flood LED Lights
MONITOR:
- Officer Side Monitor: Akron 3483 Stream Master 2, Manual 1250 GPM
- Driver Side Monitor: Akron 3482 Stream Master2, Manual, 1250 GPM
