Delivery Date:
09/12/2019
Department Name:
Cary Fire Protection District
Department City / State:
Cary, IL

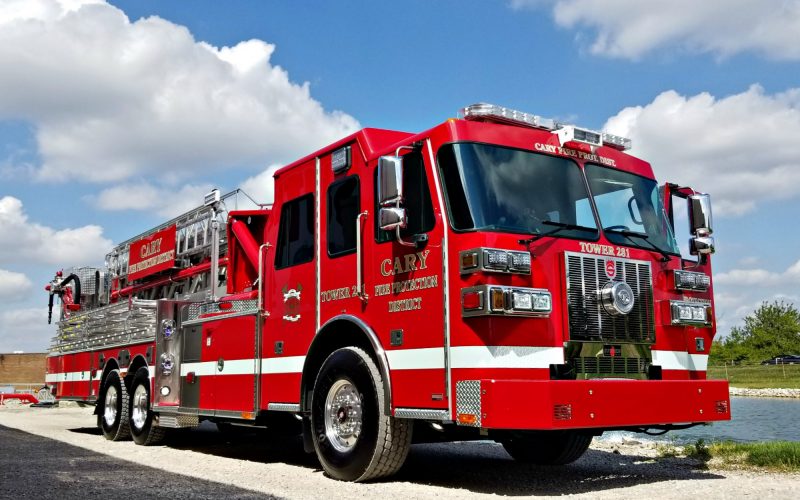

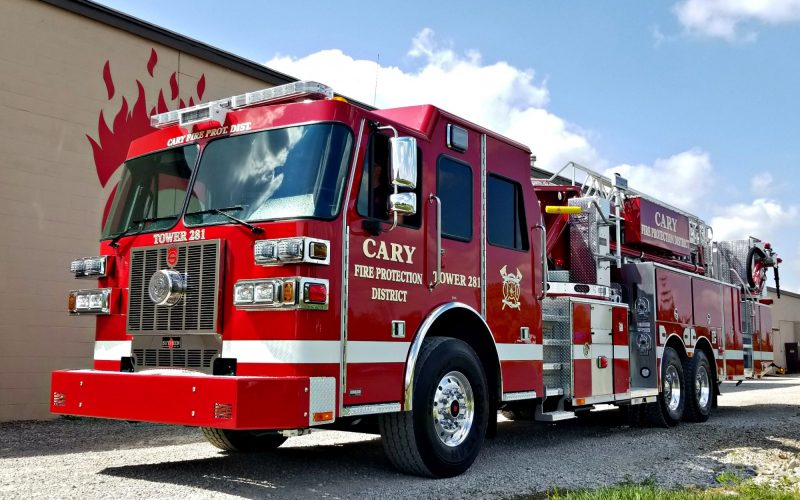

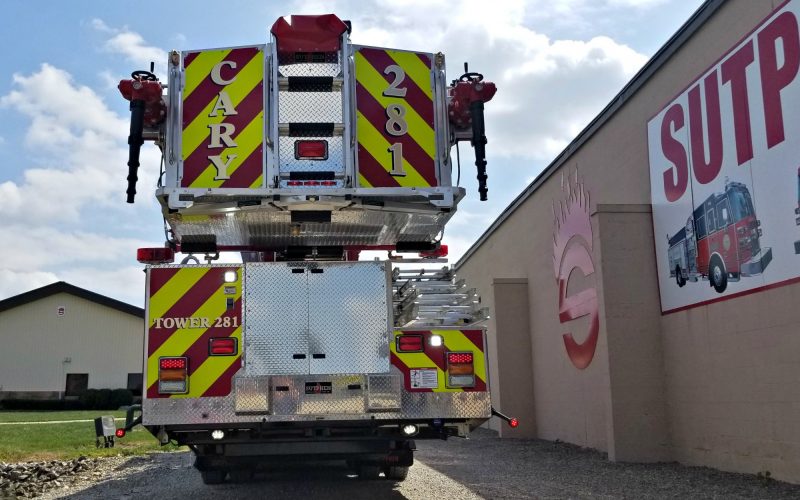

Sutphen Corporation – HS #6391

Dealer – Legacy Fire Apparatus

WHEEL BASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 46’ – 7”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Niehoff, 360 AMP
  • Transmission: Allison Gen 5, EVS 3000

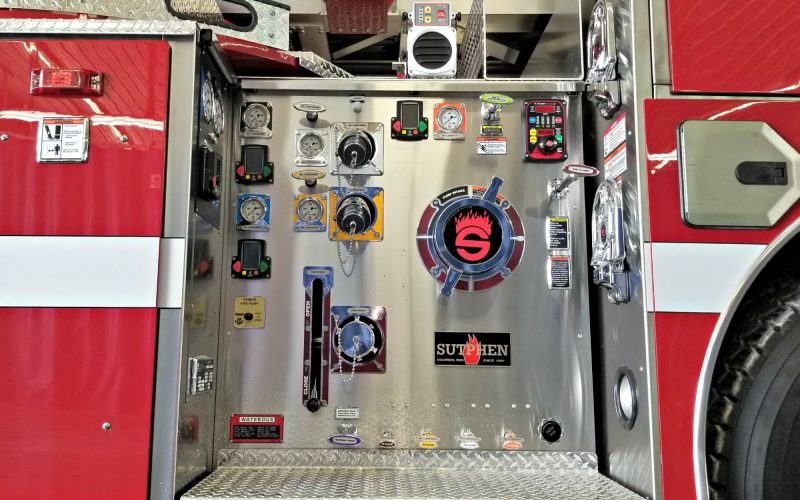

PUMP:                 Waterous

  • CSU-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left; (1) 3” Right; (1) 2 ½” Right
  • Crosslays: (1) 2” Crosslay, with 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Hinged Compartment Door
  • Over 198 cu. ft. of Total Compartment Space

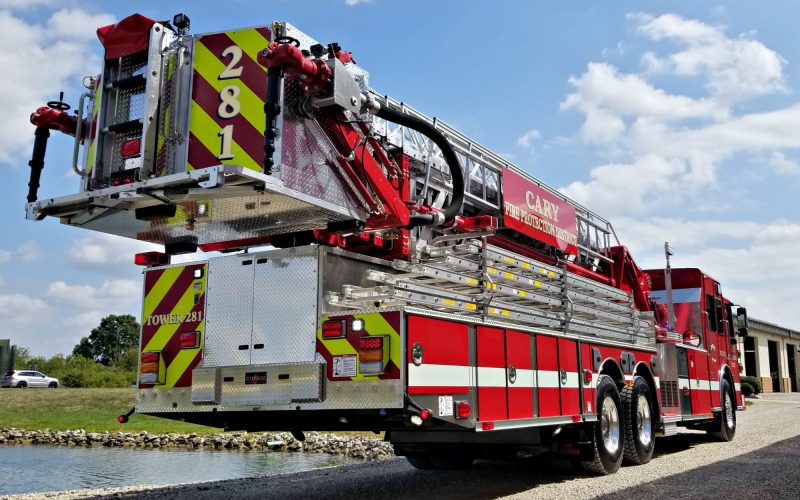

  • Special Ladder Package, Cary Ground Ladders (16’ Roof, 16’ Roof, 18’ Roof, 24’ 2-Section, 35’ 2-Section, 10’ Attic)
  • Custom Body; SPH-8: Left 56” High/ Right 28” High

ADDITIONAL EQUIPMENT:

  • 12” Bumper, Formed Steel Channel, Painted
  • Federal Q2B Siren, Grille Mount
  • Vanner VLT Series 3000-Watt Inverter
  • Intec, Single Camera, Camera System
  • Whelen Freedon IV (12) LED Lightbar
  • Whelen PFH2 12V LED Brow
  • Whelen 900 LED Scene
  • FRC Spectra 120V LED Tele
  • Pike Pole Storage Tubes, 3 Each Side

MONITOR:

  • Drive Side Monitor: Akron 3473, Gemini Manual 1000 GPM
  • Driver Side Nozzle: TFT MST-4NJ Stacked Tips with XF-SS10 Stream Straightener
  • Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
  • Officer Side Nozzle: TFT MST-4NJ Stacked Tips with XF-SS10 Stream Straightener
