Delivery Date:
04/22/2020
Department Name:
Cardinal Joint Fire District,
Department City / State:
Canfield, Ohio

WHEELBASE: 236”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 47’ – 1”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

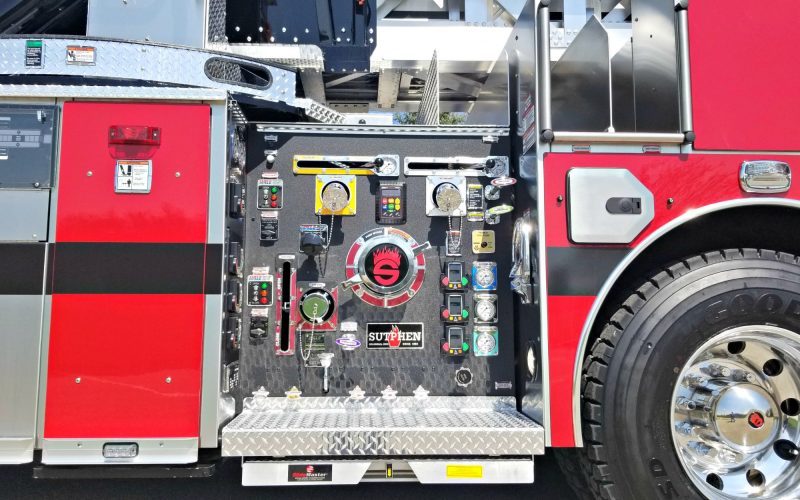

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left; (1) 4” Right; (1) 2 ½” Right; (1) 2 ½” Front Bumper
  • Crosslays: (1) 2 ½” Crosslay, (1) 2 ½” Swivel & (2) 2” Crosslays with 1 ½” Swivel
  • 300-Gallon Water Tank

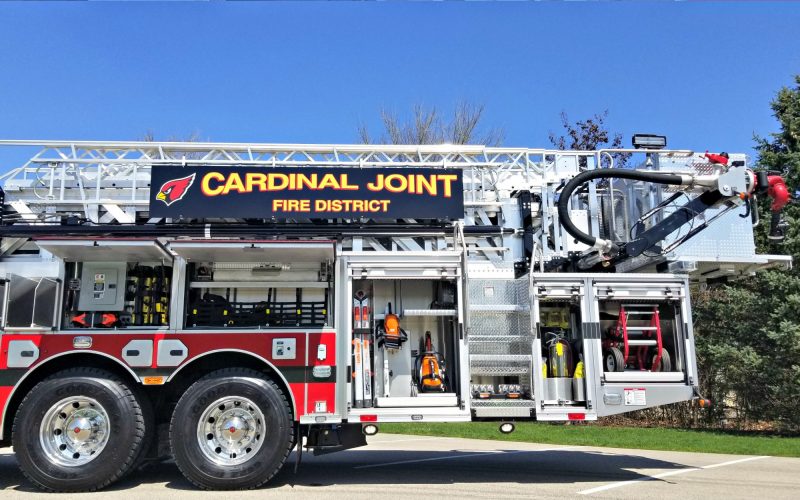

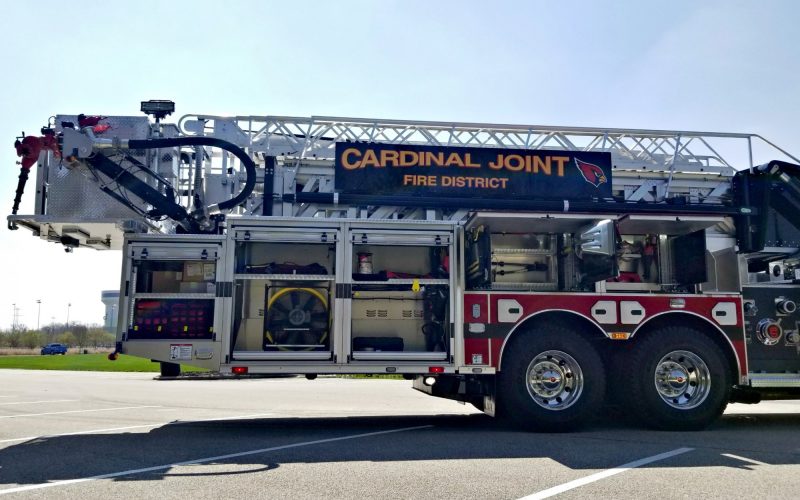

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Door
  • Over 287 cu. ft. of Total Compartment Space
  • Special Ladder Package, Alco-Lite, (115’: 14’, 16’, 16’ Roof, 24’ 2-Section, 35’ 2-Section, and 10’ Folding)
  • Body: SPH-3: Left 56” High/ Right 56” High

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel, Bumper Extension
  • High Rail Cable Track
  • Federal Q2B Siren, Grille Mount
  • 10KW Smart Power Generator
  • Hannay Electric Cord Reel, 175’ (1)
  • David Clark, 6-Position Intercom System
  • Camera System: Brigade, Backeye 360 Camera
  • Roto-Ray, Warning Light
  • Whelen LED Lightbar IV 72”
  • Whelen PFH1 Brow light
  • Whelen M9V2 LED
  • Whelen Pioner PfP2AC
  • Whelen M6V LEDs
  • FRC Spectra 120V LED Scene

MONITOR:

  • Drive Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
