Delivery Date:
11/19/2020
Department Name:
Canton Fire Department
Department City / State:
Canton, OH
Truck Type:
Sutphen Corporation – HS #6644
Dealer – Herb Fire Equipment
WHEELBASE: 236”
TRAVEL HEIGHT: 11’ – 6”
TRAVEL LENGTH: 46’ – 7”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 52,000 lbs
- Engine: Cummins X 12, 500 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS 4000

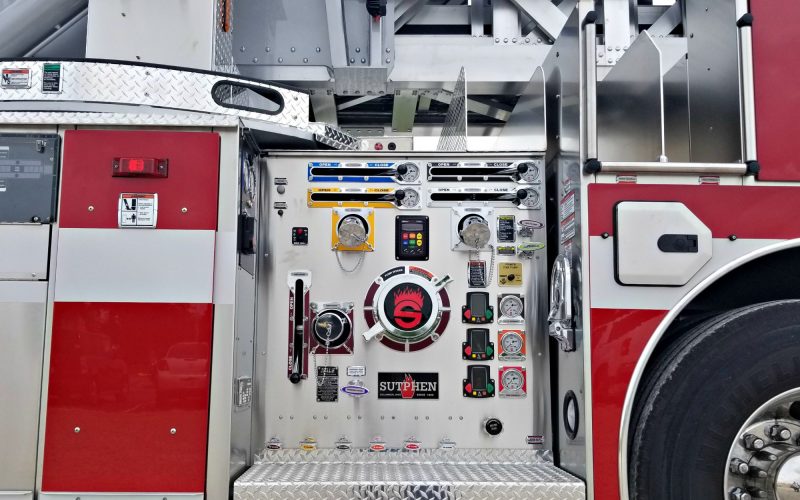

PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
- Crosslays: (1) 2 ½”, 2 ½” Swivel & (2) 2” w/ 1 ½” Swivel
- 300-Gallon Water Tank
BODY: Sutphen
- Huck Bolted #304 Stainless Steel
- Amdor Roll-Up Compartment Doors
- Over 280 cu. ft. Total Compartment Space
- Alco-Lite (115’: 14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section & 10’ Folding)
- Body: SPH-3, Left 56” H / Right 56” H
ADDITIONAL EQUIPMENT:
- 12” Polished Stainless Steel Bumper Extension
- Camera System: Brigade, Backeye 360 Camera System
- Generator: 10KW Smart Power
- Federal Q2B Siren, Grille Mount
- Hannay Electric Cord Reel, 150’ (1)
- FireTech 3-Piece 72” LED Brow Light
- Whelen Freedom IV (16) LED Lightbar
- FRC Spectra 240V LED Telelights
- FRC Spectra 240V LED Under Platform (2)
- FRC Spectra 12V LED Scenes
MONITORS:
- Driver Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
- Driver Side Nozzle: Akron 5160 Auto
- Officer Side Monitor: Akron 3483 Stream Master2, Manual 1250 GPM
- Officer Side Nozzle: Akron 2499 & 3488 Pipe
