Delivery Date:
09/27/2021
Department Name:
Belgium Cold Springs Fire Department
Department City / State:
Baldwinsville, NY

Sutphen Corporation – HS #6788

Dealer – Vander Molen Fire Apparatus

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a Flat Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 15 600HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

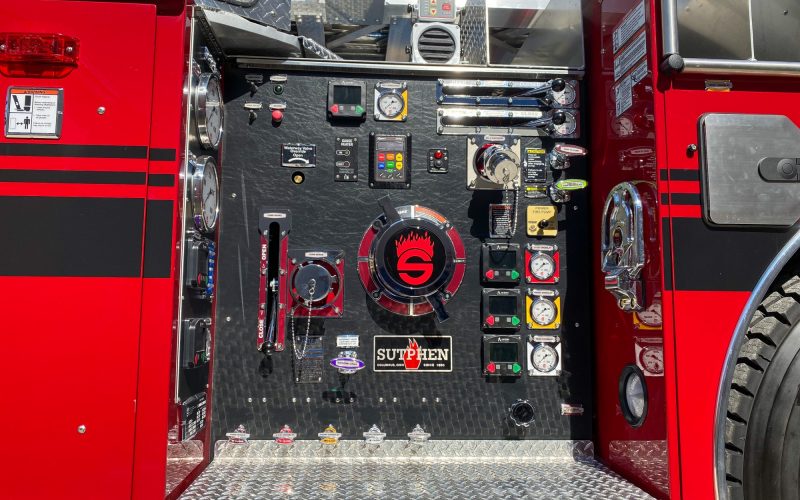

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper
  • Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • SPH Mixed Roll up and Hinged Compartment Doors
  • Nearly 250 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Compliment: (2) 28’ 2-Section; (2) 18’ Roof; (3) 16’ Roof; (1) 35’ 2-Section; (1) 10’ Folding; (1) 20’ Roof Ladder; 13’ Little Giant (1)
  • Body: SPH-1, LEFT 48″ H / RIGHT 48″ H

ADDITIONAL EQUIPMENT:

  • 18” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Two Camera
  • Intercom System: FRC ACT 3-Station
  • Hannay Electric Cord Reel, 150’ (2)
  • Generator: Harrison, 10KW HYD
  • Whelen Freedom IV 72” LED Lightbar
  • FireTech 3-Piece 72” 12V LED Brow
  • FireTech 12V Mini Brow Light
  • 240V Spectra Scene Lights
  • 240V Spectra Tele Lights

MONITOR:

  • Driver Side Monitor: Akron 3473 Gemini Manual 1000 GPM
  • Driver Side Nozzle: Akron 2499 & 3488 Pipe
  • Officer Side Monitor: Akron 3482 Stream Master 2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
