Delivery Date:
01/12/2017
Department Name:
Burlington Fire Department
Department City / State:
Burlington, NC

SPH 100 Aerial Platform (HS-5936)

WHEEL BASE: 236”

TRAVEL HEIGHT: 11’ 6”

TRAVEL LENGTH: 46’- 7”

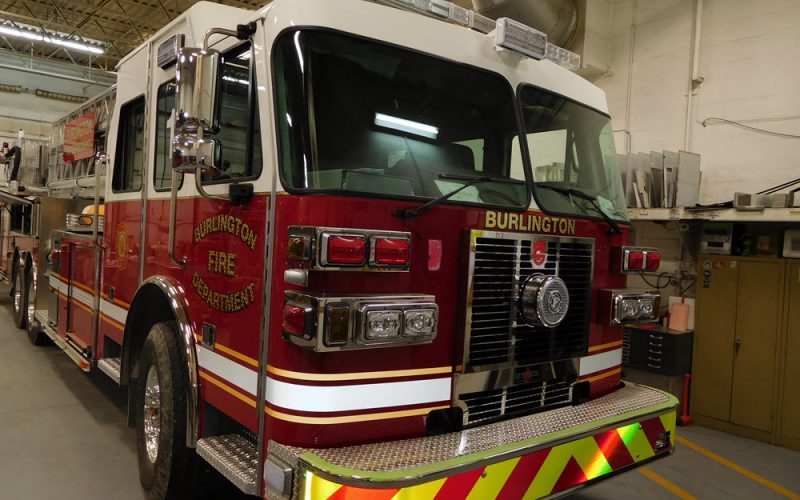

CHASSIS: Sutphen 62” cab with half 10” raised roof

  • Four-door, eight-person cab
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

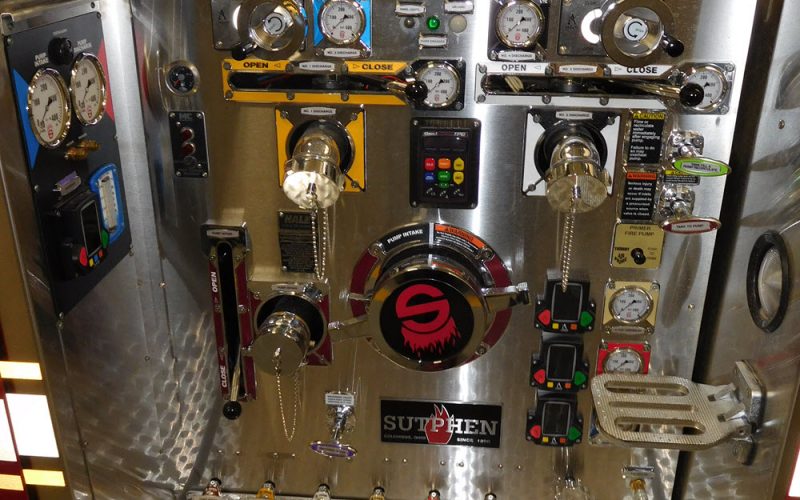

PUMP: Hale

  • QMAX- 1500 GPM
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right
  • 300-Gallon Water Tank

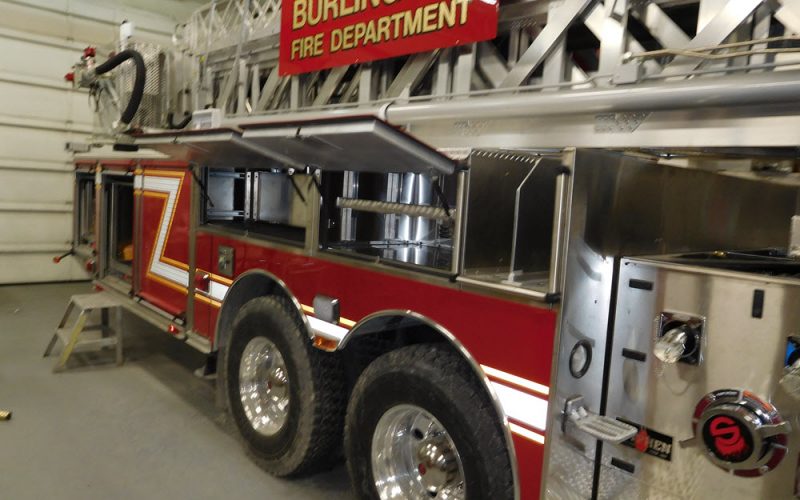

BODY: Sutphen

  • Stainless Steel
  • ROM Roll-up doors
  • 265 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Compliment
  • SPH, Left 48” H, Right 48” H

OPTIONAL EQUIPMENT:

  • Safety Vision Camera System
  • Communication System
  • Smart Power 10KW Generator
  • (2) Hannay Electric cord Reel, 200’
  • Federal Q2B
  • Parapet Ladder
  • Stokes Arms
  • Warning Lights, Whelen
  • Traffic Advisor, Whelen
  • 12” Bumper

MONITORS:

  • Driver Side Monitor: Akron 3482 Stream Master II Electric, 1250 GPM
  • Driver Side Nozzle: Akron 5177 Electric Nozzle
  • Officer Side Monitor: Akron 3473, Gemini Manual 1000 GPM
  • Officer Side Nozzle: Akron 2499 and 3488 Pipe
