Delivery Date:
12/20/2020
Department Name:
Oak Hill Fire Department
Department City / State:
Oak Hill, TX

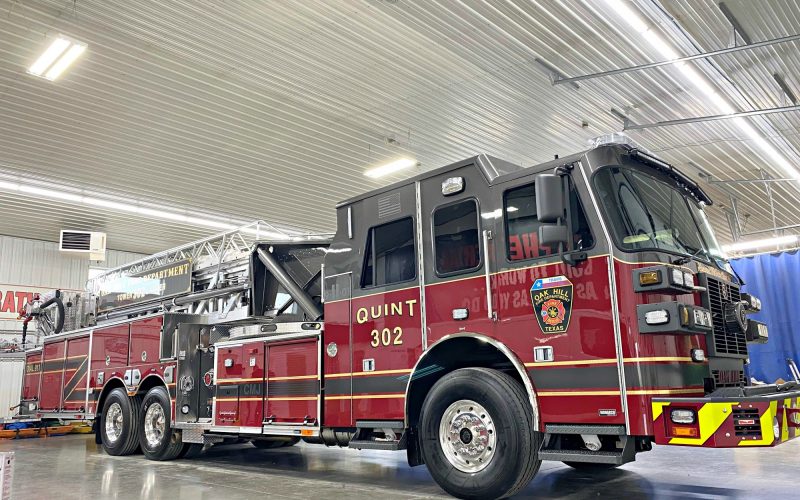

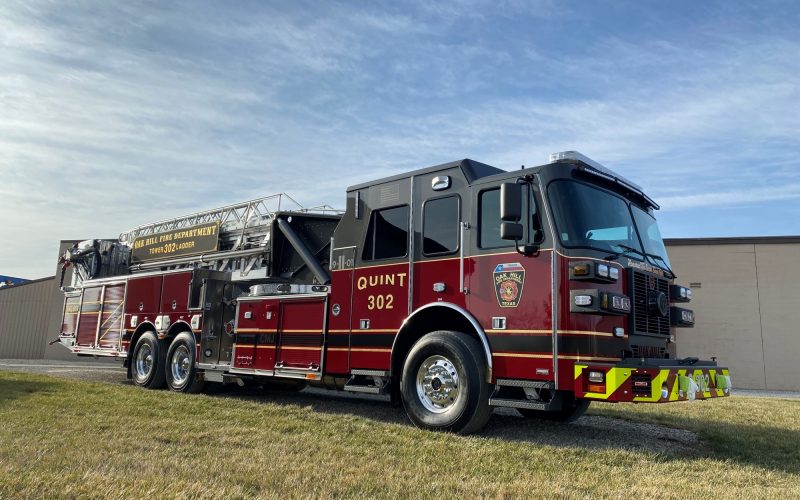

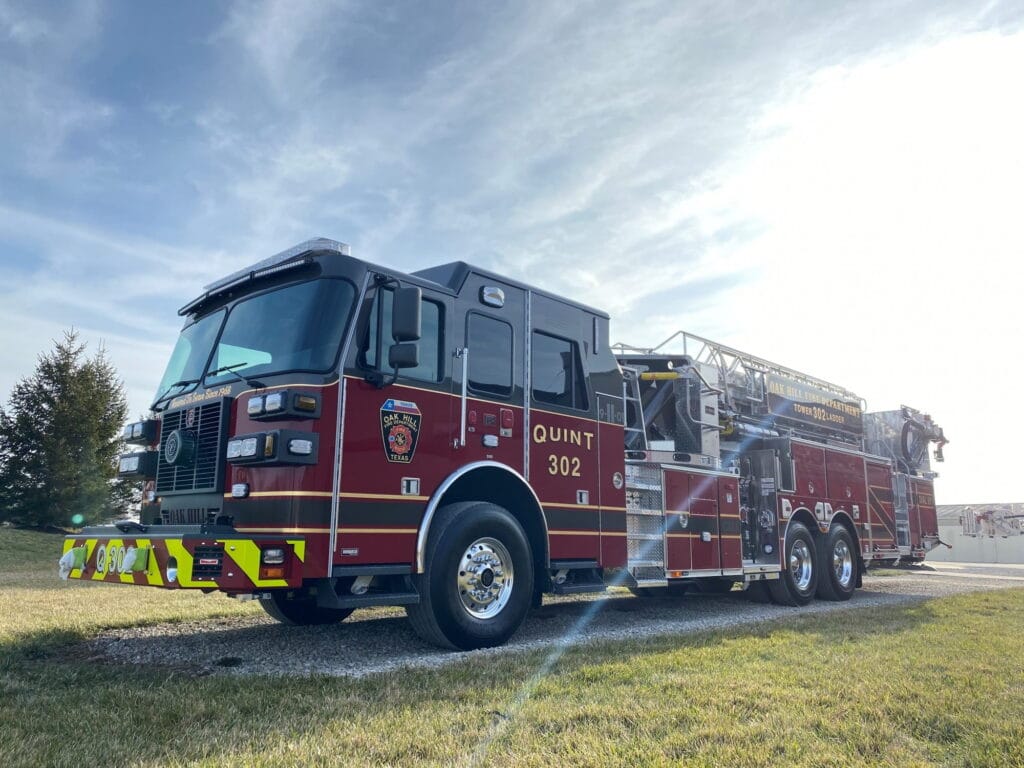

Sutphen Corporation – HS #6671

WHEELBASE: 247”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’ – 6”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof

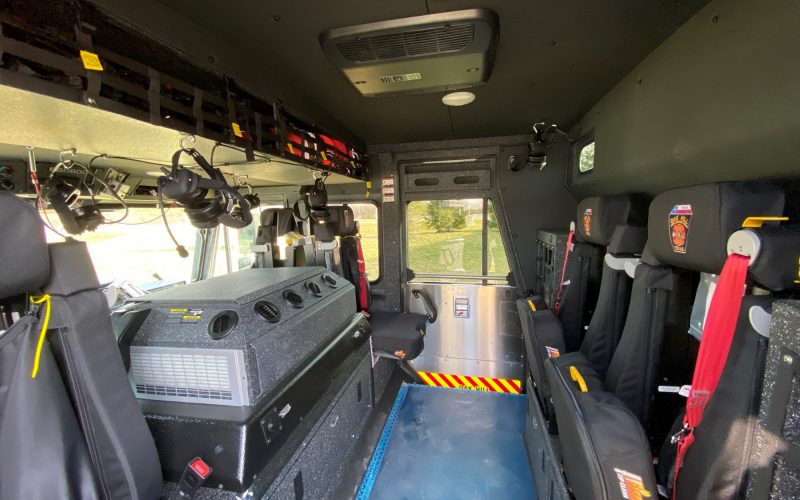

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 24,000 lbs
  • Rear Axle and Suspension 52,000 lbs
  • Engine: Cummins X 12 500HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Waterous

  • CSU-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front Bumper
  • Crosslay: (1) 2 ½” w/ 2 ½” Swivel, (2) 2” w/ 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Mix Roll-Up and Hinged Compartment Doors
  • 99 cu. ft. Total Compartment Space
  • Duo-Safety (SPH) 117’: 14’, 16’, 18’, 24’-2sec, 35′-2sec & 10’F
  • Body: SPH-3, LEFT 56″ H / RIGHT 56″H

ADDITIONAL EQUIPMENT:

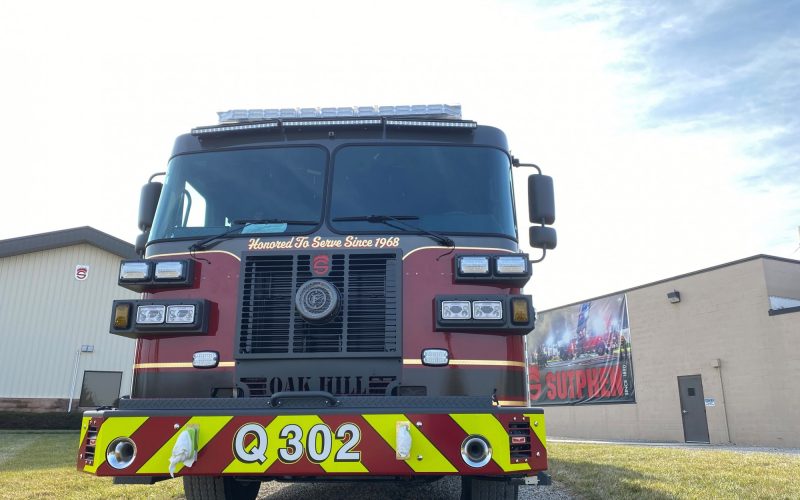

  • 18” Formed Steel Channel Painted Bumper
  • Federal Q2B Siren, Grille Mount
  • Thermal Imaging Camera in Bucket
  • Camera System: Brigade 360
  • FRC ACT 3-Station Intercom System
  • Whelen Freedom IV (16) LED Lightbar
  • FireTech 12V 3-Piece LED Brow Light
  • FireTech 120V Tele Lights
  • FireTech Scene Lights
  • Whelen Traffic Advisor TAL 85 22”, 2-Piece
  • Whelen M6 Warning Lights
  • Whelen M9 Warning Light
  • Whelen L31 Beacons

MONITOR:

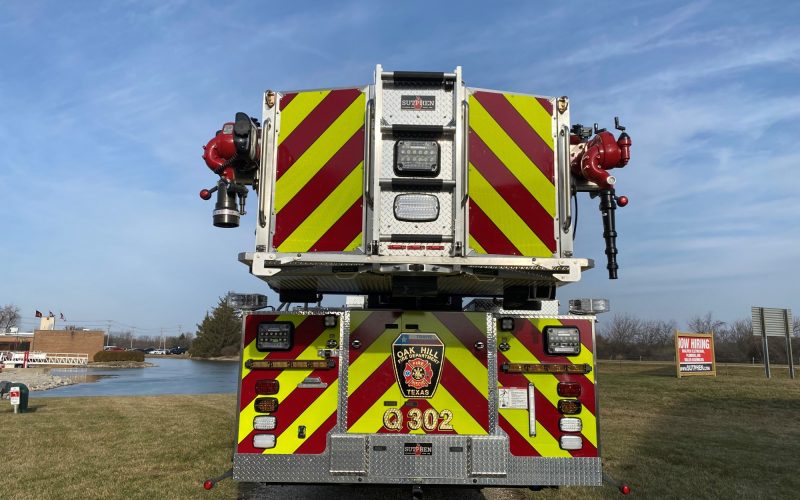

  • Officer Side Monitor: Akron 3483 Stream Master 2, Manual 1250 GPM
  • Officer Side Nozzle: Akron #3488 Streamshaper w/ #2499 Stacked Tips
  • Driver Side Monitor: Akron 3482 Stream Master2, Electric, 1250 GPM w/ Akron 5177 Electric Nozzle
