WHEEL BASE: 230”
TRAVEL HEIGHT: 11’ – 6”
TRAVEL LENGTH: 46’ – 1”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 56” cab with flat roof
- Four-door, six-person cab
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 52,000 lbs
- Engine: Cummins ISX 12, 500 HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS4000

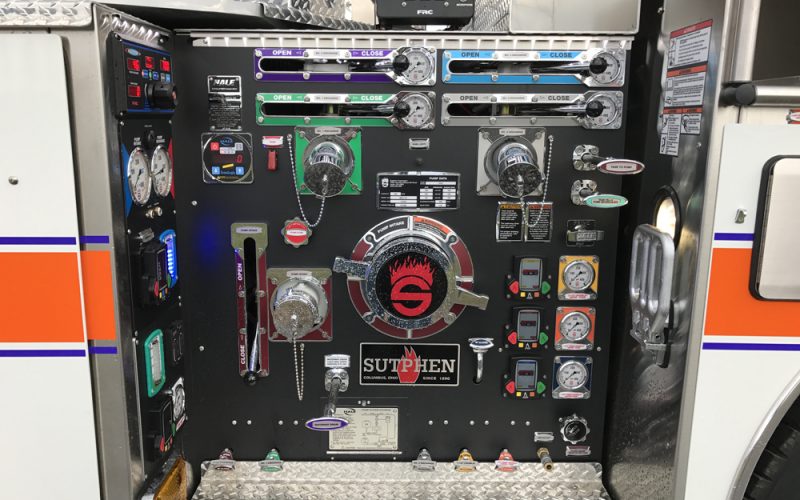

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
- Crosslay: (1) 2 ½”, 2 ½” Swiel & (2) 2” Crosslay w/ 1 ½” Swivel
- 300-Gallon Foam Tank
- 20-Gallon Foam Tank
- Foam System: Foamlogix 2.1
BODY: Sutphen
- Huck Bolted #304 Stainless Steel

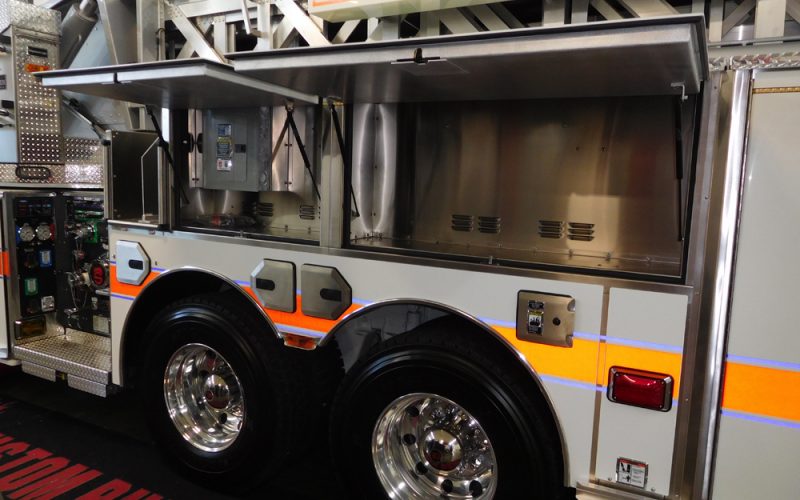

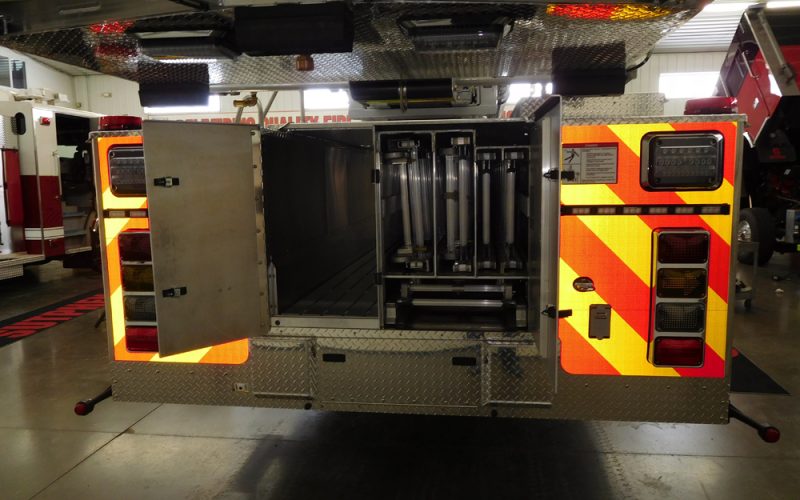

- 293 cu. ft. Total Compartment Space
- Alco-Lite Ladders (115’: 14’, 16’, 16’, 24’ 2-Section, 35’ 2-Section, 16’ R & 10’F
- Hinged Compartment Doors
- Body: SPH-3, Left 56” H / Right 56” H
OPTIONAL EQUIPMENT:
- 12” Bumper Extension
- Federal Q2B, Flush Grille Mount
- Hannay Electric Cord Reel, 200’ (1)
- Generator: Harrison 10 KW
- Camera System: Voyager 3
- Intercom System: FRC IC301 3-Station
- Roto-Ray Warning Light
- FRC Spectra LED Brow Light
- Whelen Freedom Mini LED Lightbars
- Unity LED Boom Tracking Lighting
- Traffic Advisor
MONITOR:
- Driver Side Monitor: Akron 3482 Stream Master 2
- Driver Side Nozzle: Akron 5177 Electric
- Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
- Officer Side Nozzle: Akron 2499 & 3488 PIPE
