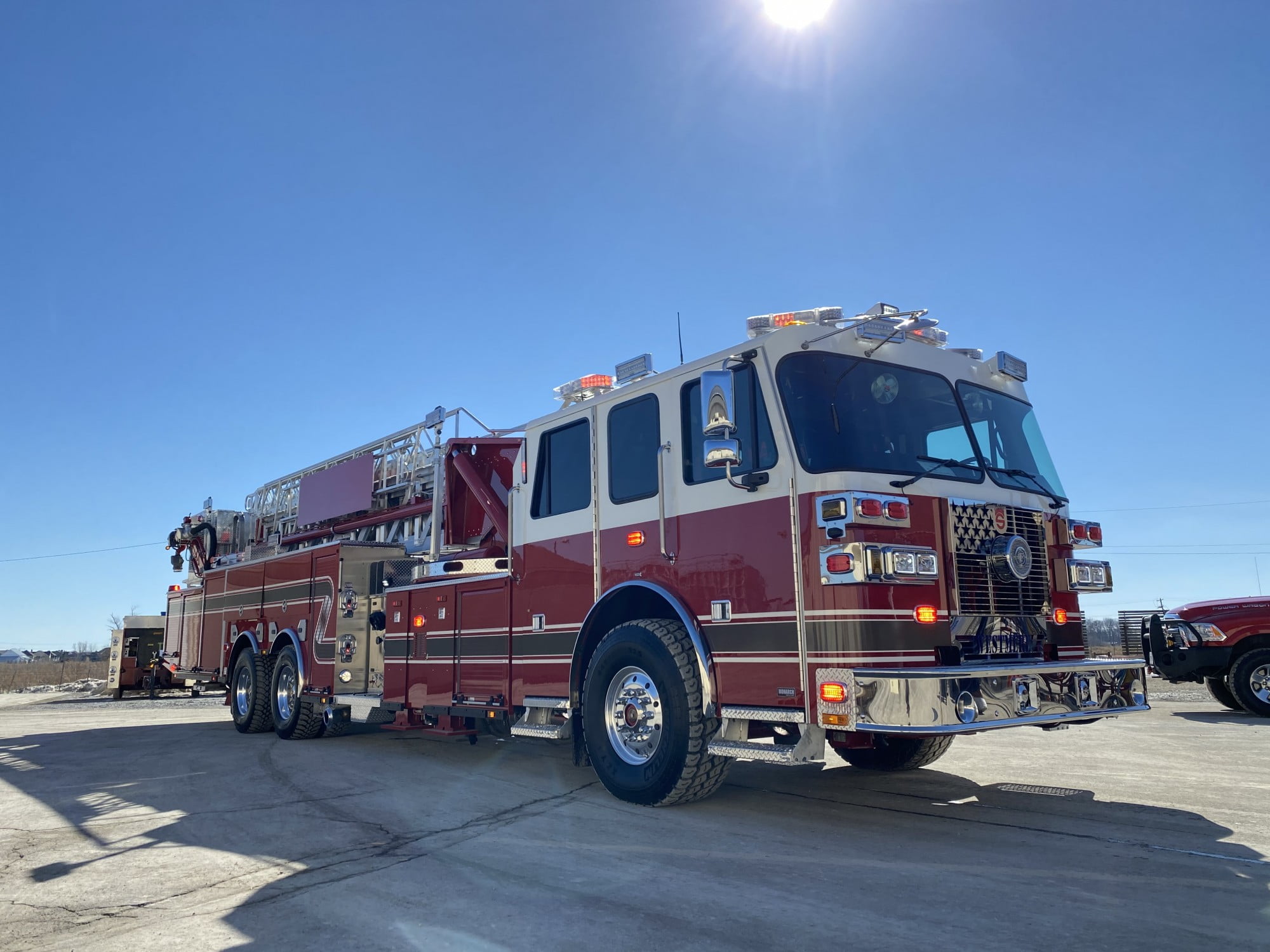

Sutphen Corporation – HS #6690
Dealer – Williams Fire Apparatus
WHEELBASE: 269”
TRAVEL HEIGHT: 11’ – 6”
TRAVEL LENGTH: 49’ – 10”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Frame Rails Tandem axle – Aerial (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 44,000 lbs
- Engine: Cummins X 12, 500 HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 3” Right, (2) 2 ½” Right
- Crosslay: (2) 2” Valve-Piping 1 ½” Swivel
- 300-Gallon Water Tank
BODY: Sutphen
- AMDOR Roll-Up Compartment Doors
- Ladders: Alco-Lite ladders: 14’ Combo, 16’ Roof, 24’-2 Sec, 35’-3 Sec & 10’ F
- 95’ High Rail Ladder Cable Track
- Body: SP95
ADDITIONAL EQUIPMENT:
- 12” Polished Stainless-Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Two Cameras
- Intercom System: FRC ACT 2-Station
- Whelen Freedom IV 72” Lightbar
- FRC Spectra 12V 20K LED Brow Light
- FRC Spectra 900 12V LED
MONITORS:
- Driver Side Monitor: (1) Akron 3473 Gemini Manual 1000 GPM
- Officer Side Monitor: (1) Akron 3473 Gemini Manual 1000 GPM
