Delivery Date:
12/17/2019
Department Name:
Gwinnett County Fire Rescue
Department City / State:
Gwinnett County, GA

Sutphen Corporation – HS #6432

Dealer – Williams Fire Apparatus

WHEEL BASE: 252”

TRAVEL HEIGHT: 11’ – 4”

TRAVEL LENGTH: 47’ – 4 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 44,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000 w/ Retarder

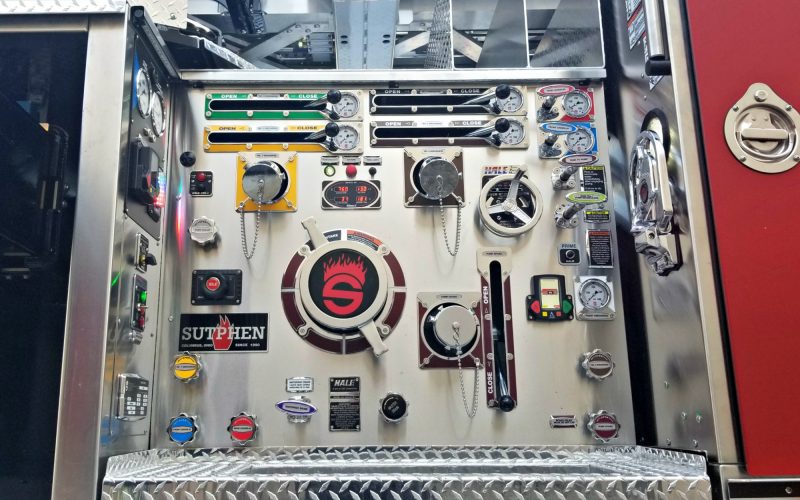

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left; (1) 3” Right; (1) 2 ½” Right; (1) 1 ½” Front Bumper
  • Crosslays: (2) 2” Valve-Piping, 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Door
  • Ladder Storage (14’ Combo, 24’ 2-Section, (2) 2’ Folding, (2) 16’ Roof)
  • Body: Left Low Balt / Right High

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel Channel Bumper Extension
  • Federal Q2B Siren, Flush Grille Mount
  • 10KW Smart Power Generator
  • Brigade Buckeye 360 Camera System
  • FRC ACT 2-Station Intercom System
  • Roto Ray Warning Light
  • Federal Signal VSLR3S-NFPA1 3-Pod LED Lightbar
  • HID Go-Light
  • Federal Signal 9×7 LED Scene Light
  • Federal Signal Commander 240V (2)

MONITOR:

  • Drive Side Monitor: Akron 3473, Gemini Manual 1000 GPM
  • Drive Side Nozzle: Akron 5160 Auto
  • Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
  • Officer Side Nozzle: Akron 5160 Auto
