Delivery Date:
06/14/2019
Department Name:
Fort Lauderdale Fire Rescue
Department City / State:
Ft. Lauderdale, FL

Sutphen Corporation – HS #6305

Dealer – South Florida Emergency Vehicles

WHEEL BASE: 258”

TRAVEL HEIGHT: 11’ – 6”

TRAVEL LENGTH: 48’ – 4”

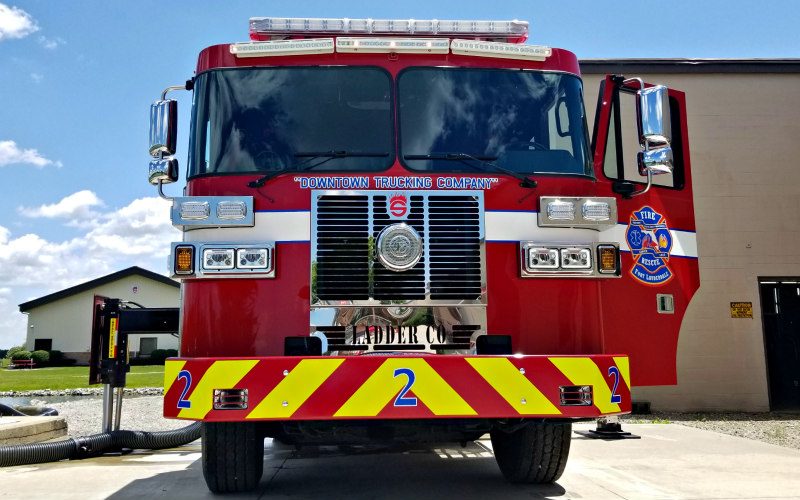

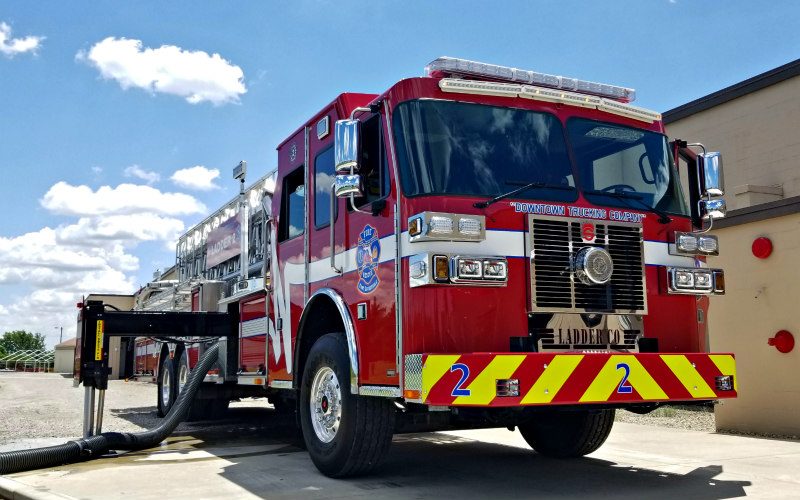

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 44,000 lbs
  • Engine: Cummins ISX 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

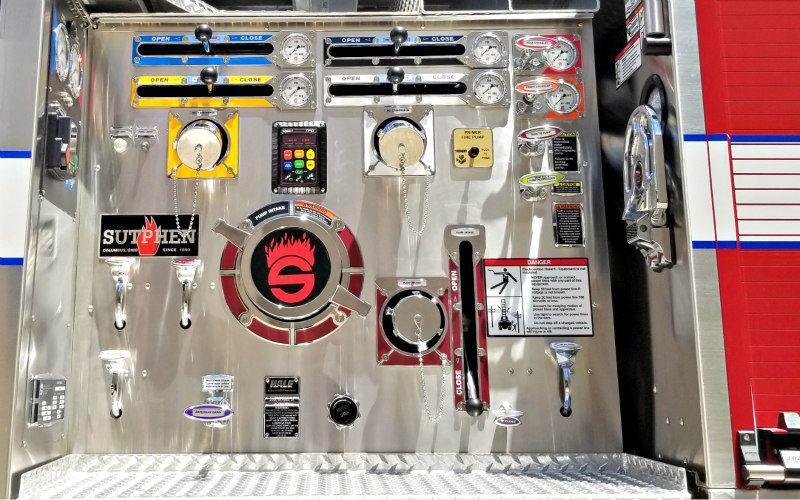

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left; (1) 3” Right; (1) 2 ½” Right
  • Crosslays: (2) 2” Valve-Piping, 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Door

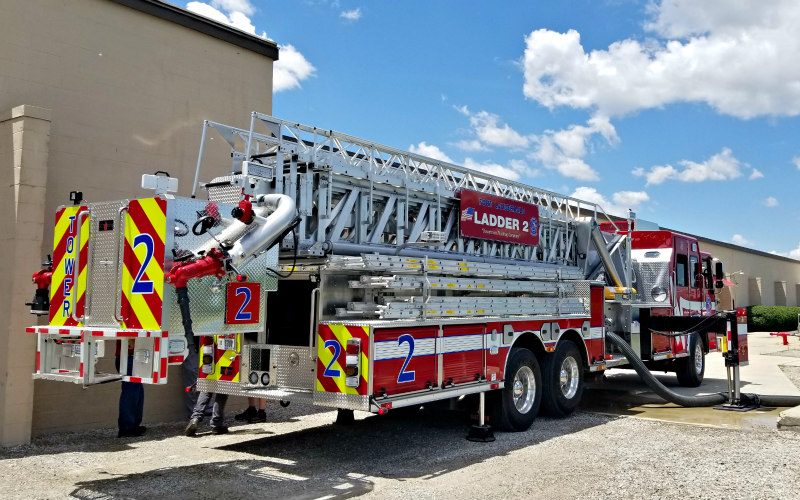

  • Alco-Lite Ladders (115’: 14’, 16’, 16’, 24’ 2-Section, 35’ 3-Section & 10’ F)
  • SP-3: Left High/ Right Low Balt

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Flush Grille Mount
  • Hannay Electric Cord Reel, 100’ (1)
  • 10KW Harrison Generator
  • Whelen Freedom IV 72” (16) LED Light Bar
  • FireTech 3-Piece 12V LED Brow Light
  • FireTech LED Work Lights
  • FireTech LED Platform Spot Light
  • FRC Spectra 240V LED Telelights
  • FRC Spectra 900 12V LED Scene Lights
  • Brigade Backeye 360 Camera System

MONITOR:

  • Drive Side Monitor: Akron 3473, Gemini Manual 1000 GPM
  • Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
  • Officer Side Nozzle: Akron 2499 & 3488 Pipe
