Delivery Date:
07/31/2019
Department Name:
Durham Fire Department
Department City / State:
Durham, NC

Sutphen Corporation – HS #6388

Dealer – Stevens Fire Equipment

WHEEL BASE: 252”

TRAVEL HEIGHT: 10’ – 1”

TRAVEL LENGTH: 48’

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 44,000 lbs
  • Engine: Cummins X 12, 455 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

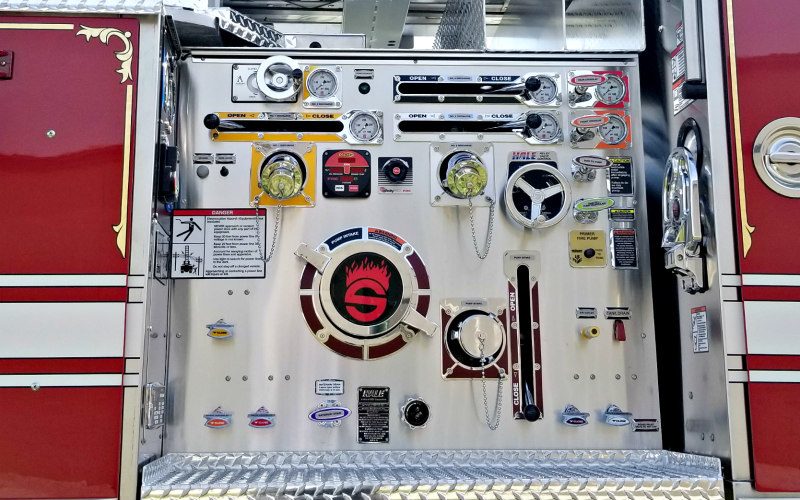

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left; (1) 3” Right; (1) 2 ½” Right
  • Crosslays: (2) 2” Valve-Piping, 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Hinged Compartment Doors
  • Duo-Safety Ladders (16’, 16’, 28’ 2-Section, 35’ 3-Section, 30’ 2-Section & 10’ F)
  • SP2: Left High / Right Low

ADDITIONAL EQUIPMENT:

  • 12” Polished Stainless Steel Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 150’ (1)
  • 6KW Smart Power Generator
  • Whelen Freedom IV (12) LED Lightbar
  • Whelen PFH2 12V LED Brow
  • Whelen PFH2 12V LED Scene
  • FRC Focus 240V Tele
  • Brigade Camera System, Three Camera
  • Pike Pole Storage Tubes (6)
  • Intercom System, FRC Act 2-Station

MONITOR:

  • Drive Side Monitor: Akron 3473, Gemini Manual 1000 GPM
  • Officer Side Monitor: Akron 3473 Gemini Manual 1000 GPM
  • Officer Side Nozzle: Akron 5160 Auto
