Delivery Date:
11/05/2024
Department Name:
Cazenovia Fire Department
Department City / State:
Cazenovia, NY
Truck Type:
Dealer – Vander Molen Fire Apparatus Sales and Service
WHEELBASE: 269”
TRAVEL HEIGHT: 10’ – 1”
TRAVEL LENGTH: 49’ –11”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab w/ a Flat Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 24,000 lbs
- Rear Axle and Suspension 48,000 lbs
- Engine: Cummins X 12, 500HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4500

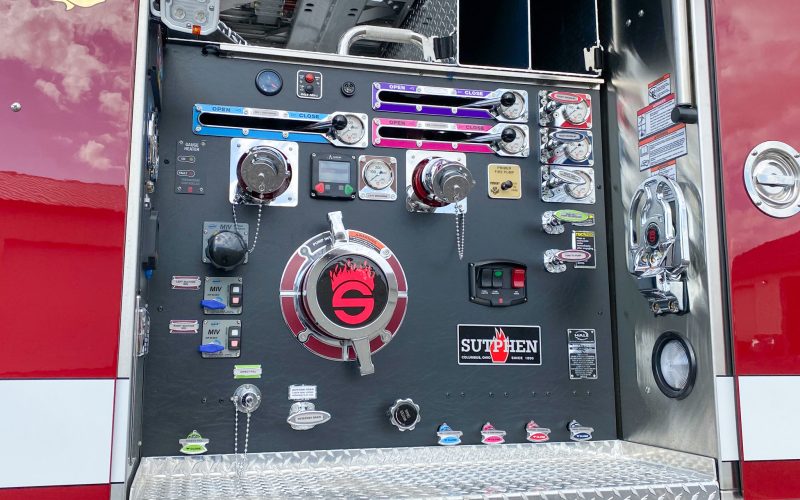

PUMP: Hale
- QMAX-1750 GPM, 6” Suction Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Valve 2 ½” Pipe Right Rear
- Crosslays: (2) 2 ½” Valve-Piping w/ 2 ½” Swivel
- 500-Gallon Water Tank
BODY: Sutphen
- Huckbolt #304 Stainless Steel
- Mixed AMDOR Roll-Up & Hinged Compartment Doors
- Duo-Safety Ladder Package: (113’) 20’, 20’, 28’ 2-Section, 35’ 3-Section & 10’ Folding
- Body: SP2 – Left High / Right Low
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel Bumper
- Federal Q2B Siren, Grille Mount
- Intercom System: FRC Act 2-Station
- Generator: Harrison, 10KW
- Whelen Freedom IV 72” Lightbar
- 12V FR Spectra Brow Light
- 12V FireTech Aerial Spotlights
- 240V FRC Spectra Tele Lights
- 12V FireTech GESM Scene Lights
MONITOR:
- Driver Side: Akron 3473, Gemini Manual, 1000 GPM
- Officer Side: Akron 3473, Gemini Manual, 1000 GPM
