Department Name:
Syracuse Fire Department
Department City / State:
Syracuse, NY

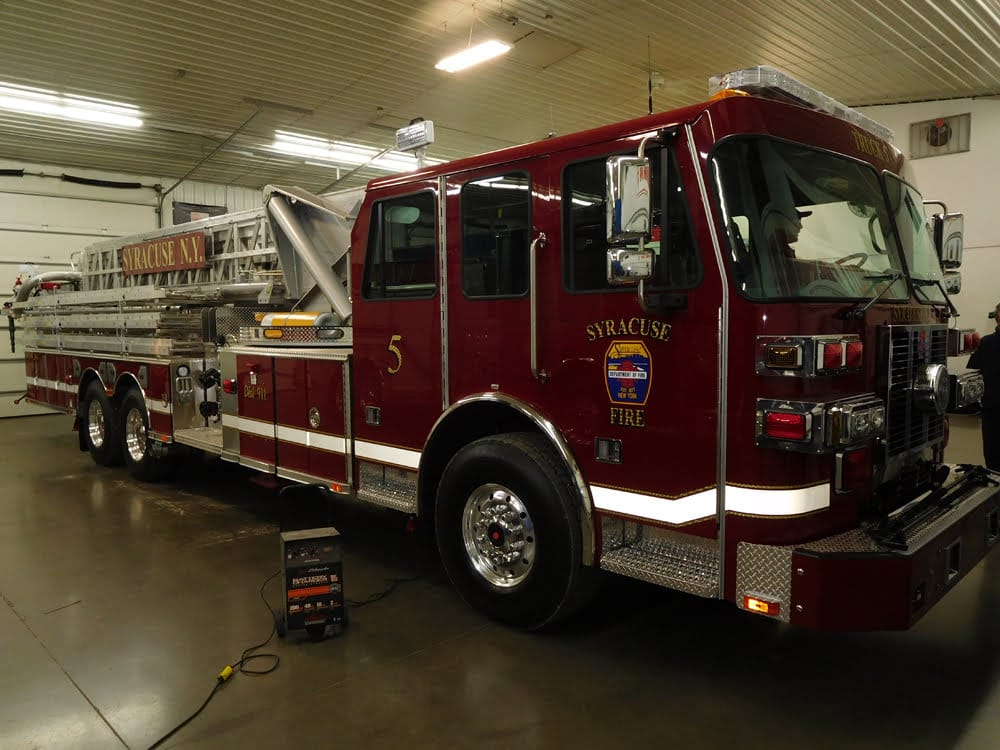

SP 95 Aerial Platform (HS-5891)

WHEEL BASE: 252”

TRAVEL HEIGHT: 10’- 1”

TRAVEL LENGTH: 48”- 0’

CHASSIS: Sutphen 56” cab with flat roof

  • Four-door, six-person cab
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 44,000 lbs
  • Engine: Cummins ISX 12 500 HP
  • Alternator: Neville 320 AMP
  • Transmission: Allison EVS4500, 6 Speeds

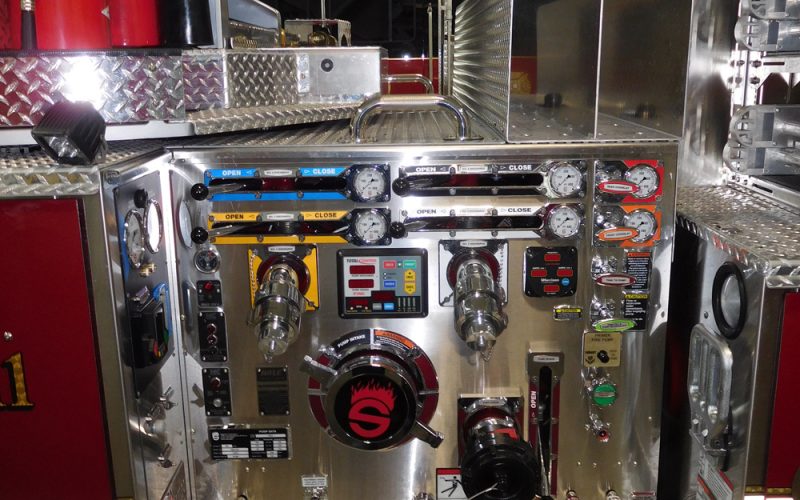

PUMP: Hale

  • QMAX- 1500 GPM

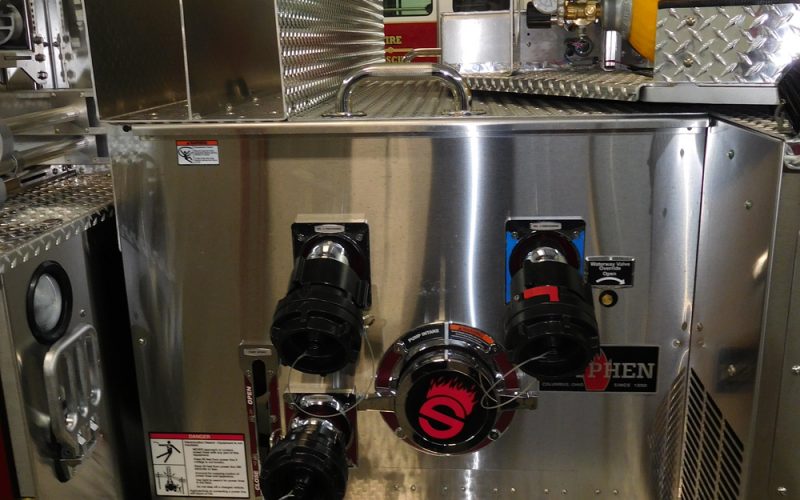

  • Discharges: 3” Waterway, (2) 2 ½” Left, (2) 3” Right,
  • 400 Gallon Tank

BODY: Sutphen

  • Stainless Steel
  • ROM Roll up Door
  • 220 cu. ft. total compartment space
  • SP1, Left Low, Right Low

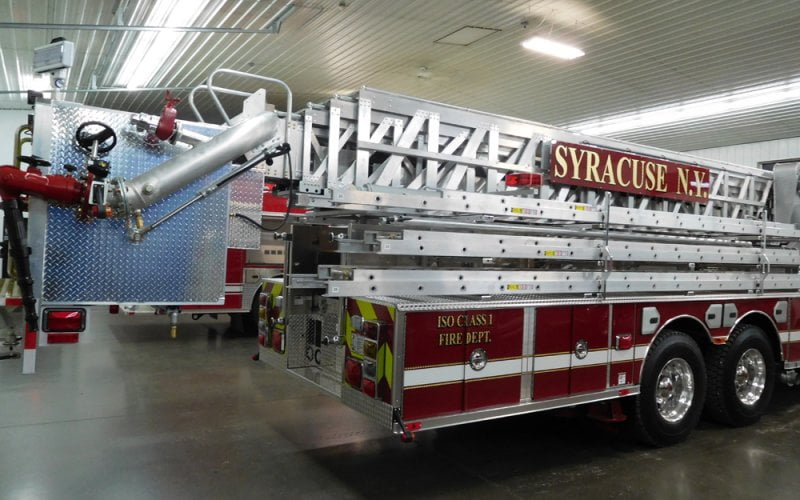

  • Alco-Lite ladders, aerial or ISO compliment

OPTIONAL EQUIPMENT:

  • (2) Hannay Electric Cord Reel, 150’
  • Harrison, 8 KW HYD Generator
  • Federal Q2B Siren
  • Special Ladder Package/ Special Ladder Mounting
  • Warning Lights, Whelen
  • Scene Light, Whelen
  • Duo Safety Syracuse Ladder Package



MONITOR:

  • Driver Side Monitor: Akron 3473 Manual 1000 GPM
  • Driver Side Nozzle: TFT M-R1250
  • Officer Side Monitor: Akron 3473 Manual 1000 GPM
  • Officer Side Nozzle: TFT M-R1250
