Delivery Date:
06/17/2021
Department Name:
Union Grove Fire Department
Department City / State:
Jemison, AL

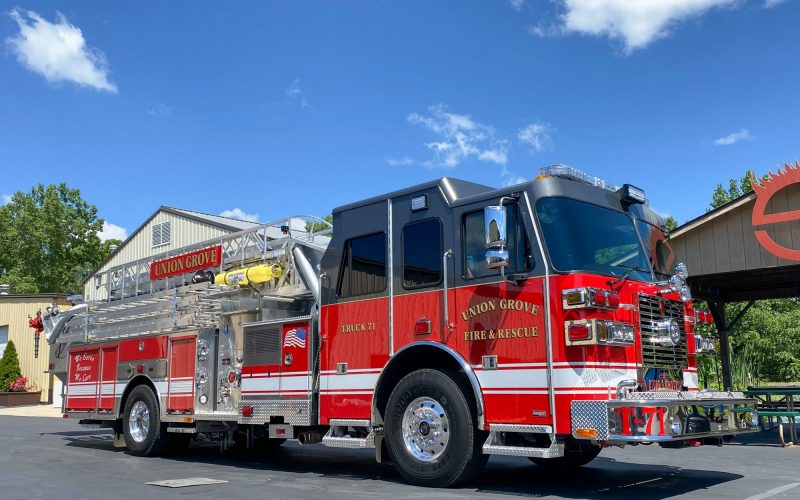

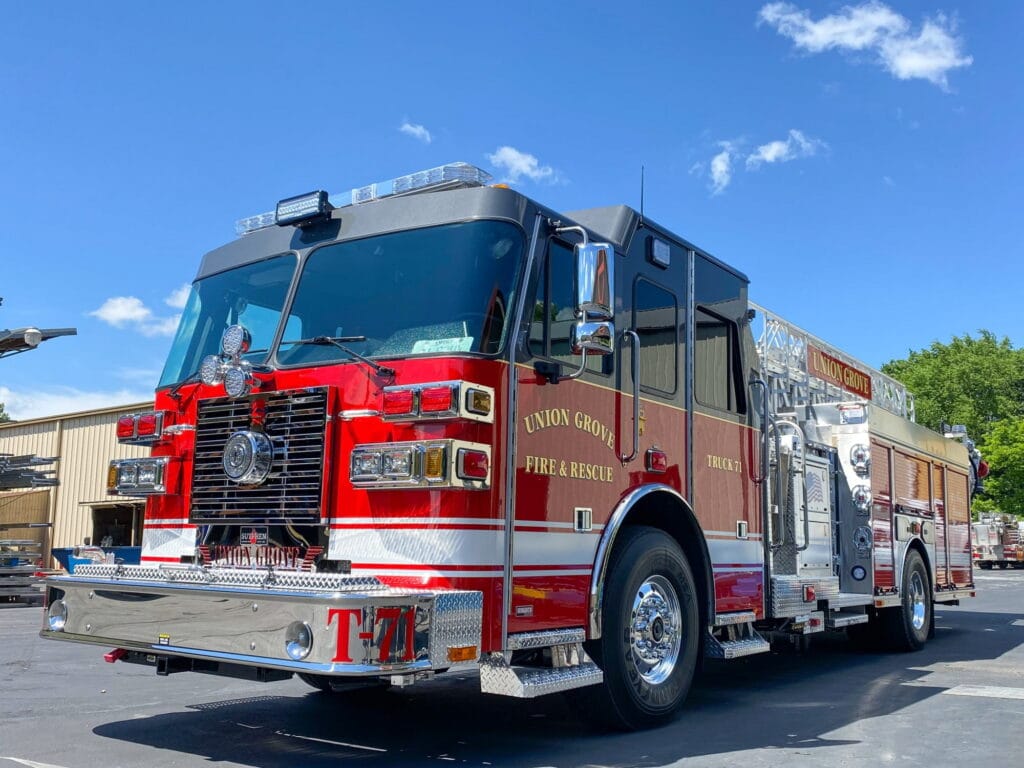

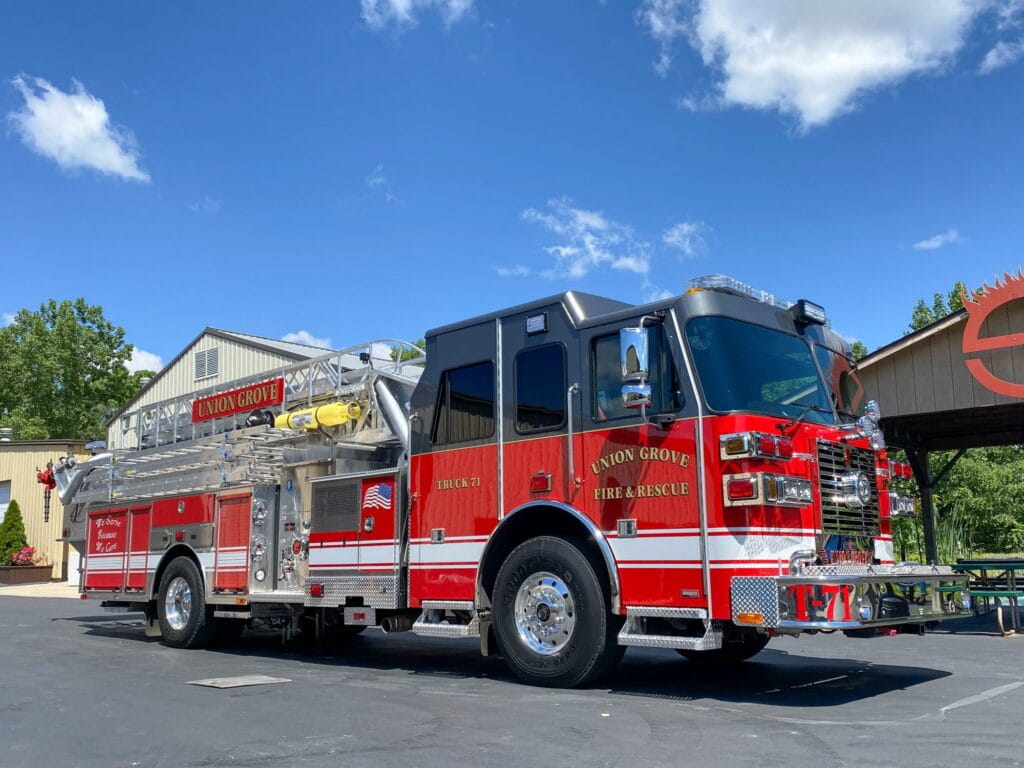

Truck Type:

Sutphen Corporation – HS #6943

Dealer – Williams Fire Apparatus

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ – 9 ¼”

TRAVEL LENGTH: 42’ – 11 ½”

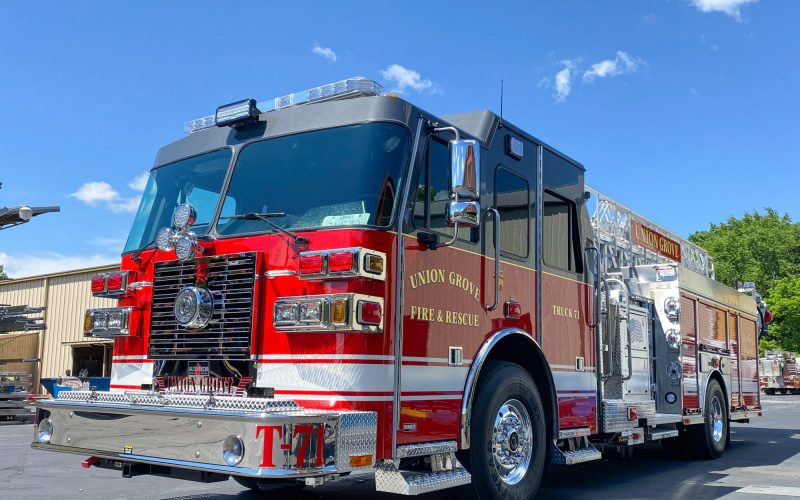

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

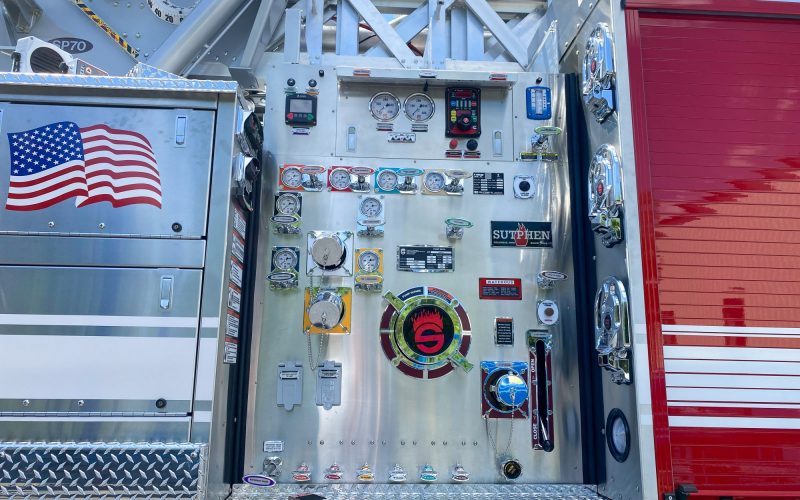

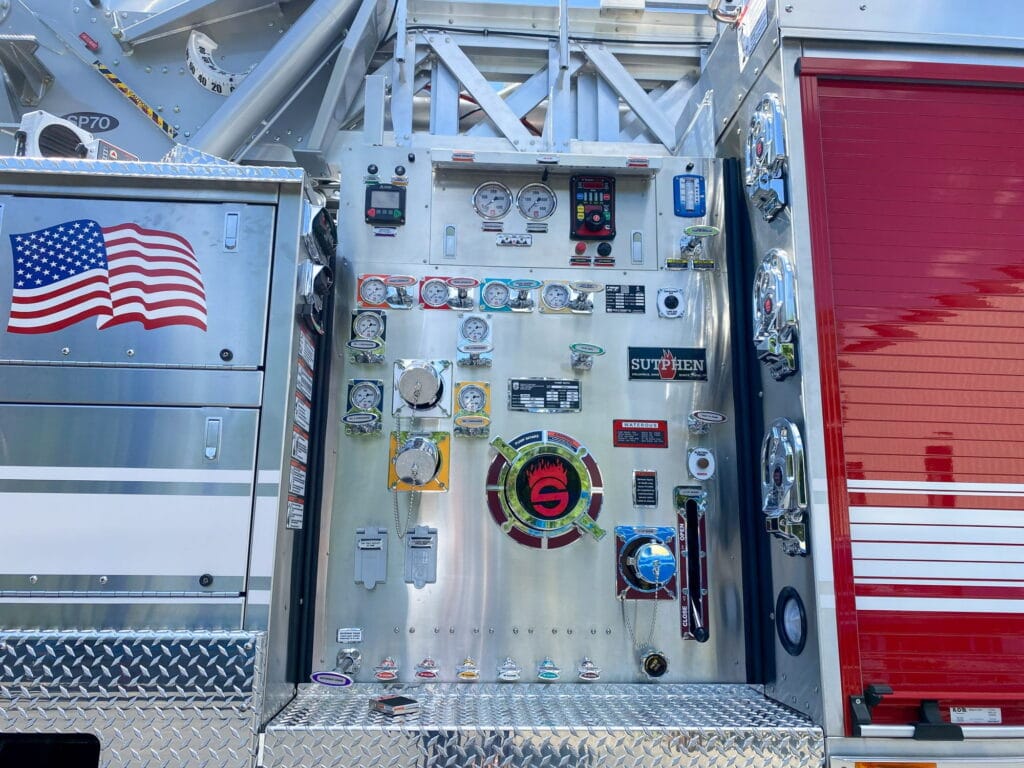

PUMP:                 Waterous

  • CSU-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 2 ½” Front Bumper
  • Crosslay: (2) Crosslay 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank

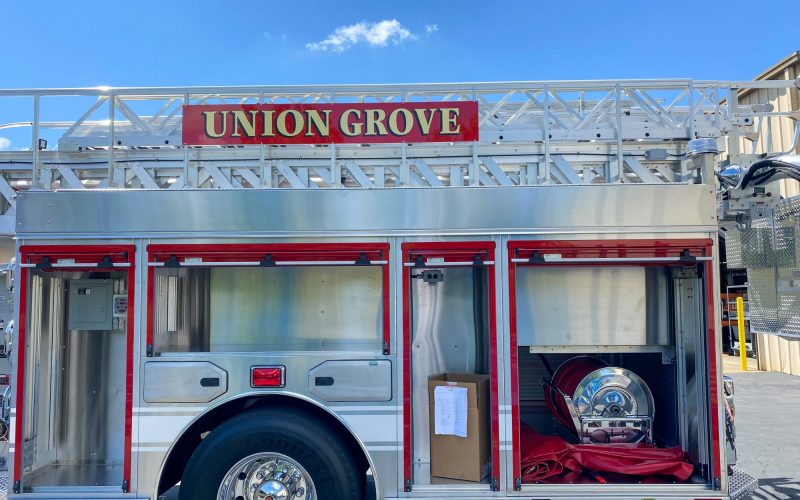

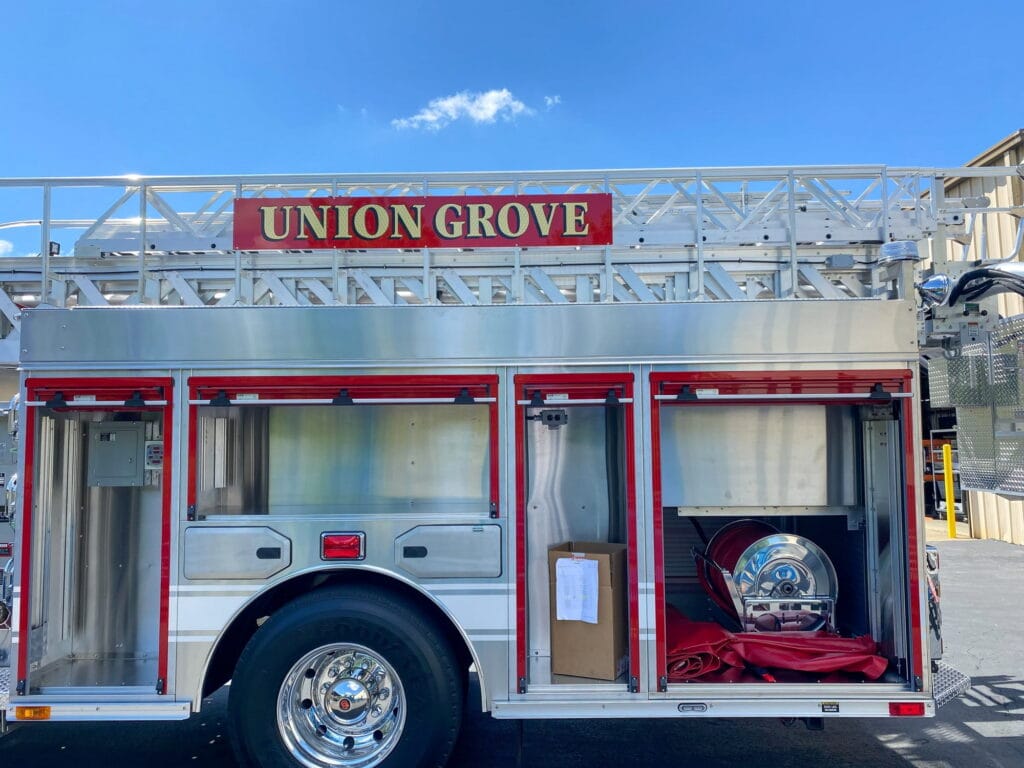

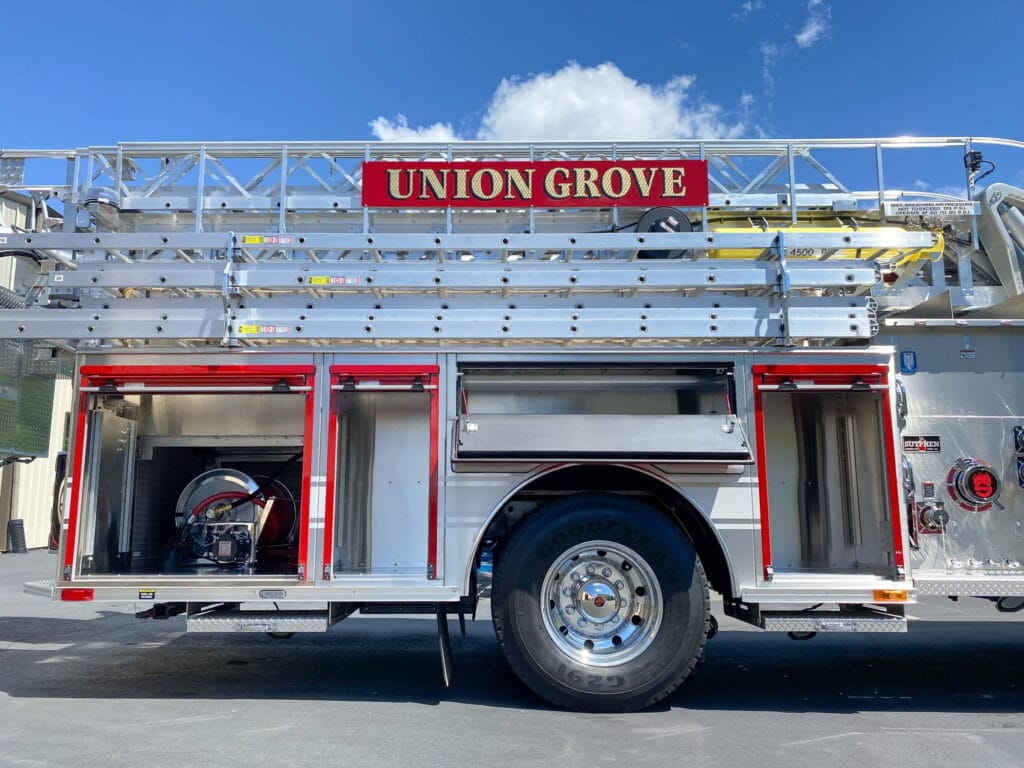

BODY:                  Sutphen

  • ROM Roll-Up Compartment Doors
  • Over 190 cu. ft. Total Compartment Space

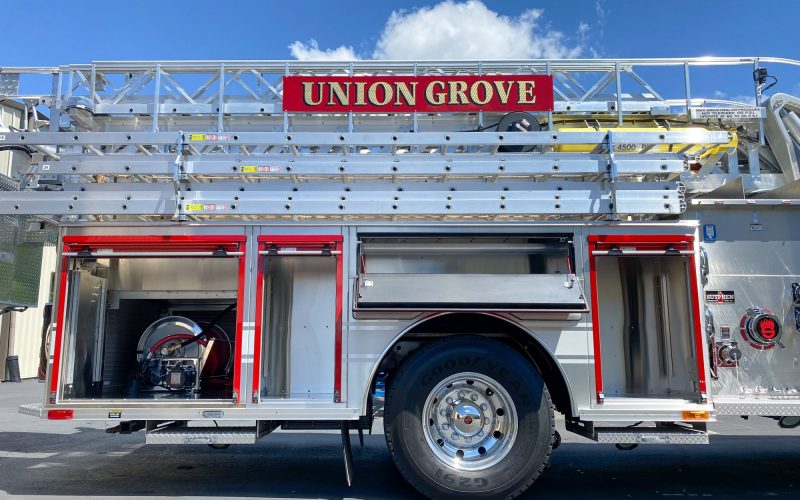

  • Duo-Safety Custom Ladder Compliment: (85’: 16’R, 24’ 2-Section, 35’ 3-Section & 10’ F)
  • Body: SAA-4, Left High / Right Intermed / Trans

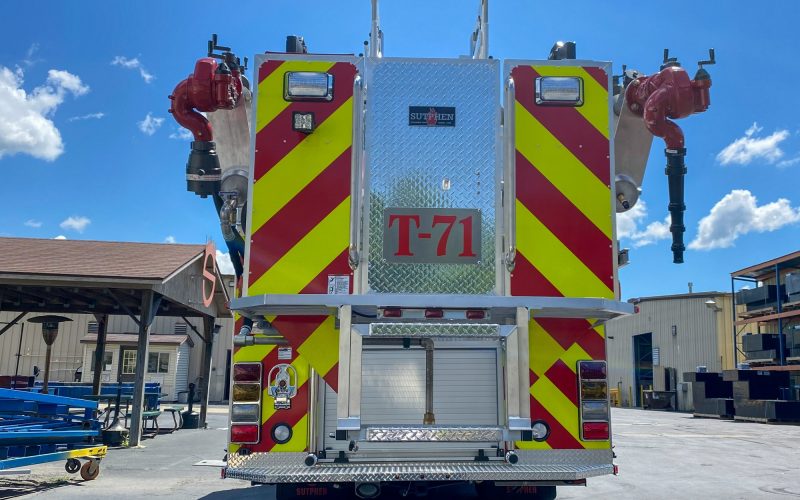

  • Monitor: (2) Akron Manual Stream Master2 w/ Stream Shaper, Tips and Fog Nozzle

ADDITIONAL EQUIPMENT:

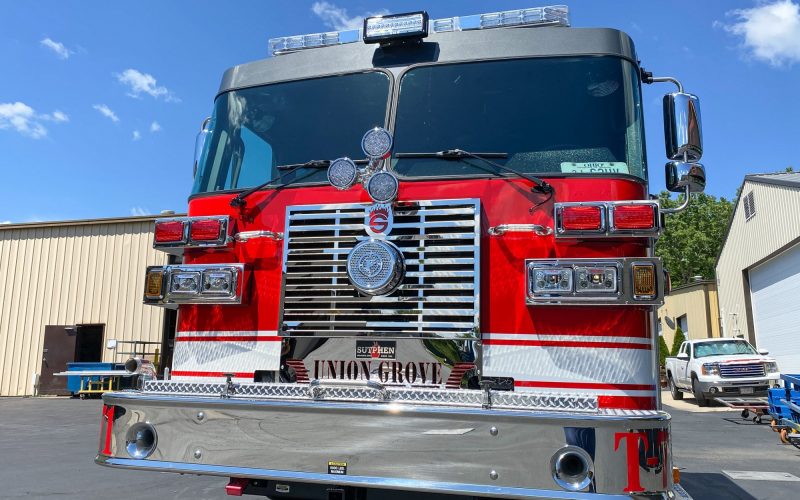

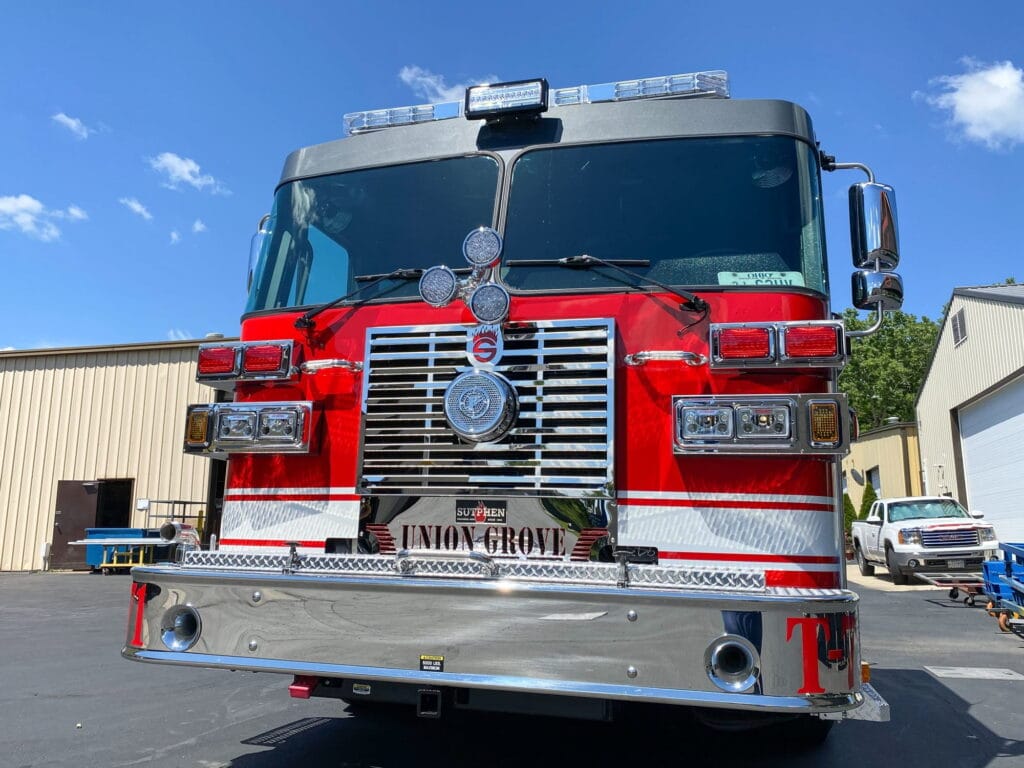

  • 18” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • Intercom System: FRC ACT 2-Station
  • Generator: Smart Power 6KW
  • FRC SpectraMax 28K LED Brow Light
  • FRC Spectra 900 Scene Light
  • FRC Spectra 240V LED Telescoping Scene Lights
  • FireTech LED Platform Spotlight
  • Whelen Freedom 4 Lightbar
  • Roto Ray Warning Light
