Delivery Date:
11/18/2020
Department Name:
Trotwood Fire Department
Department City / State:
Trotwood, Ohio
Truck Type:

Sutphen Corporation – HS #6791

Dealer – Heritage Fire Equipment

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ – 9 ¼”

TRAVEL LENGTH: 43’ – 11 ¾”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
  • Crosslay: (2) 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

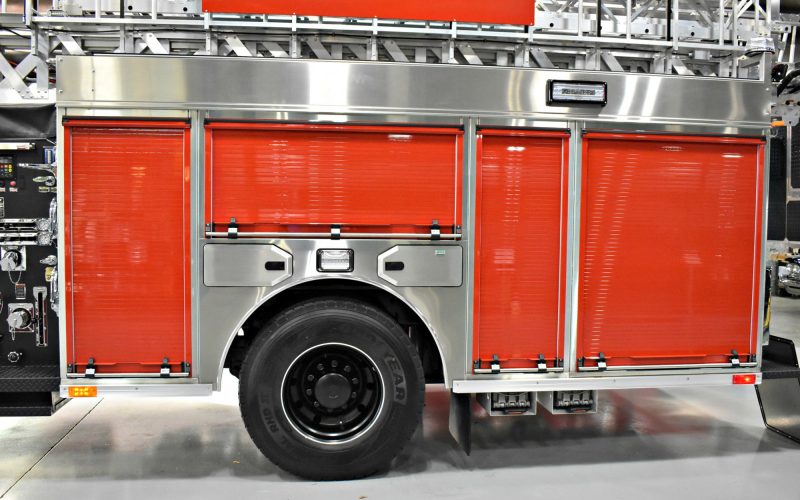

  • AMDOR Roll-Up Compartment Doors

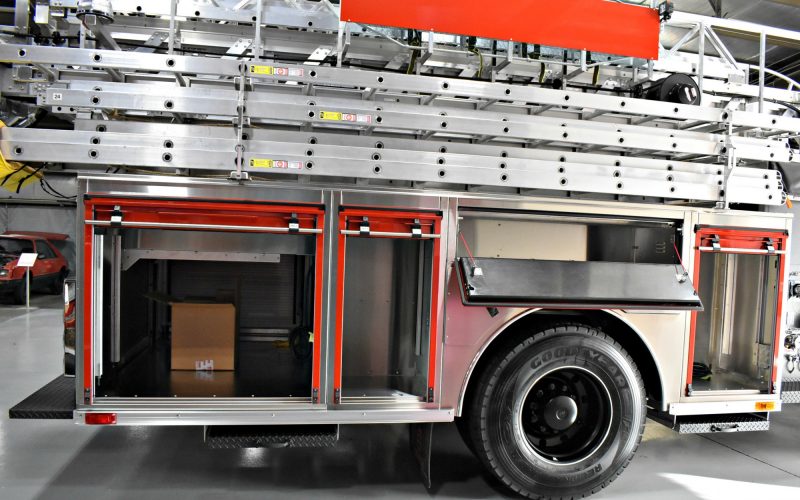

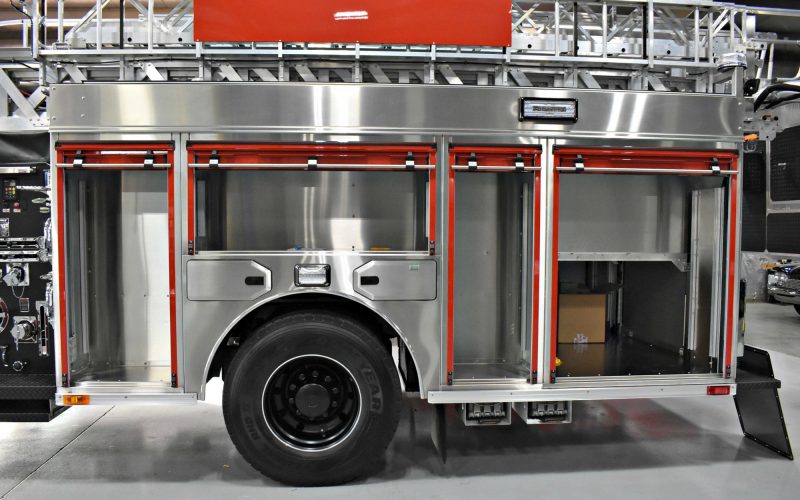

  • Over 190 cu. ft. Total Compartment Space

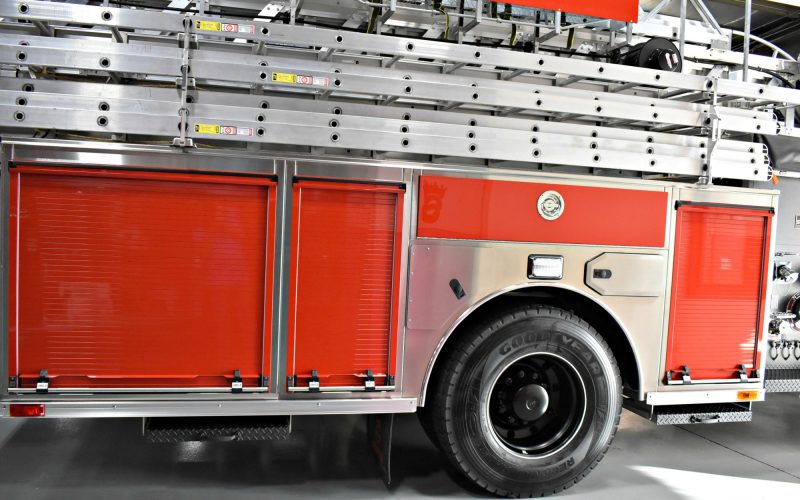

  • Duo-Safety Ladder Package (85’: (2) 16’ Roof, 24’ 2-Section, 35’ 3-Section & 12’ Folding)
  • Body: SAA-4, Left High/Right Intermed / Trans

ADDITIONAL EQUIPMENT:

  • 30” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • Intercom System: FRC ACT 2-Station
  • Little Giant Ladder 13’
  • Whelen Freedom 4 Lightbar
  • FRC Spectra 12V 20K LED Brow Light
  • FRC Spectra 12V 20K LED Scene Light

MONITORS:

  • Driver Side Monitor: (1) Akron 3482 Stream Master 2 Electric RF w/ Akron 5177 Nozzle
  • Officer Side Monitor: (1) Akron Manual Stream Master 2 w/ Shaper and Tips
