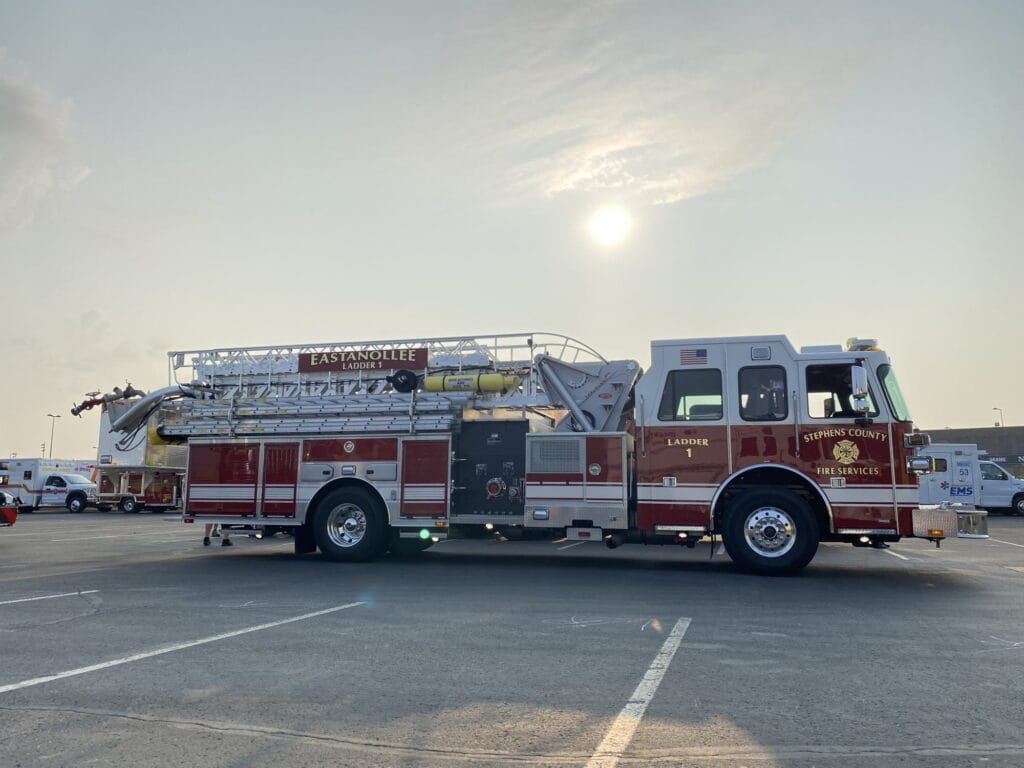

Delivery Date:
09/08/2021
Department Name:
Stephens County Fire Services
Department City / State:
Toccoa, GA
Truck Type:
Sutphen Corporation – HS #6876
Dealer – Williams Fire Apparatus
WHEELBASE: 221”
TRAVEL HEIGHT: 10’ – 9 ¼”
TRAVEL LENGTH: 43′ – 5 ¾”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62”cab with 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension: 23,000 lbs.
- Rear Axle and Suspension: 31,000 lbs.
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
- Crosslay: (2) 2” Valve-Piping 1 ½” Swivel
- 480-Gallon Water Tank
- 20-Gallon Foam Tank
BODY: Sutphen
- HuckBolted #304 Stainless Steel
- ROM Roll-Up Compartment Doors
- Over 190 cu. ft. Total Compartment Space
- Alco-Lite Quint Ladder Package (85’: 16’ Roof; 24’ 2-Section; 35’ 3-Section; and 10’ Folding)
- Body: SAA-4 Left High / Right Intermed / Transverse
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel Bumper Extension
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview Single Camera
- Generator: 10KW Smart Power HYD MT
- Hannay Electric Cord Reel, 150’ (1)
- Whelen Freedom 4 Lightbar
- FRC Spectra LED Brow Light
- FRC Spectra 120V LED Scene Light
- FRC Spectra 900 Scene Light
- FRC Spectra 120V LED Scene Light
MONITORS:
- Monitor: (2) Elkhart #293-6A w/ CSW Nozzle
