Delivery Date:
04/14/2021
Department Name:
St. Albans Fire Department
Department City / State:
St. Albans, WV

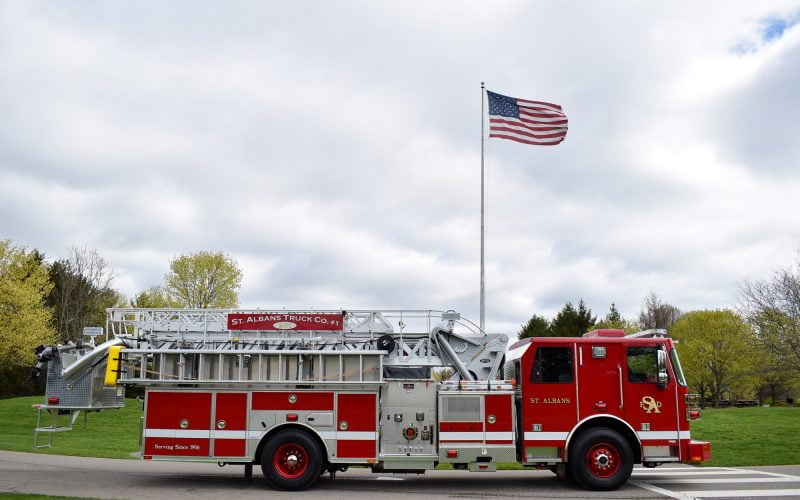

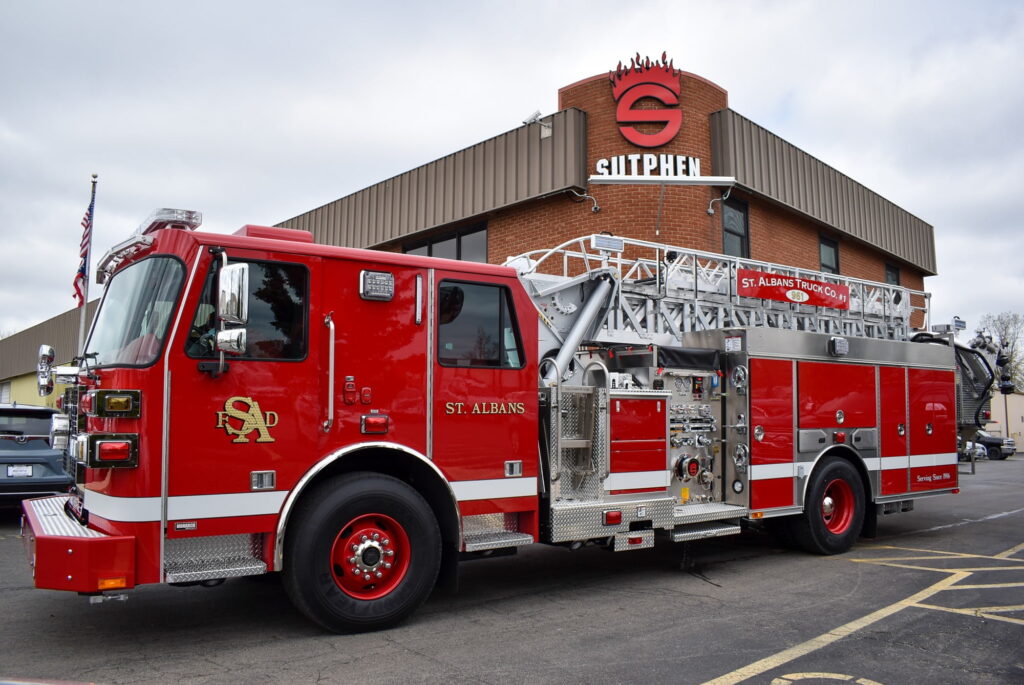

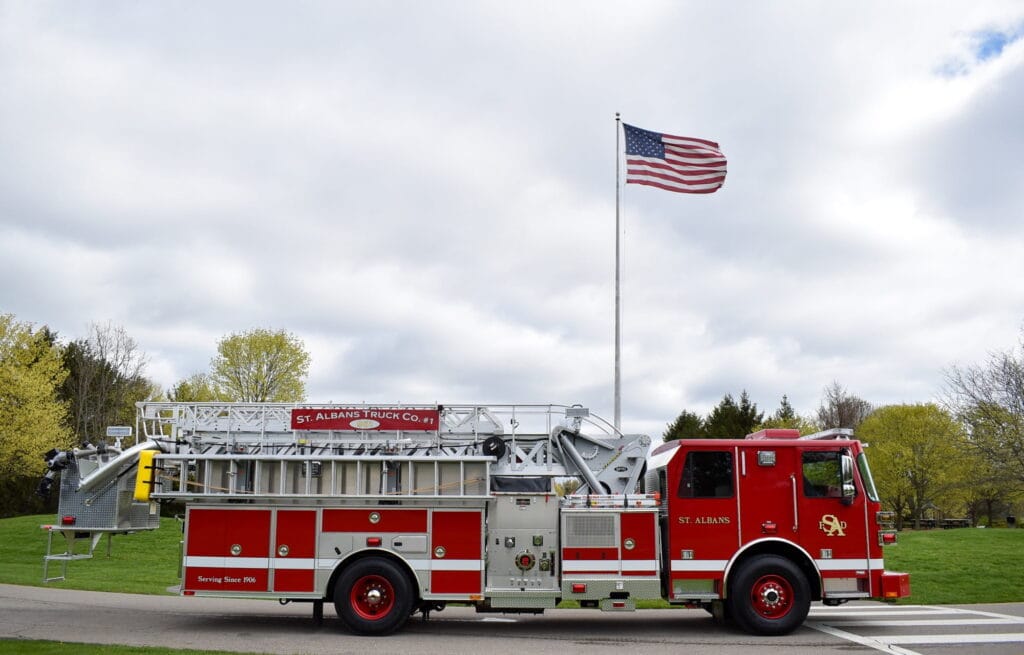

Truck Type:

Sutphen Corporation – HS #6925

Dealer – Heritage Fire Equipment

WHEELBASE: 215”

TRAVEL HEIGHT: 10’ – 9 ¼”

TRAVEL LENGTH: 41’ – 11 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab w/ Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X 12, 500 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body
  • Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslay w/ 1 ½” Swivel
  • 500-Gallon Water Tank

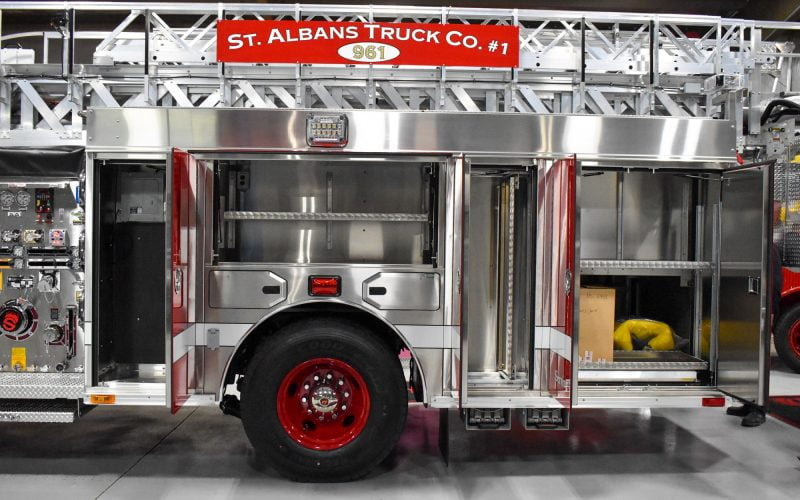

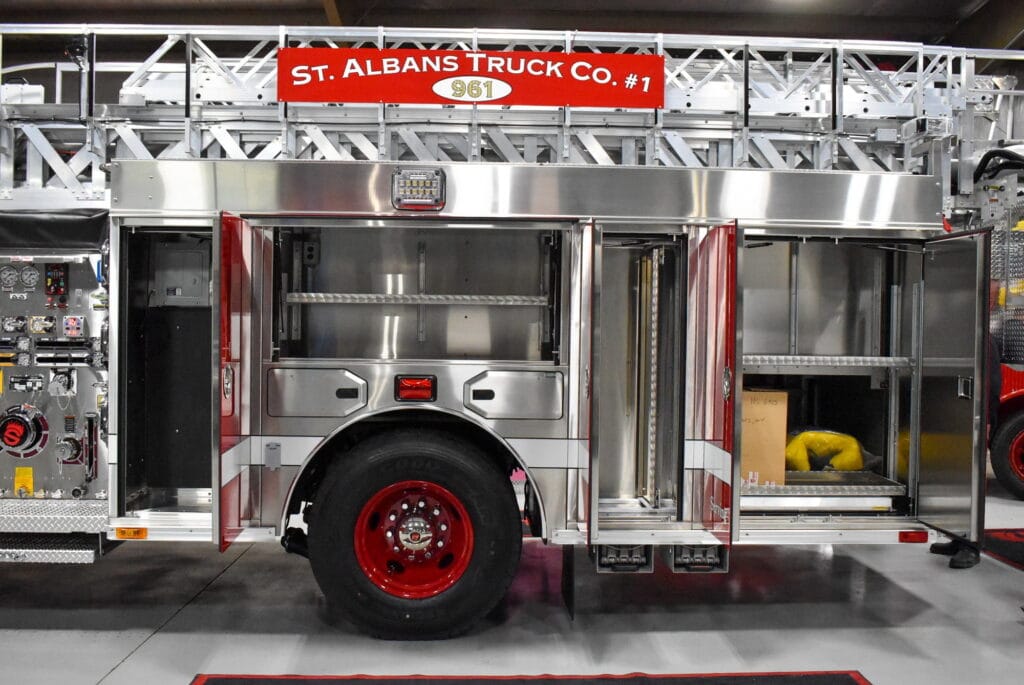

BODY:                  Sutphen

  • Hinged Compartment Doors
  • Over 190 cu. ft. Total Compartment Space
  • Duo-Safety Custom Ladder Compliment: (89’: 16’R, 28’ 2-Section,35’ 3-Section & 10’ F)
  • Body: SAA-4, Left High / Right Intermed / Trans
  • Monitor: TFT Monsoon Manual Y4-M15A w/ M-R1250-NJ Automatic Fog Nozzle and (1) TfT Monsoon Electric Y4-E15A w/ Master Stream M-ERP1250-NJ Electric Nozzle

ADDITIONAL EQUIPMENT:

  • 12” Formed Steel Bumper Channel
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Camera
  • Intercom System: FRC ACT 2-Station
  • Hannay Electric Cord Reel, 175’ (1)
  • Generator: Smart Power 8KW
  • HiViz 3-Piece 12V LED Brow Light w/ Integrated Marker Lights
  • Opticom in Lightbar
  • Whelen Freedom 4 Lightbar
  • Whelen MCFLED Beacons Amber LED Officer’s Side
  • FRC Spectra 240V LED Scene Light
  • FireTech Platform Spotlight
  • FireTech 12V Guardian Elite Scene Lights
