Delivery Date:
07/15/2020
Department Name:
Speculator Fire Department
Department City / State:
Speculator, NY

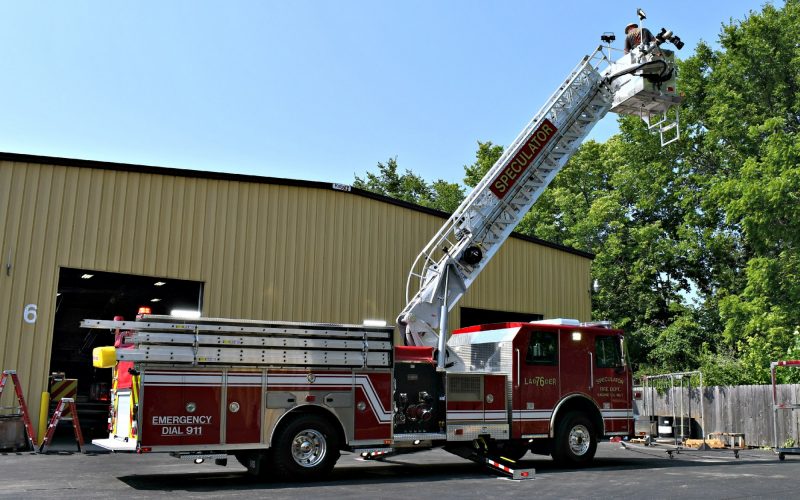

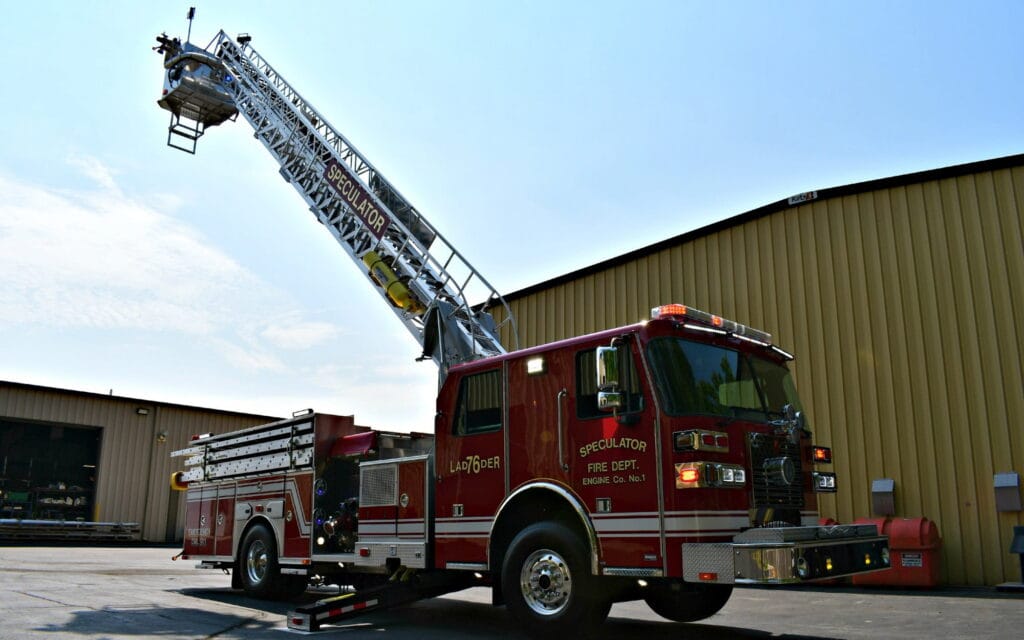

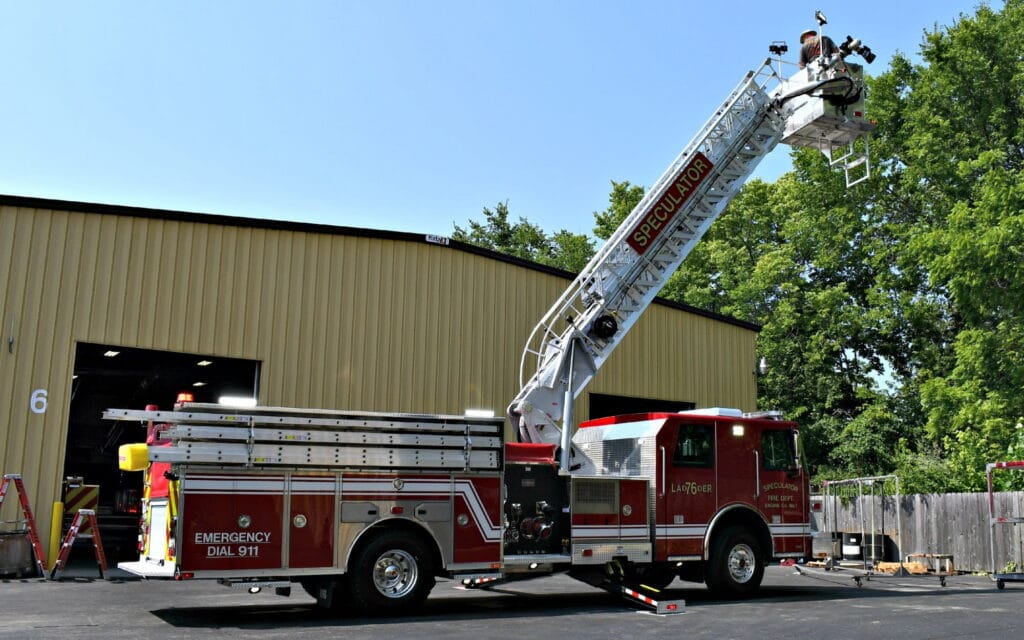

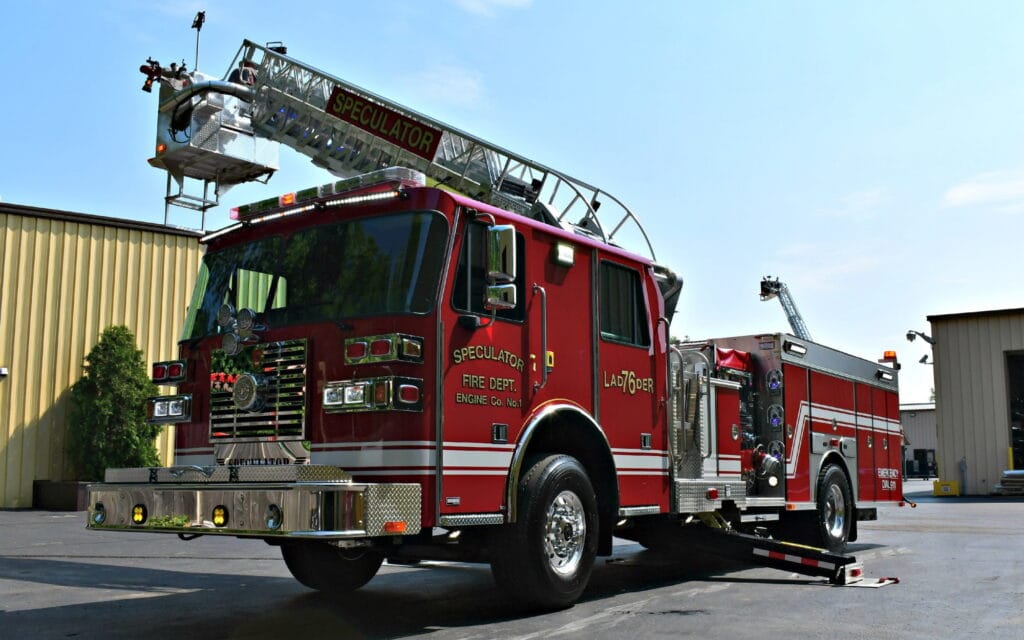

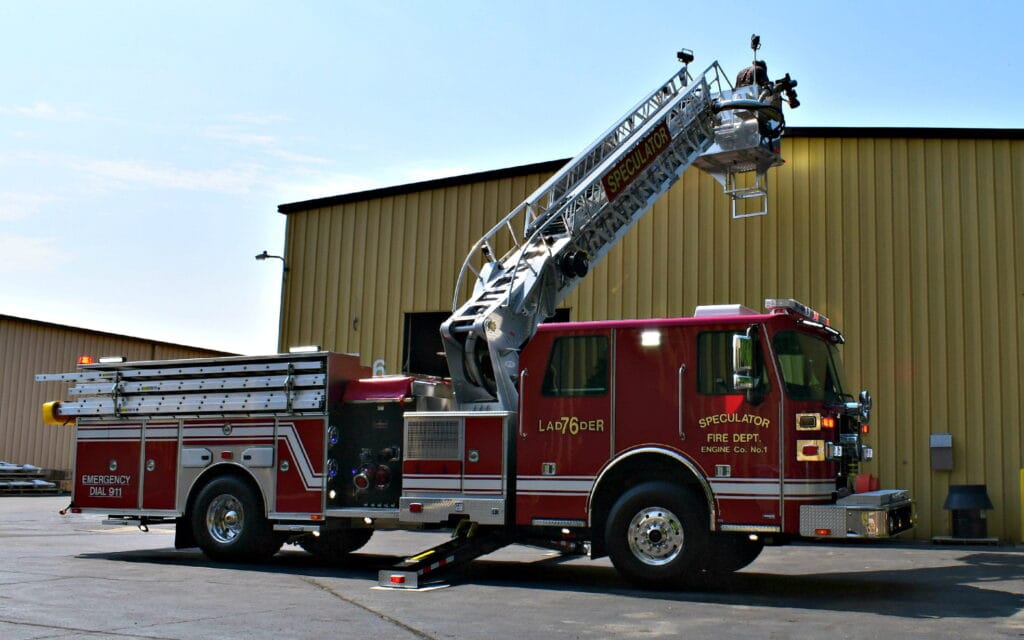

Truck Type:

Sutphen Corporation – HS #6699

Dealer – Vander Molen Fire Apparatus

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ – 9 ¼”

TRAVEL LENGTH: 43’ – 5 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side
  • Crosslay: (2) Crosslays 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Hinged Compartment Doors
  • Over 192 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package (85’: 16’R, 24’ 2-Section, 35’ 3-Section and 10’F)
  • Body: SAA-4 Left High/Right Intermed/Trans

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Brigade, Single Camera
  • Generator: 8KW Harrison HYD Generator
  • Pike Pole Storage Tubes (6)
  • Intercom System, FRC ACT 2-Station
  • Hannay Electric Cord Reel, 150’
  • Roto Ray Warning Light
  • Whelen Freedom 4 Lightbar
  • HiViz 3-Piece 12V LED Brow Light w/ ICC Lights
  • Boom Tracking Lights
