Delivery Date:
08/20/2019
Department Name:
Southwick Fire Department
Department City / State:
Southwick, MA
Truck Type:

Sutphen Corporation – HS #6409

Dealer – Five Star Fire

WHEEL BASE: 231”

TRAVEL HEIGHT: 10′ – 10”

TRAVEL LENGTH: 42’ – 11 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a Flat Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X 12, 455 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

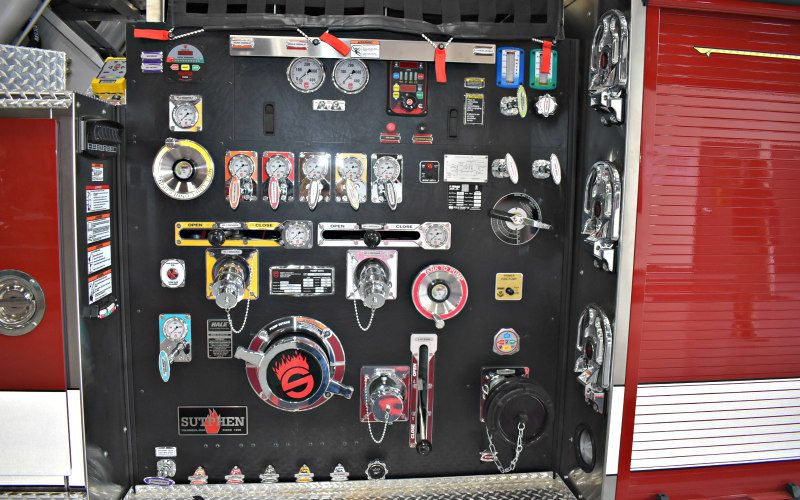

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
  • Monitor: (1) Elkhart Vulcan Manual Monitor with Stacked Tips and StreamShaper & (1) Cobra EXM w/ Streamshaper and SM1500E Nozzle
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslay with 1 ½” Swivel
  • 500-Gallon Water Tank
  • 25-Gallon Foam Tank
  • Foam System: Feecon, APH-1.5

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll-Up Compartment Doors
  • Over 192 cu. ft. Total Compartment Space
  • Alco-Lite Ladder Compliment (85’: 16’ Roof, 24’ 2-Section, 35’ 3-Section & 10’ Folding)
  • SAA-4: Left High / Right Intermed / Trans

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper Extension
  • Camera System, FRC, Inview Trueview
  • 6KW Smart Power Generator
  • Pike Pole Storage Tubes (3)
  • Federal Q2B Siren, Grille Mount
  • Hannay Electric Cord Reel, 150’ (1)
  • Whelen PFP2 12V LED Brow Light
  • Whelen Freedom 4 Lightbar
  • Whelen L31 Rear Beacons
  • Whelen PFH2 12V LED Scene Light
