Delivery Date:
10/22/2020
Department Name:
Seminole County Fire Department
Department City / State:
Seminole County, FL
Truck Type:

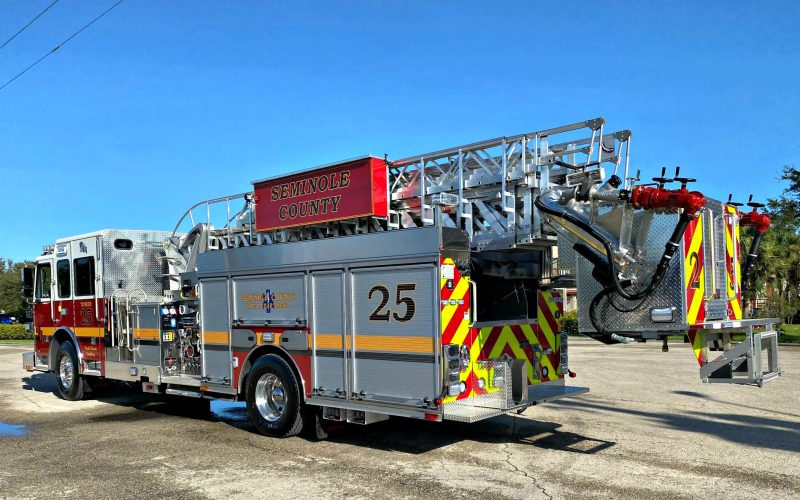

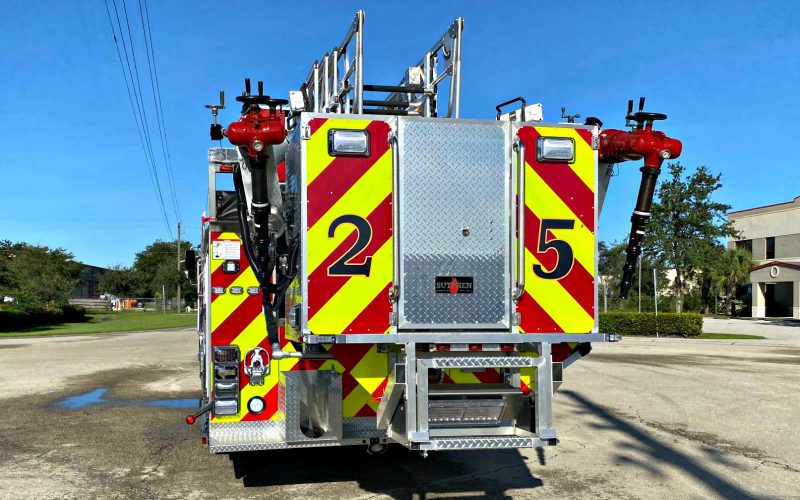

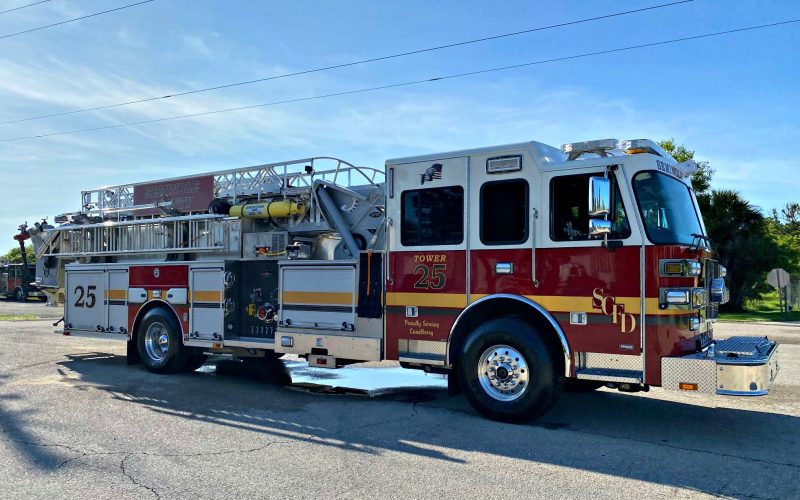

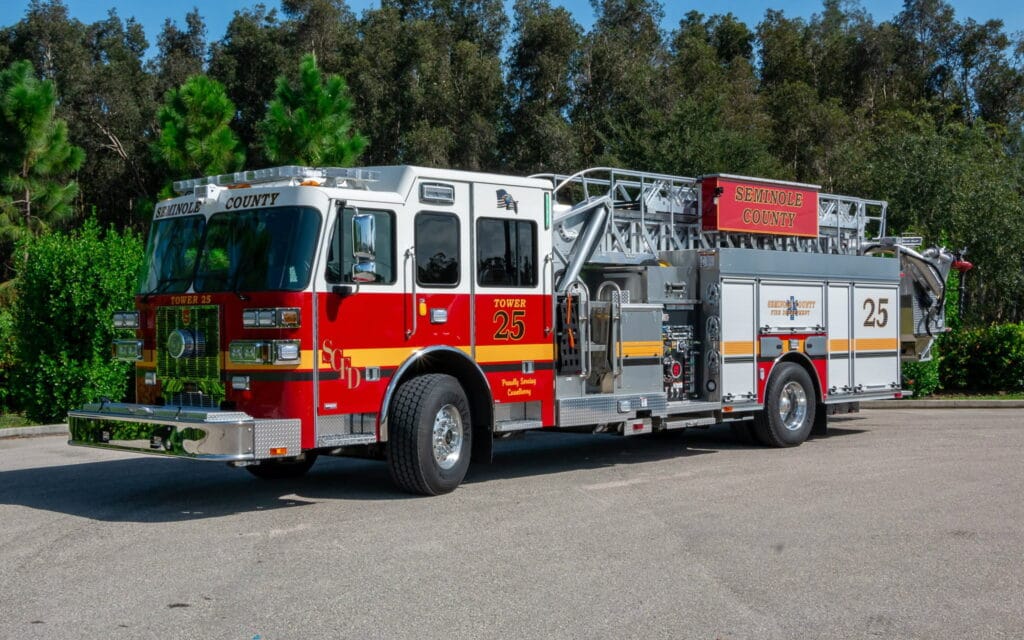

Sutphen Corporation – HS #6705

Dealer – South Florida Emergency Vehicles

WHEELBASE: 232”

TRAVEL HEIGHT: 10’ – 9 ¼”

TRAVEL LENGTH: 44’ – 3 ¾”

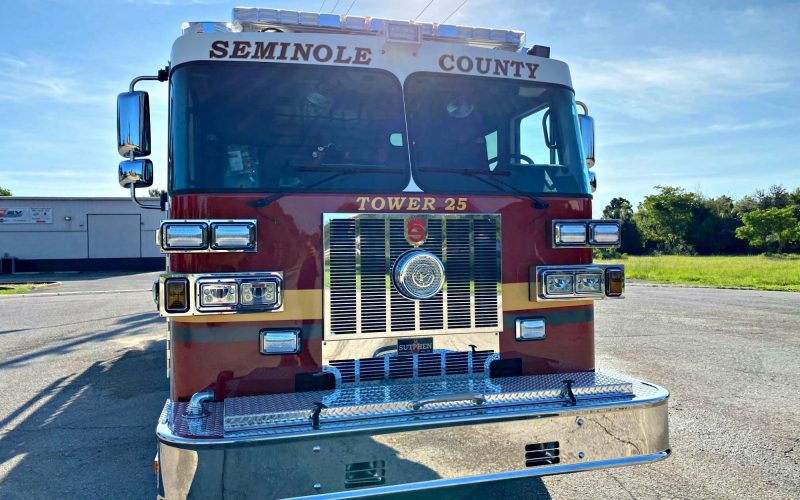

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
  • Speedlay: (2) Speedlays 200’ of 1.75” Hose Each
  • 500-Gallon Water Tank

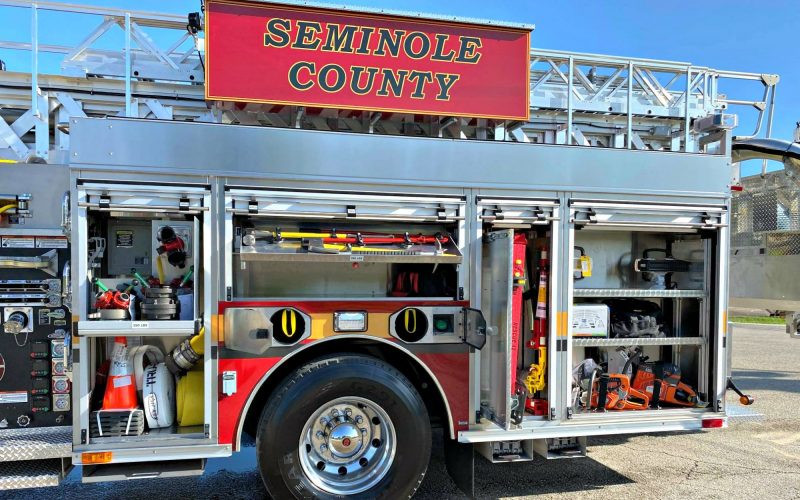

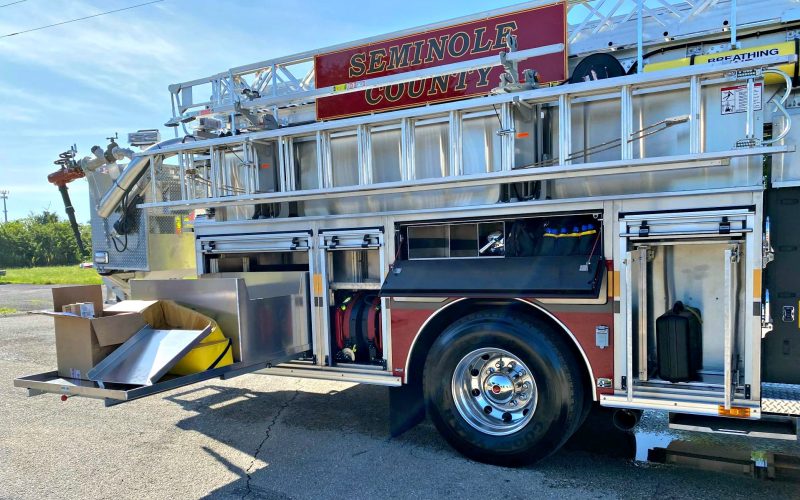

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • Amdor Roll Up Compartment Doors
  • Over 192 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package (85’: 16’R, 24’ 2-Section, 35’ 3-Section and (2) 10’F)
  • Body: SAA-4 Left High/Right Intermed/Trans

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B, Grille Mount
  • Rear Vision Camera
  • Generator: 10KW Smart Power HYD ER Series
  • Pike Pole Storage Tubes (3)
  • Intercom System, FRC ACT 2-Station
  • Hannay Electric Cord Reel, 150’
  • Whelen PFH1 12V LED Brow
  • Whelen Freedom 4 Lightbar
  • Whelen Freedom 21” LED Lightbar
  • Whelen MCFLED Rear Beacon
  • Whelen PFPAC2 120V LED Scene Light
  • FireTech 12V LED Boom Spotlights
