Delivery Date:
10/12/2018
Department Name:

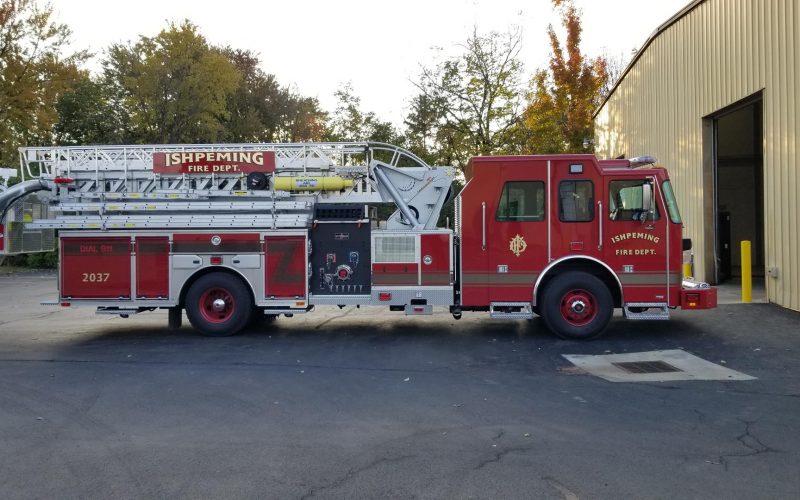

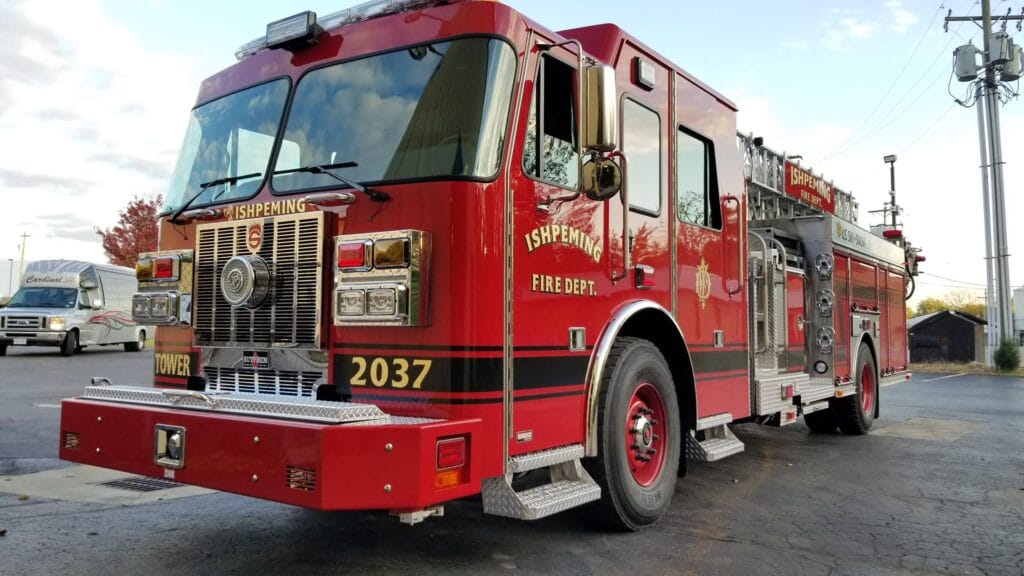

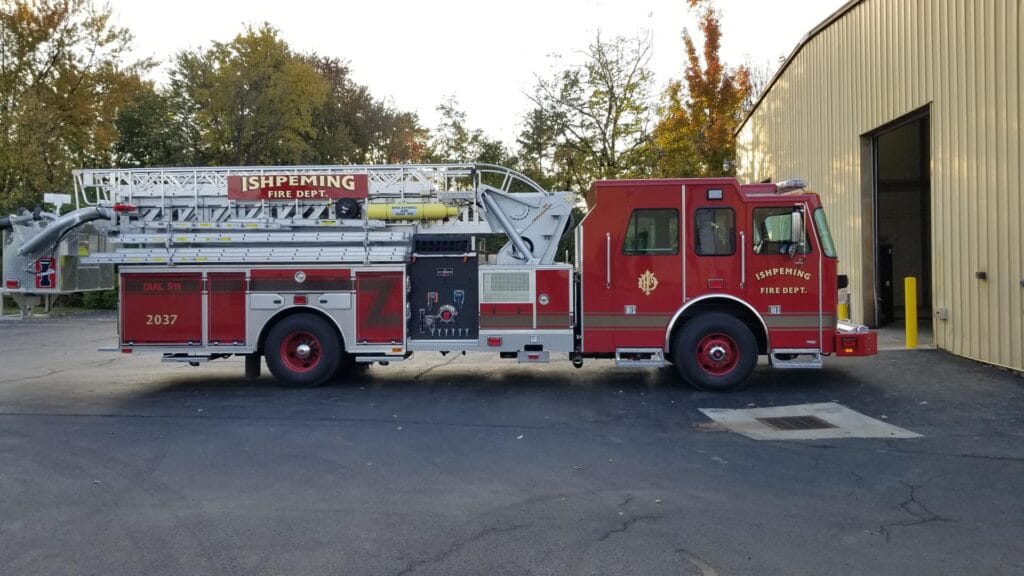

Ishpeming Fire Department
Department City / State:
Ishpeming, MI
Truck Type:
Sutphen Corporation – HS #6190
Dealer – Heritage Fire Equipment
WHEEL BASE: 232”
TRAVEL HEIGHT: 10’ – 9”
TRAVEL LENGTH: 43’ – 10 ½”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab with 10” Raised Roof
- Four-Door, Seven-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
- Monitor: Elkhart (1) 293 Manual & (1) Cobra EXM w/ Nozzles and Streamshaper
- Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
- 300-Gallon Water Tank
BODY: Sutphen
- Huck Bolted #304 Stainless Steel
- Amdor Roll-Up Compartment Doors
- 75 cu. ft. Total Compartment Space
- Alco-Lite Quint Ladder Compliment
- Left High/Right Intermed
OPTIONAL EQUIPMENT:
- 18” Bumper Extension
- Safety Vision SV-CLCD0-70, Camera System
- Hannay Electric Cord Reel, 150’ (1)
- 6KW Smart Power Generator
- FR Spectra 900-Q70, LED, Surface Mount Light
- Federal Q2B
- Code 3 PRIZM II LED, Warning Lights
