Delivery Date:
05/25/2019
Department Name:
Gwinnett County Fire/Emergency Services
Department City / State:
Lawrenceville, GA
Truck Type:

Sutphen Corporation – HS #6347

Dealer – Williams Fire Apparatus

WHEEL BASE: 221”

TRAVEL HEIGHT: 10’ – 9 ¼”

TRAVEL LENGTH: 42’ – 11”

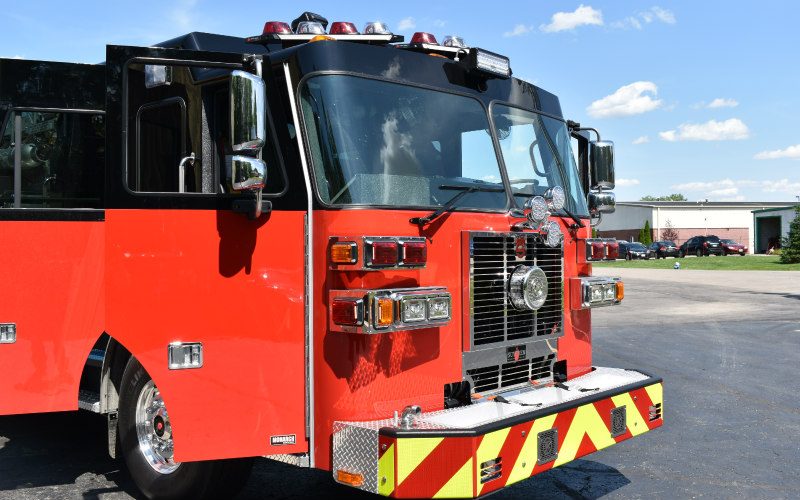

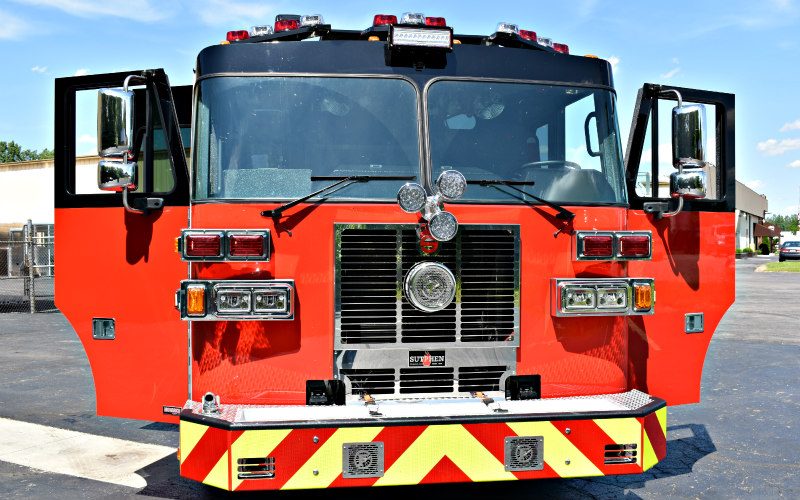

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X12, 500 HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5, EVS 4000

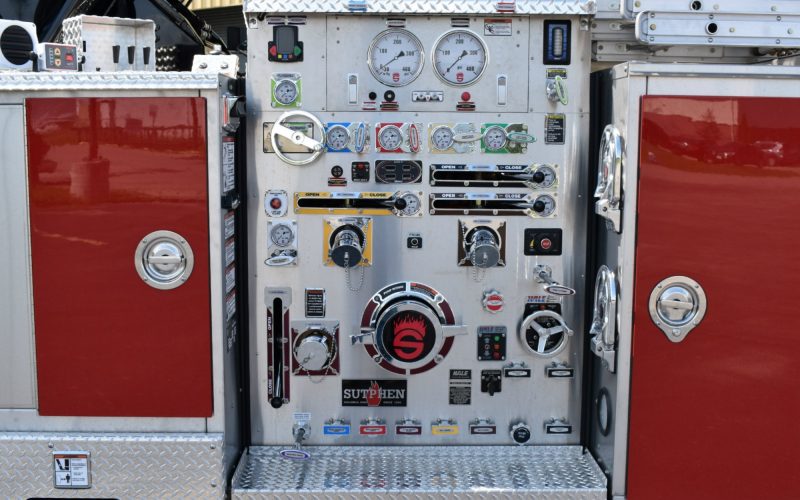

PUMP:                   Hale

  • QMAX-1500 GPM Single Stage
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 2 ½” Pipe to Left Rear, (1) 1 ½” Front Bumper
  • Monitors: (2) Akron 3470 Gemini Manual w/ (1) Akron 5160 GPM Nozzle & Streamshaper and (1) Stream Shaper & Stacked Tips
  • Crosslays: (2) 2” Valve-Piping 1 ½”
  • 400-Gallon Water Tank

BODY:                  Sutphen

  • HuckBolted #304 Stainless Steel
  • ROM Roll-Up Compartment Doors
  • Over 193 cu. ft. Total Compartment Space
  • Alco-Lite Quint Ladder Compliment (85’: 16’R, 24’ 2-Section, 35’ 3-Section & 10’F)
  • Left Intermed/Right High/Trans

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel
  • Brigade Backeye 360, Camera System
  • Federal Q2B Siren
  • 10KW SmartPower Generator
  • Hannay Electric Cord Reel, 150’ (1)
  • Little Fiant Defender 17’
  • Double Pike Pole Mount
  • Federal Signal VSLR3S-NFPA1 3-Pod LED Light Bar
  • Go-Light Stryker
  • Federal Signal Commander 12V LED Brow Light
