Delivery Date:
10/20/2022
Department Name:

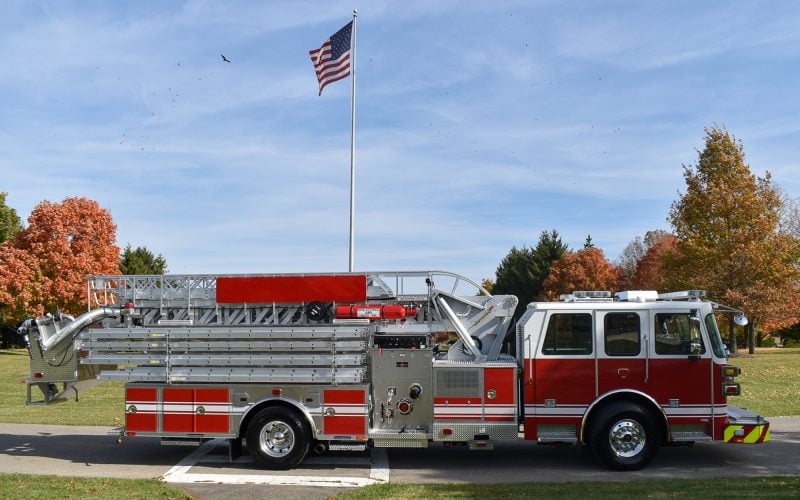

Greensboro Fire Department
Department City / State:
Greensboro, NC
Truck Type:

Sutphen Corporation – HS #7215

WHEELBASE: 221”

TRAVEL HEIGHT: 10’ – 10”

TRAVEL LENGTH: 43’ – 5 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ Flat Roof

  • Four-Door, Five-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Delco-Remy, 430 AMP
  • Transmission: Allison Gen 5, EVS4500

PUMP:                 Hale

  • QMAX-1500 GPM 6” Suction, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Front/Left Side
  • Monitor: (2) TFT Monsoon Manual Y4-M15A, w/ Apollo Stream Shapers 3488 & Elkhart ST-191A Stacked Tips (2)
  • Crosslays: (2) 2” Valve Piping, 1 ½” Swivel
  • 300-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolt #304 Stainless Steel
  • Hinged Compartment Doors, Painted
  • Over 162 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 16’ R (2), 28’ 2-Section (2), 35’ 3-Section, & 10’ Folding
  • Body: SAA-1, Left High / Right Low

ADDITIONAL EQUIPMENT:

  • 24” Formed Steel Channel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC ACT 2-Station
  • Generator: 10KW Smart Power
  • Hannay Electric Cord Reel, 150’ (2)
  • Camera System: Safety Vision SV-CLCD0-70
  • Roto-Ray Warning Light
  • Whelen Freedom 4 Rotabeam 81” Lightbar
  • Opticom
  • Whelen Freedom 4 23.35” Rotabeam Lightbar
  • FireTech FT-MB-18 12V LED Scene Light
  • FireTech WL-X-9 LED Work Lights
  • Traffic Advisor (6) Whelen ION LED
