Delivery Date:
10/12/2018
Department Name:
Carroll County Fire
Department City / State:
Carroll County, GA
Truck Type:

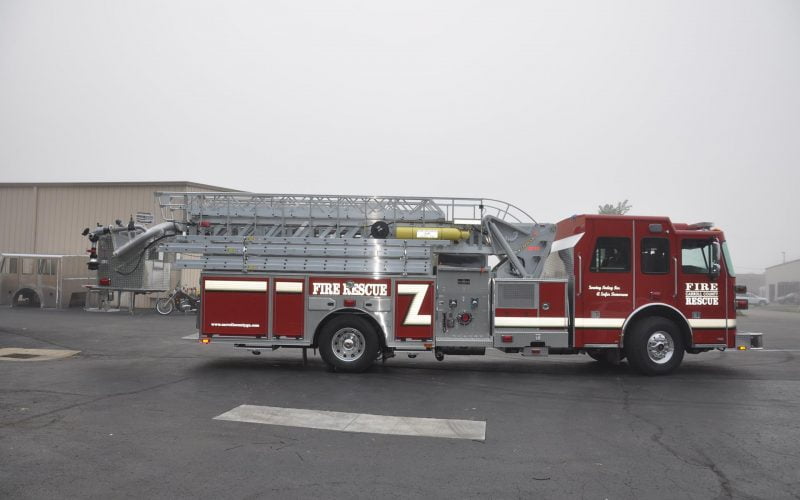

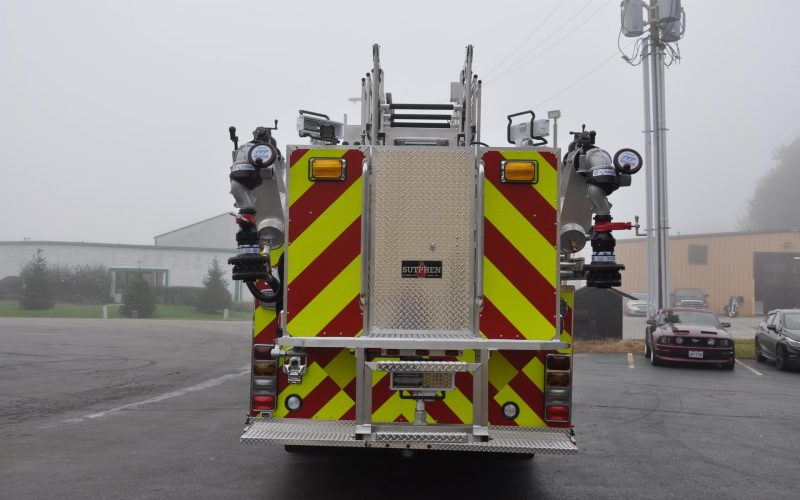

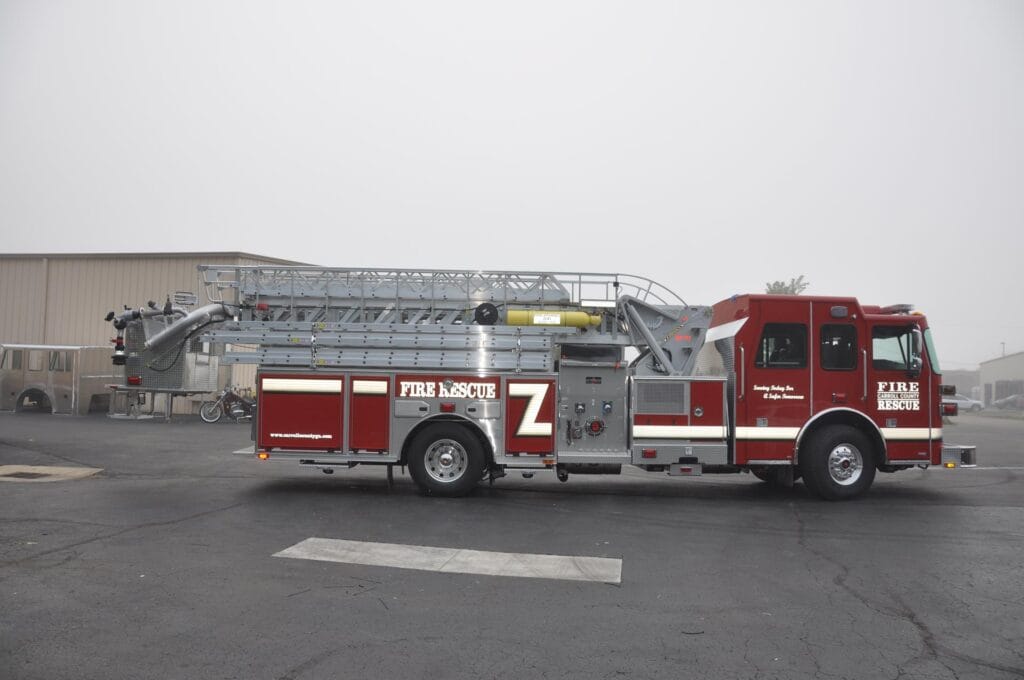

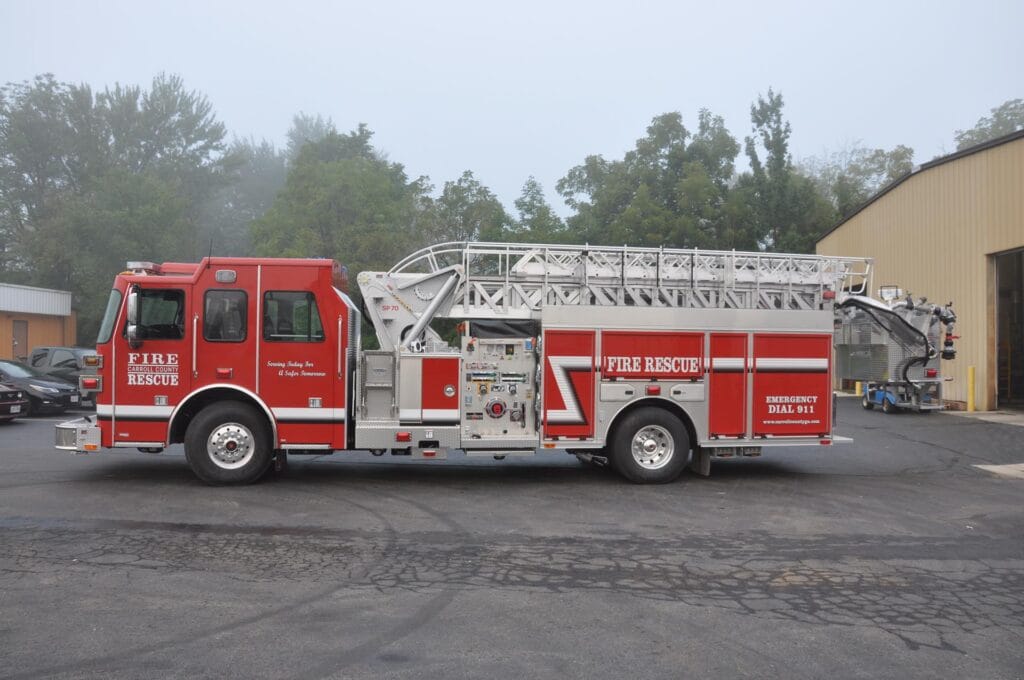

Sutphen Corporation – HS #6191

Dealer – Williams Fire Apparatus

WHEEL BASE: 221”

TRAVEL HEIGHT: 10’ – 9 ¼”

TRAVEL LENGTH: 42’ – 11 ½”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab with a 10” Raised Roof

  • Four-Door, Five-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins ISX 12, 450 HP
  • Alternator: Leece Nevile, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

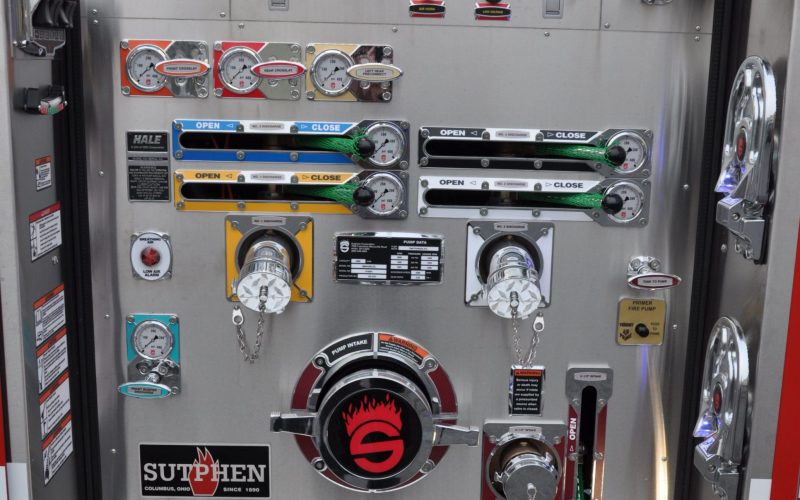

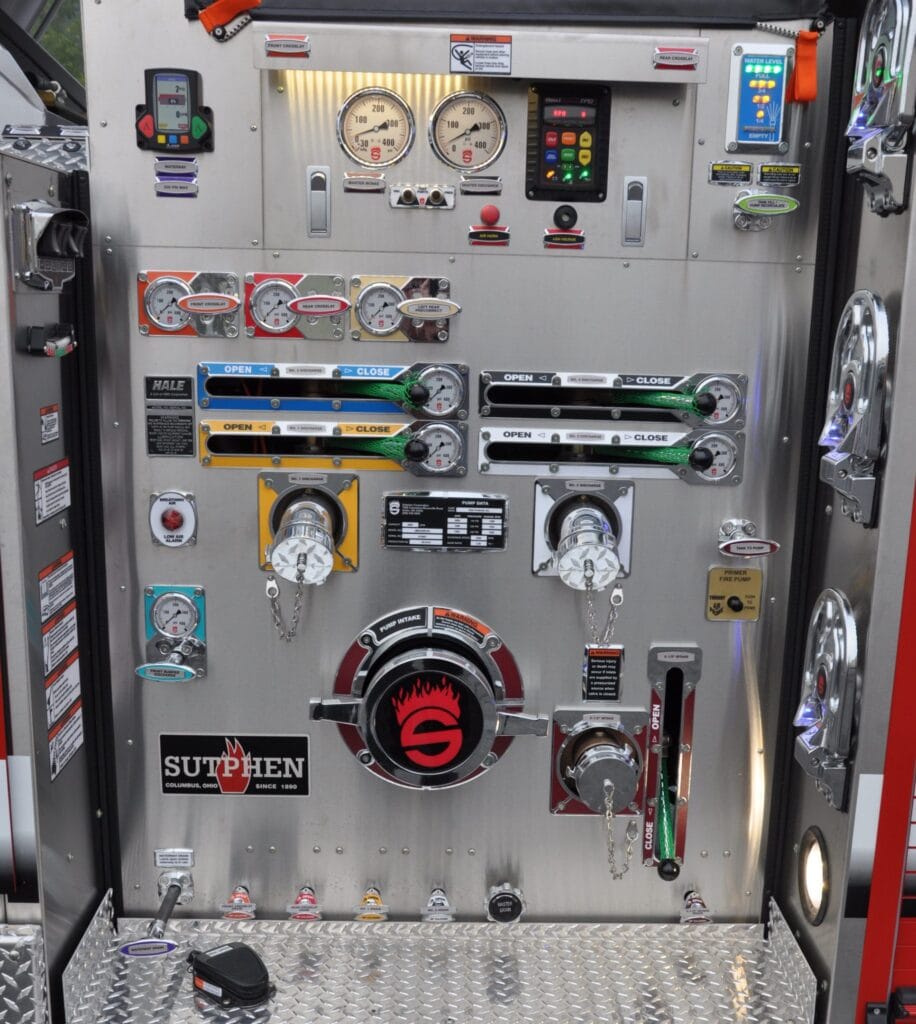

PUMP:                 Hale

  • QMAX-2000 GPM Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 1 ½” Front Bumper
  • Crosslays: (2) 2” Valve-Piping, 1 ½” Swivel

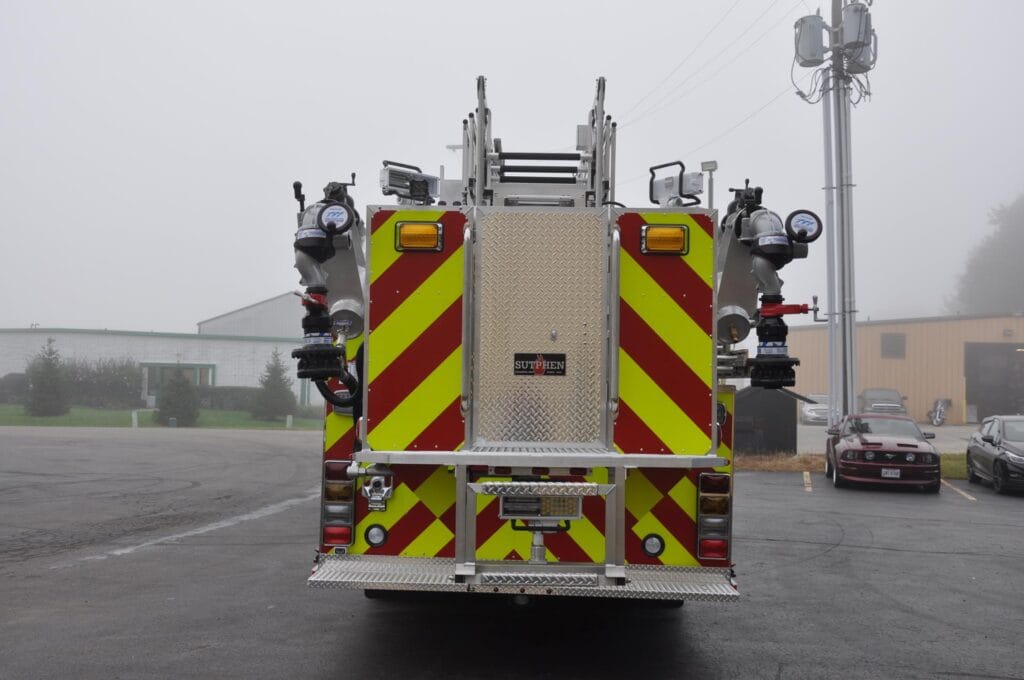

  • Monitors: (2) TFT Monsoon 1,250 GOM with TFT Masterstream 1250 Nozzles
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huck Bolted #304 Stainless Steel
  • 75 cu. ft. Total Compartment Space
  • Duo-Safety Quint Ladder Compliment
  • Left High/ Right Intermed

OPTIONAL EQUIPMENT:

  • 18” Bumper Extension
  • Safety Vision SV-CLCD0-70, Camera System
  • Screaming Eagle Siren
  • 6KW Smart Power Generator
  • Pike Pole Storage Tubes (3)
  • Whelen M9 LED Scene Lights
  • Intercom System, FRC ACT 2-Station
