Delivery Date:
04/01/2018
Department Name:
Southmont Fire Department
Department City / State:
Johnstown, PA

WHEEL BASE: 215”

TRAVEL HEIGHT: 9’ 10”

TRAVEL LENGTH: 32’ 8”

CHASSIS:              Sutphen 62” cab with 10” half raised roof

  • Four-Door, Six Person Cab
  • Front Axle and Suspension: 20,000 lbs.
  • Rear Axle and Suspension: 27,000 lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

PUMP:                  Hale

  • QMAX 1500 GPM Single Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 3” Deck Gun
  • 1000 Gallon Water Tank
  • 30 Gallon Foam Tank

BODY:                   Sutphen

  • Aluminum
  • 222 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Power and Ground for Radio Power at Pump
  • Fuel Gauge on Pump Panel

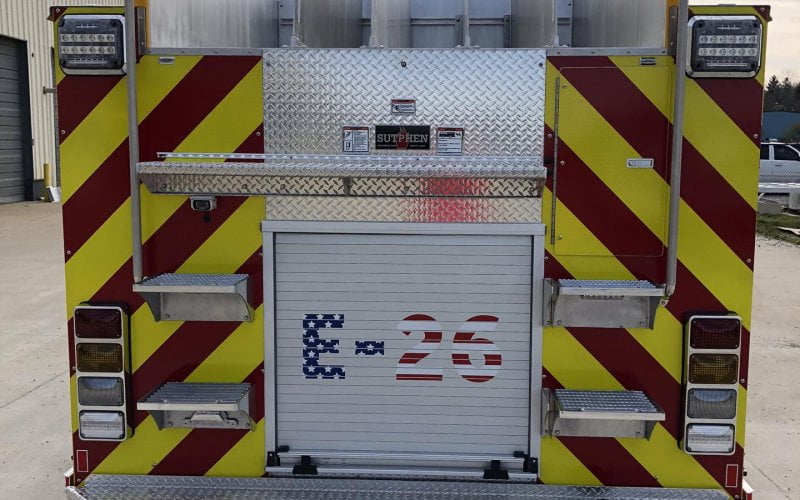

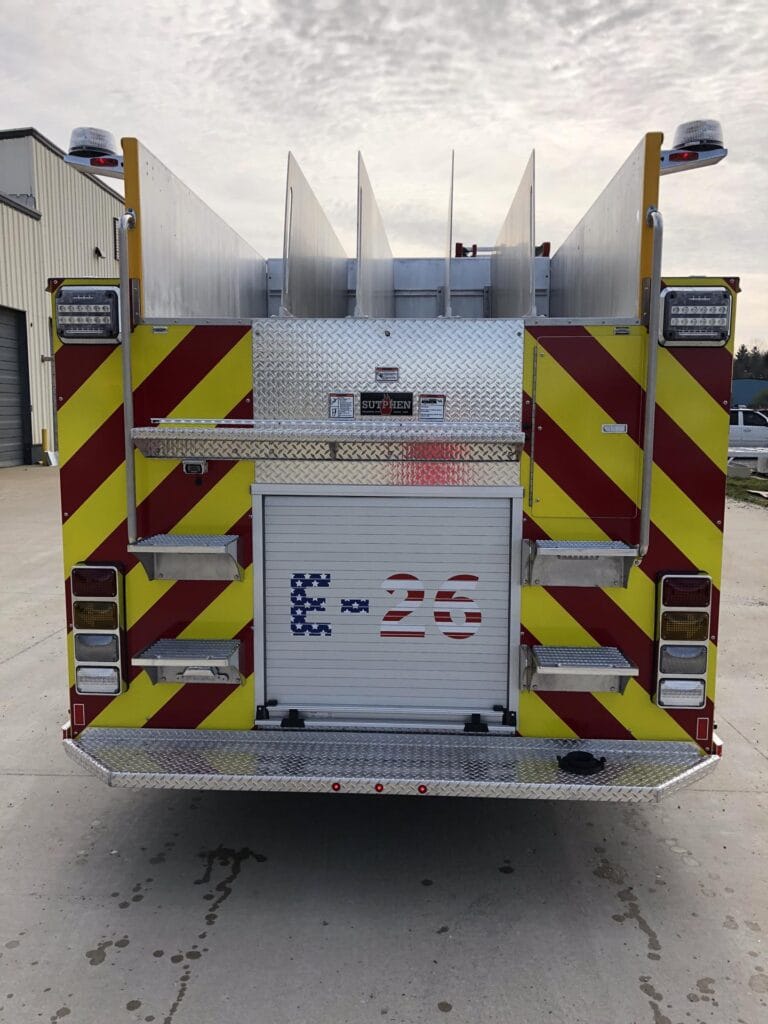

  • Rear Tailboard To Extend 12” From Body
  • Full Width Treadplate Step Below Hose Bed Above Rear Compartment
  • Auxiliary Cab Steps

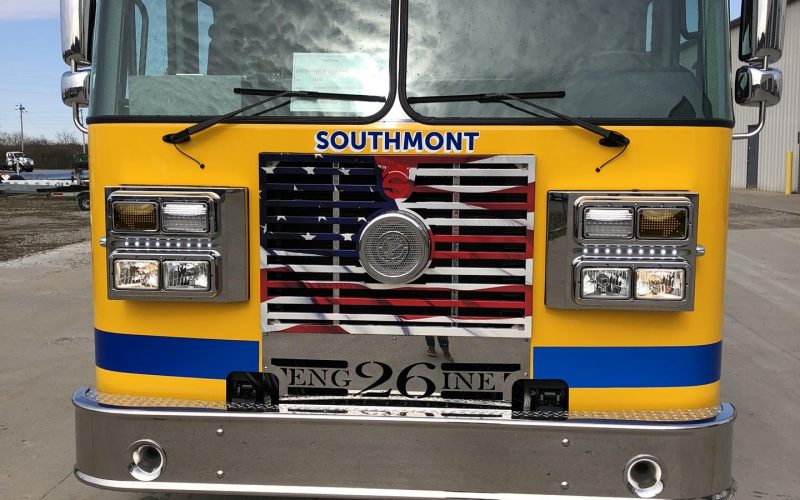

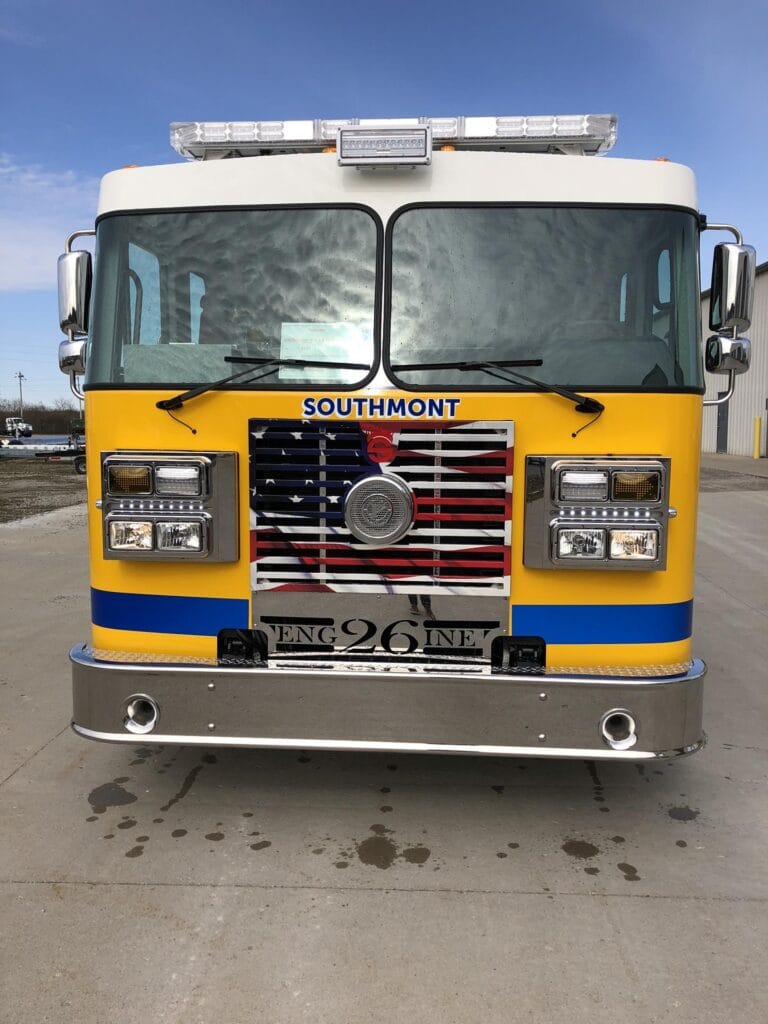

  • Laser Routed Lower Grille with Backlighting
  • 6” Front Bumper Extension
  • Foam System Akron 125 GPM 3126 By-Pass System w/Flush to a Discharge Line for One Foam Tank
