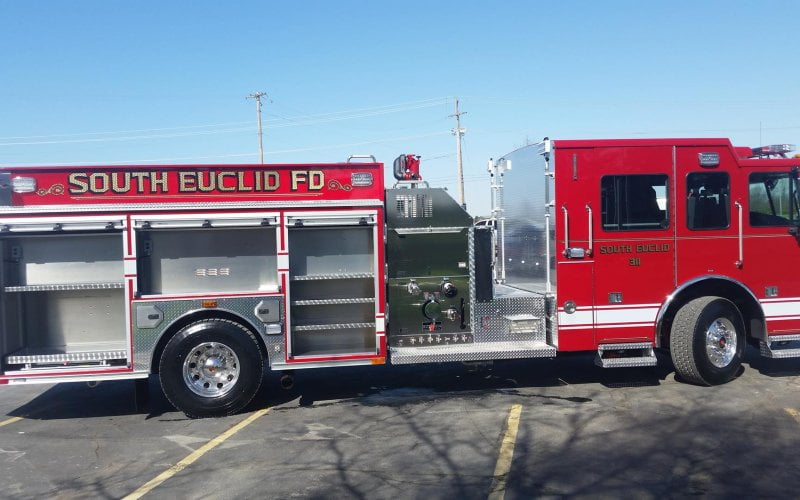

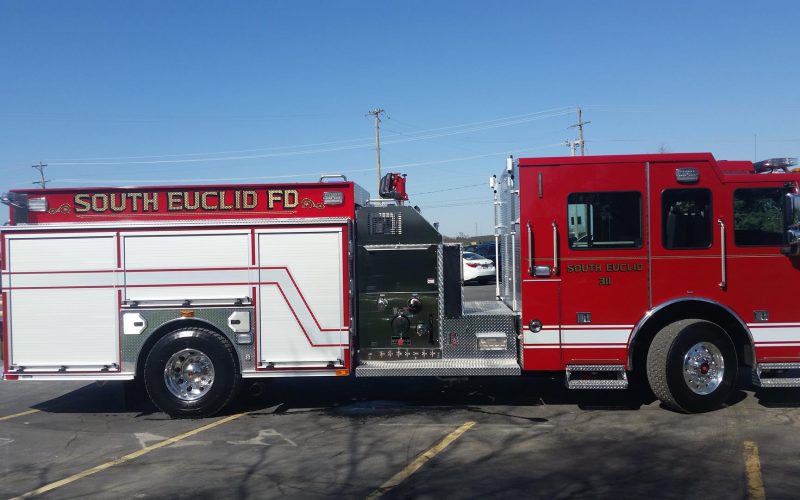

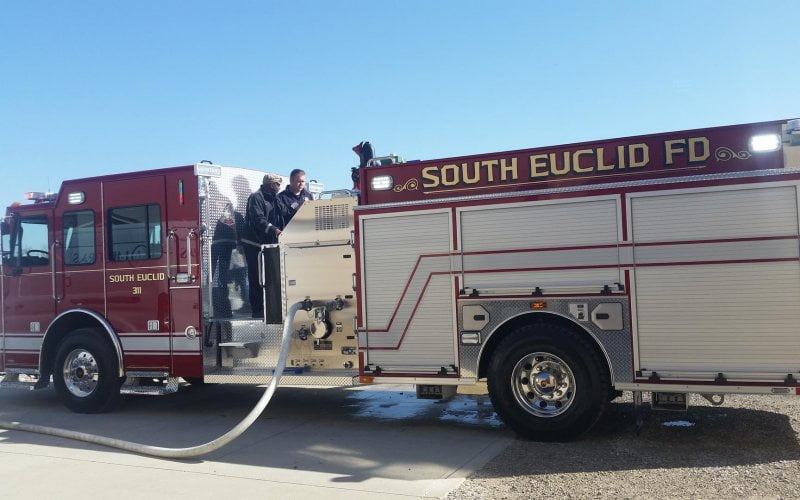

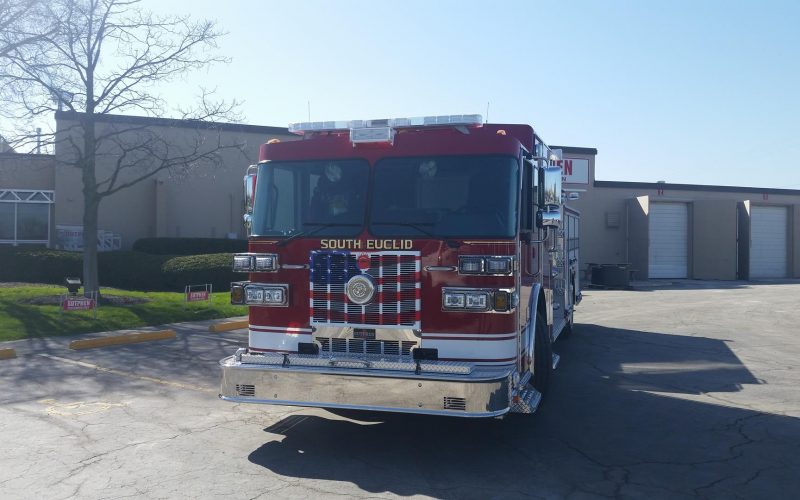

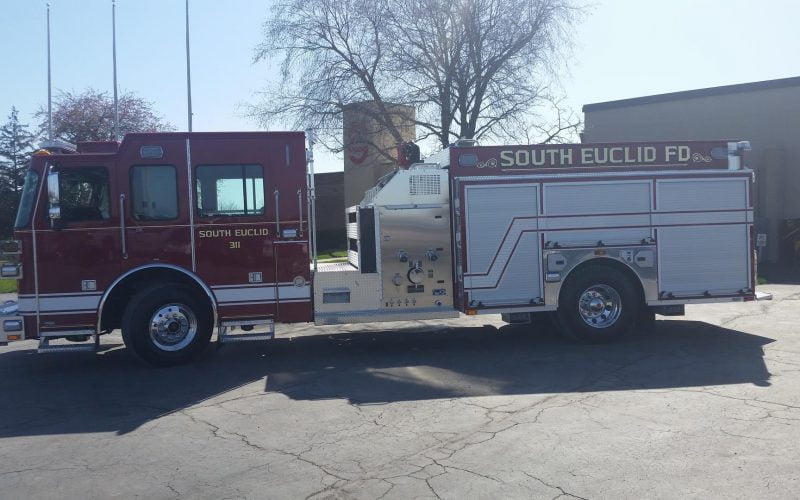

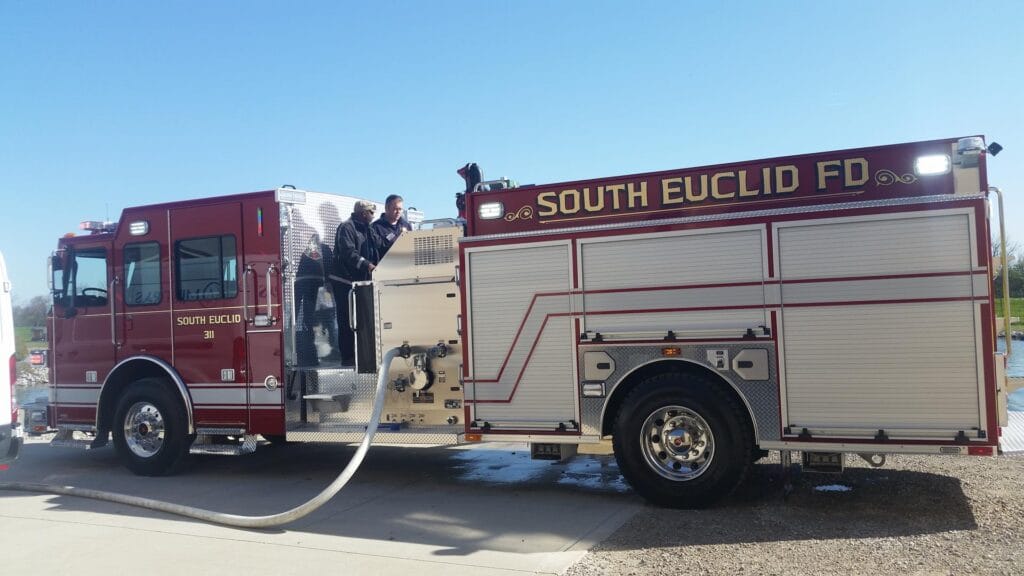

Delivery Date:
04/01/2018
Department Name:
South Euclid Fire Department
Department City / State:
South Euclid, OH

WHEEL BASE:  226″

TRAVLE HEIGHT: 9′-8″ ±2″

TRAVEL LENGTH: 35′

CHASSIS:              Sutphen 73” Cab with 10” half raised roof

  • Four-Door, Five-Person Cab
  • Front Axle and Suspension: 20,000 Lbs.
  • Rear Axle and Suspension: 27,000 Lbs.
  • Engine: Cummins ISL 9 450HP
  • Alternator: Leece Neville 320 AMP
  • Transmission: Allison Gen 5

PUMP:                  Hale

  • QMAX 1500 GPM Single Stage
  • Discharge: (2) 2.5” Left, 3” Right, 2.5” Right, 2.5” Left Rear, 2.5” Right Rear, 1.5” Front Bumper, 2” Plumbing, 3” Deck Gun
  • 1000 Gallon Water Tank

BODY:                   Sutphen

  • Aluminum

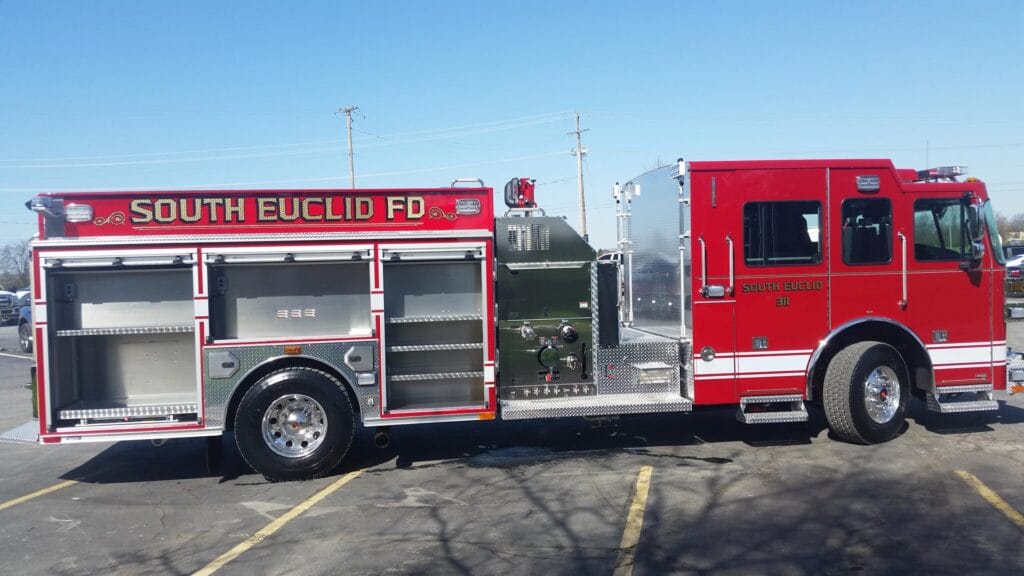

  • 222 cu. ft. Total Compartment Space

OPTIONAL EQUIPMENT:

  • Battery Charger PRO-NAUTIC 1250
  • Plymovent Adapter
  • Extra Handrail
  • Auxiliary Cab Steps
  • Pressure Control Class 1 Sentry and Twister
  • 45 Degree Corners on Tailboard
  • Roll up Door Drip Pan/Splash Guard
  • Hook Storage
