Delivery Date:
11/20/2020
Department Name:
Wallingford Fire Department
Department City / State:
Wallingford, CT

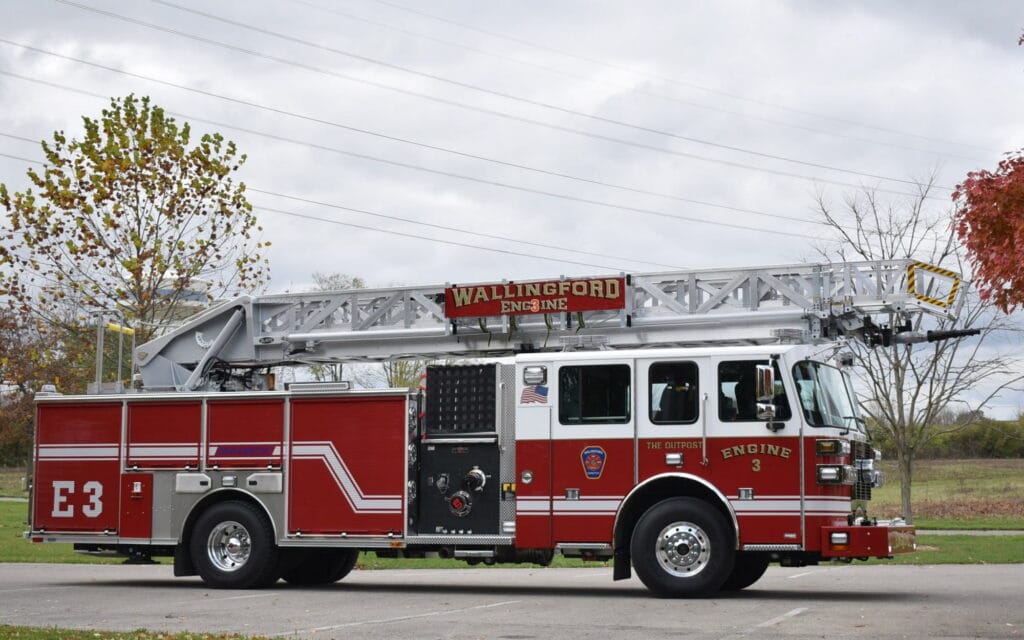

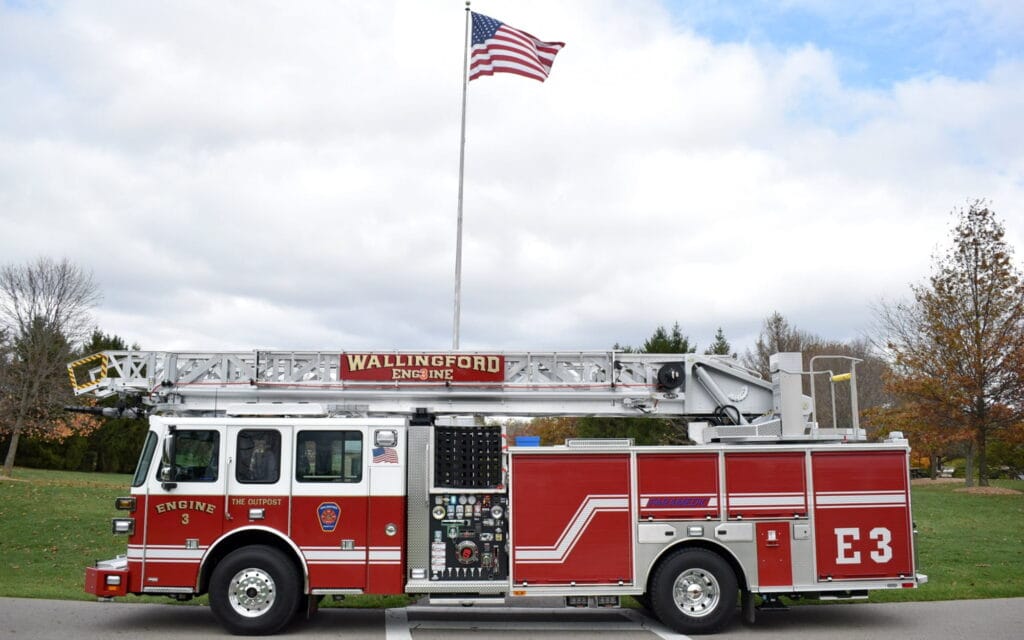

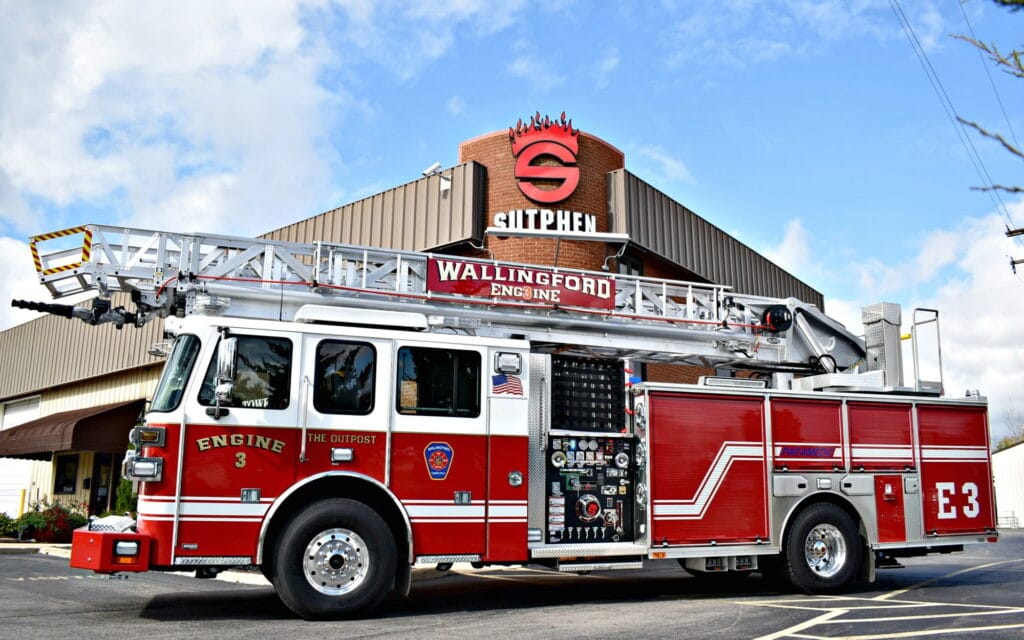

Truck Type:

Sutphen Corporation – HS #6731

WHEELBASE: 217”

TRAVEL HEIGHT: 12’

TRAVEL LENGTH: 37’ – 11 ¼”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 35,000 lbs
  • Engine: Cummins X 12, 455 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS4000

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (1) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslay: (2) 2 ½”, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 500-Gallon Water Tank

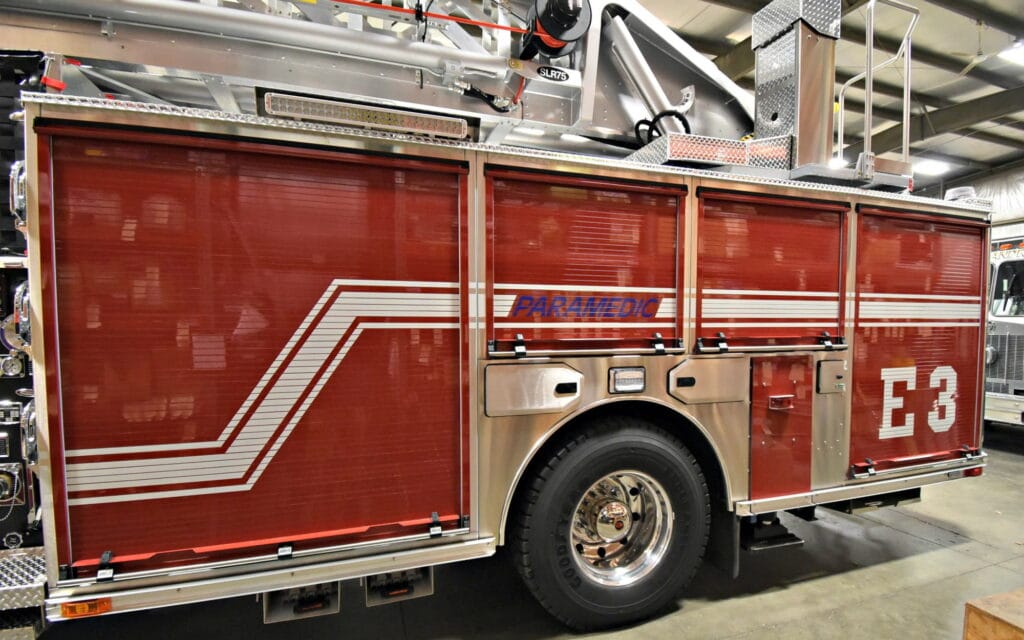

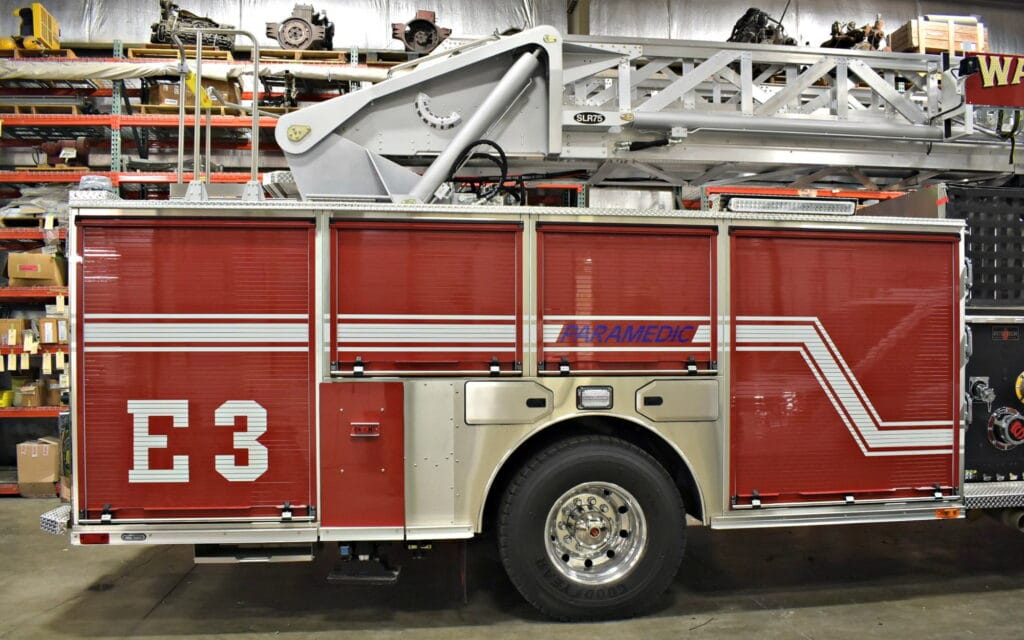

BODY:                  Sutphen

  • AMDOR Roll-Up Compartment Doors

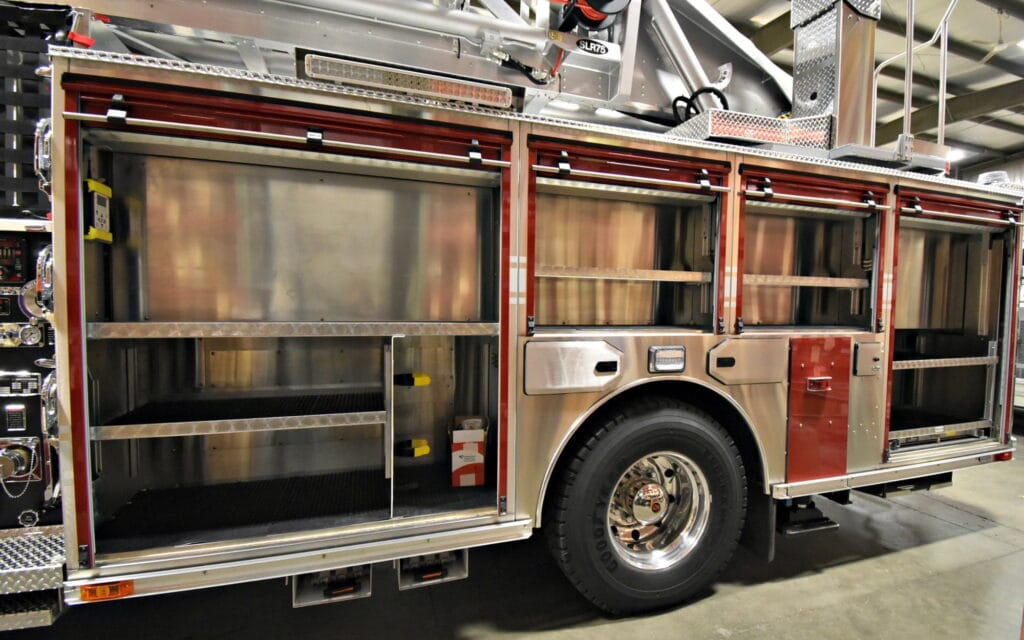

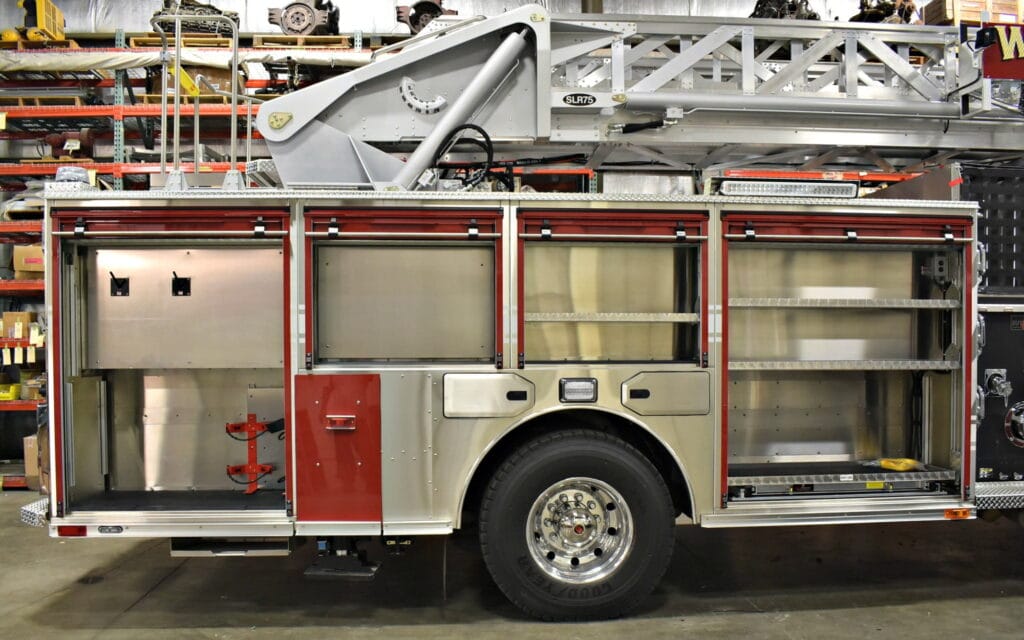

  • Over 190 cu. ft. Total Compartment Space
  • Duo-Safety Ladder Package (85’: (2) 16’ Roof, 24’ 2-Section, 35’ 3-Section & 12’ Folding)
  • Body: SAA-4, Left High/Right Intermed / Trans
  • Monitor: TFT Y5-E11A-L Typhoon Elec. w/ Stacked Tips and Stream Straightener

ADDITIONAL EQUIPMENT:

  • 18” Formed Steel Channel Bumper
  • Federal Q2B Siren, Grille Mount
  • Pike Pole Storage Tubes (3)
  • Camera System: FRC, Inview Trueview, Single Camera
  • Intercom System: FRC ACT 2-Station
  • Whelen FNMINI Lightbar
  • Whelen PFH2 12V LED Brow Lights (2)
  • Whelen Pioneer Micro Boom Spot Lights (4)
  • Whelen 900LED Scene Light
  • Whelen Two Piece Traffic Advisor
