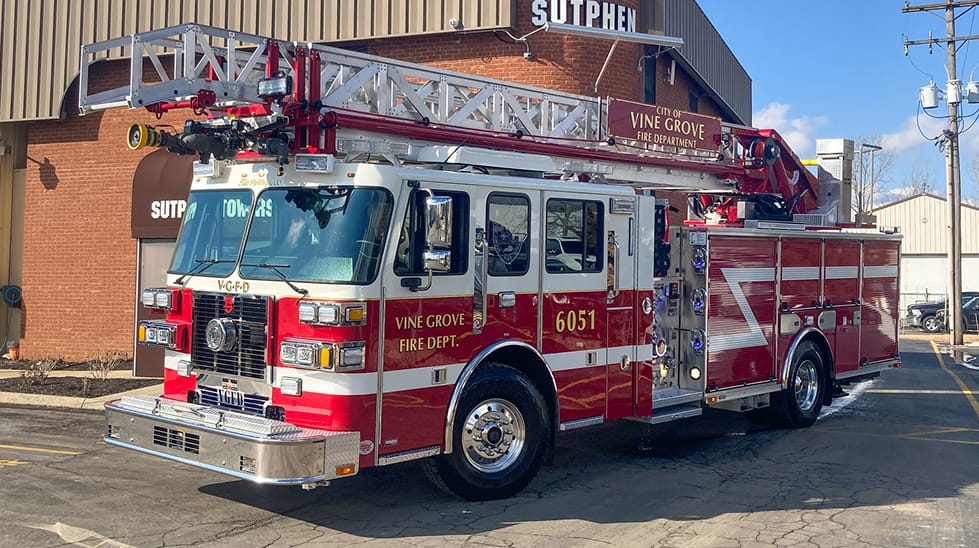

Department Name:
Vine Grove Fire Department
Department City / State:
Vine Grove, KY
Truck Type:
Dealer – Heritage Fire Equipment
WHEELBASE: 217”
TRAVEL HEIGHT: 12’
TRAVEL LENGTH: 37’ – 11 ¼”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab w/ a Flat Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 35,000 lbs
- Engine: Cummins X 12, 500 HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4500
PUMP: Waterous
- CSU-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Pipe Right Rear, (1) 1 ½” Front Bumper, (1) 2 ½” Auxiliary Waterway
- Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
- 500-Gallon Water Tank
BODY: Sutphen
- Huckbolt #304 Stainless Steel
- Amdor Roll-Up Compartment Doors
- Over 178 cu ft. Total Compartment Space
- Duo-Safety Ladder Package: 85’: 16’R, 24’ 2-Section, 35’ 2-Section & 10’ F
- Body: SAA-RM1, Left High / Right High
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Intercom System: FRC, Act 2-Station
- Camera System: FRC, Inview Trueview, Two Cameras
- FRC Spectra 20K LED Brow Lights (2)
- Whelen Freedom F4NMini Lightbars
- FRC Spectra 120V 20K Scene Light
- Whelen MCFLED Rear Beacons
- Two Piece Traffic Advisor
MONITOR:
- Elkhart 7205 Cobra EXM w/ SM1500E Nozzle
