Delivery Date:
10/19/2022
Department Name:
Troy Fire Department
Department City / State:
Troy, MI
Truck Type:

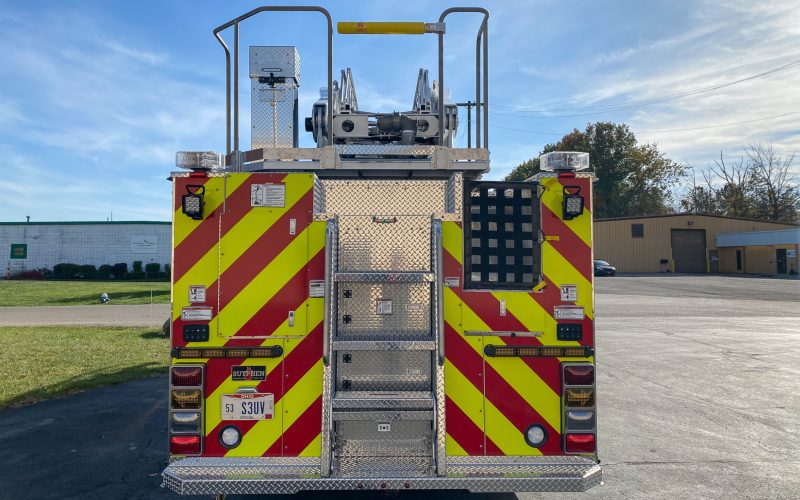

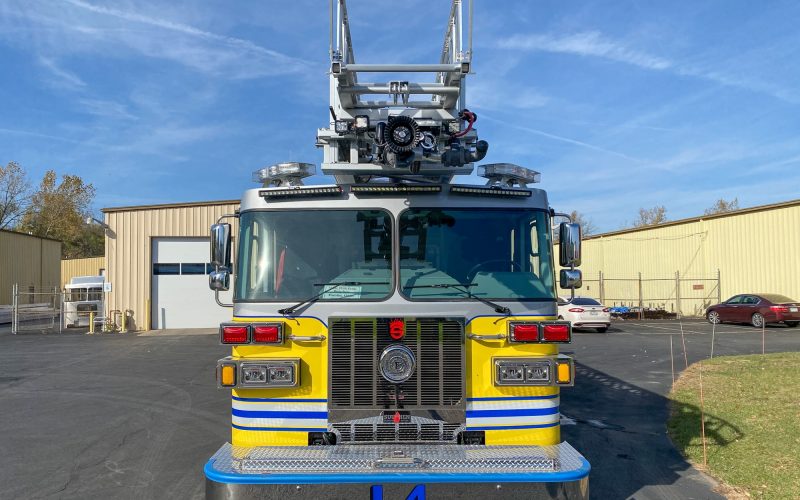

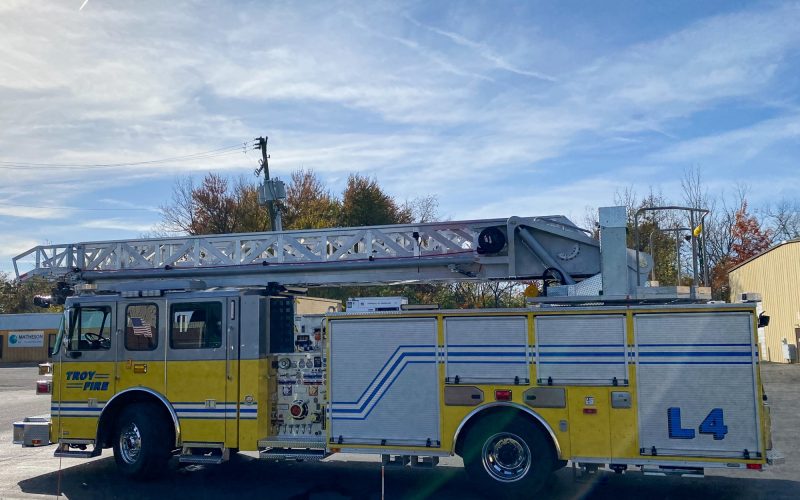

Sutphen Corporation – HS #7185

Dealer – Apollo Fire Equipment

WHEELBASE: 206”

TRAVEL HEIGHT: 11’ – 9 ½”

TRAVEL LENGTH: 37’ – 11 ¼”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ Flat Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 35,000 lbs
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-2000 GPM 6” Suction, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Monitor: TFT Y4-E11A-P-01 Monsoon Electric w/ M-ERP-1500 Nozzle
  • Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolt #304 Stainless Steel
  • Amdor Roll-Up Compartment Doors
  • Over 178 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 16’ R (2), 24’ 2-Section, 35’ 3-Section, & 10’ Folding
  • Body: SAA-RM1, Left High / Right High

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC ACT 2-Station
  • Generator: 6KW Smart Power HR Series
  • Hannay Electric Cord Reel, 175’ (2)
  • Camera System: Voyager 3
  • Roto-Ray Warning Light
  • FireTech 3-Piece 72” LED Brow Light w/ ICC Lights
  • Whelen FNMINI Lightbar
  • FireTech FT-BG2-R3-26 12V LED Scene Light
  • FireTech LED Boom Spot Lights
  • FireTech 12V LED Work Lights
  • Whelen Traffic Advisor
