Delivery Date:
08/15/2017
Department Name:
Pinellas Park Fire Department
Department City / State:
Pinellas Park, FL
Truck Type:
WHEEL BASE: 217”
TRAVEL HEIGHT: 11’- 11 ½”
TRAVEL LENGTH: 37’-11”
CHASSIS: Sutphen 73” extended cab with flat roof
- Four-Door, Five-Person Cab
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 35,000 lbs
- Engine: Cummins ISL 9, 450 HP
- Alternator: Niehoff, 360 AMP
- Transmission: Allison Gen 5, EVS 3000

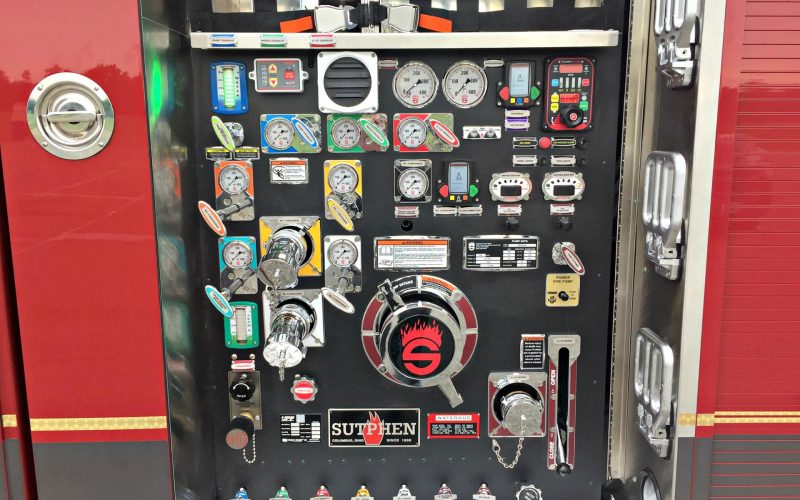

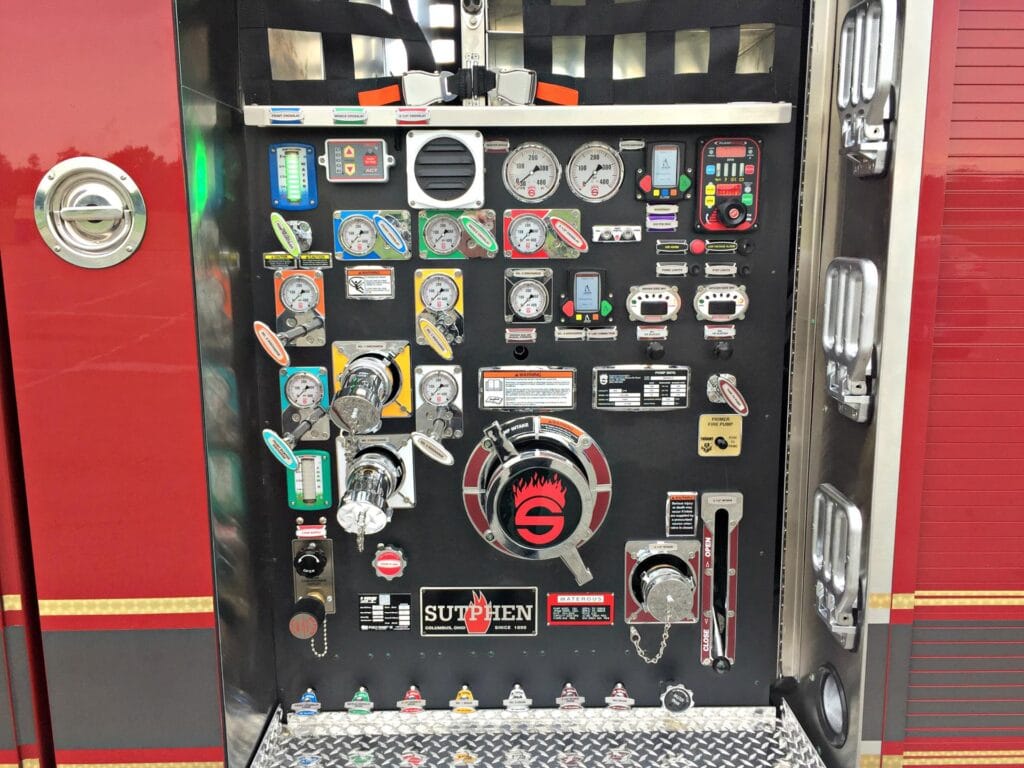

PUMP: Waterous
- CSU-2000 GPM
- Discharge: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper, (1) 2 ½” Tip of Waterway
- 30-Gallon Foam Tank
- Elkhart Foam Supply System
- 500-Gallon Water Tank
BODY: Sutphen
- Stainless Steel
- Amdor Roll-Up Compartment Doors
- 54 cu. ft. Total Compartment Space
- RM, Left High/ Right High/ Split Depth
OPTIONAL EQUIPMENT:
- 10KW Harrison, MCR Stealth Generator
- Hannay Electric Cord Reel, 150’
- Warning Lights, Whelen
- Scene Lights, Whelen
- Rear Vision Camera
- Federal Q2B
- 30” Bumper
- Intercom System, FRC ACT 3-Station
- Monitor: Elkhart 7205 Cobra EXM w/ SM1500 E Nozzle
