Delivery Date:
02/15/2023
Department Name:
Meadville Fire Department
Department City / State:
Meadville, PA
Truck Type:
Sutphen Corporation – HS #7273
Dealer – FAST of the Allegheny Mountains
WHEELBASE: 206”
TRAVEL HEIGHT: 11’ – 10 ½”
TRAVEL LENGTH: 37’ – 11 ¼”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ a Flat Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 35,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS3000

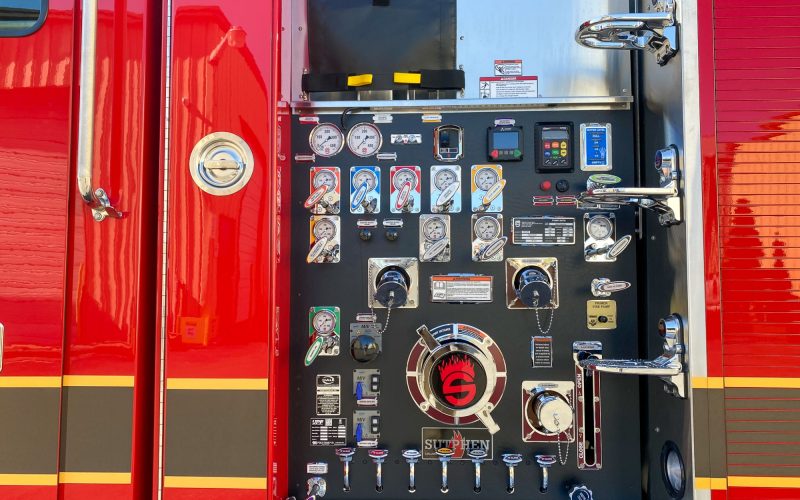

PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Front of Main Hosebed, (1) 2” Right/Front Main Hosebed, (1) 1 ½” Front Bumper
- Monitor: Elkhart 7205 Cobra EXM w/ SM1500 E Nozzle
- Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
- 500-Gallon Water Tank
BODY: Sutphen
- Huckbolt #304 Stainless Steel
- Amdor Roll-Up Compartment Doors
- Over 185 cu ft. Total Compartment Space
- Duo-Safety Ladder Package: 16’ DRL, 16’R, 24’ 2-Section, 35’ 3-Section & 10’F
- Body: SAA-RM1, Left High / Right Low / High
ADDITIONAL EQUIPMENT:
- 24” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Intercom System: FRC ACT 2-Station
- Camera System: FRC, Inview Trueview, Single Camera
- FireTech 3-Piece 72” LED Brow Light w/ Integrated ICC Lights
- Whelen FNMINI Lightbar
- FireTech LED Boom Spot Lights
- FireTech 30” 12V LED Scene Light
- FireTech Laser Cannon Lights
- FireTech 12V LED Flood Lights
