Delivery Date:
11/23/2022
Department Name:
Harris County ESD
Department City / State:
Houston, TX

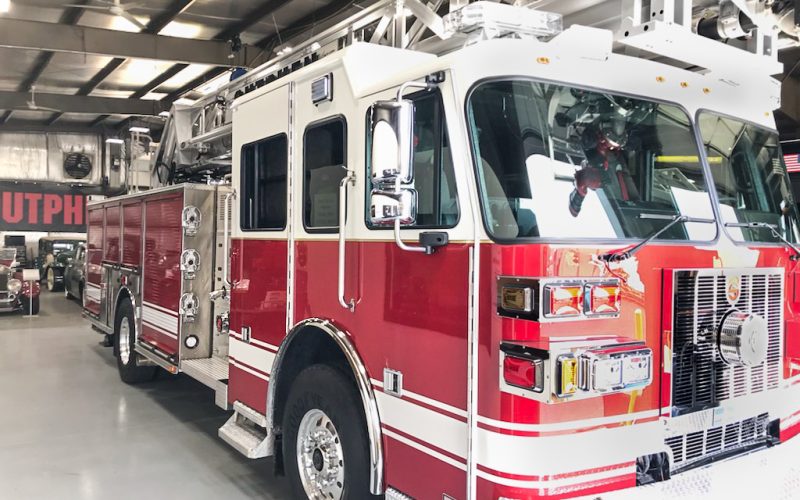

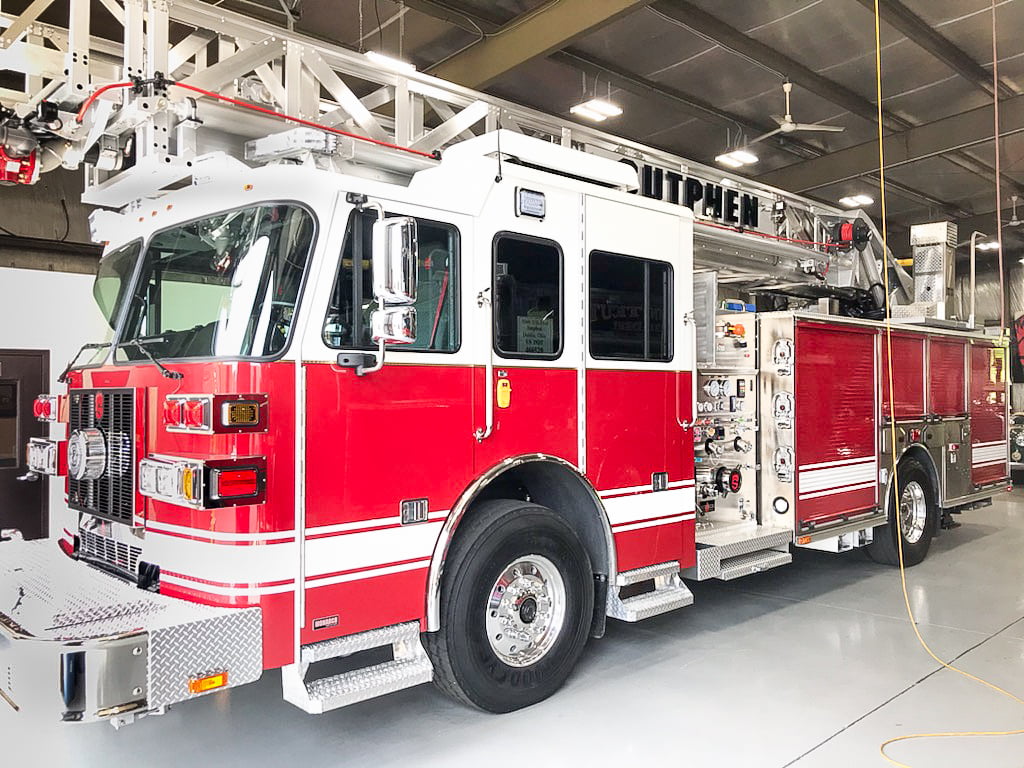

Truck Type:

Sutphen Corporation – HS #6961

Dealer – Texas Fire Apparatus

WHEELBASE: 206”

TRAVEL HEIGHT: 11’ – 10 ½”

TRAVEL LENGTH: 37’ – 11 ¼“

CHASSIS:           Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof

  • Four-Door, Six-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 35,000 lbs
  • Engine: Cummins L 9, 450 HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
  • Crosslay: (2) Crosslays 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank
  • 30-Gallon Foam Tank

BODY:                  Sutphen

  • ROM Roll-up Compartment Doors
  • Over 178 cu. ft. Total Compartment Space
  • Alco-lite Ladder Package: (85’: 16’ Roof, 24’ 2-Section, 35’ 3-Section & 10’ Folding)
  • Body: SAA-3, Left High / Right High
  • Monitor: Akron 3480 Stream Master Electric W/5178 Nozzle

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: FRC, Inview Trueview, Single Cameras
  • Intercom System: FRC ACT 2-Station
  • Hannay Electric Cord Reel, 150’ (1)
  • Generator: Smart Power 6KW
  • (2) FRC Spectra MS 14K LED Brow Light
  • Whelen FN Mini Lightbar
  • Firetech 12V LED Flood Lights
