Delivery Date:
02/23/2021
Department Name:
Bexar County ESD 8
Department City / State:
San Antonio, TX

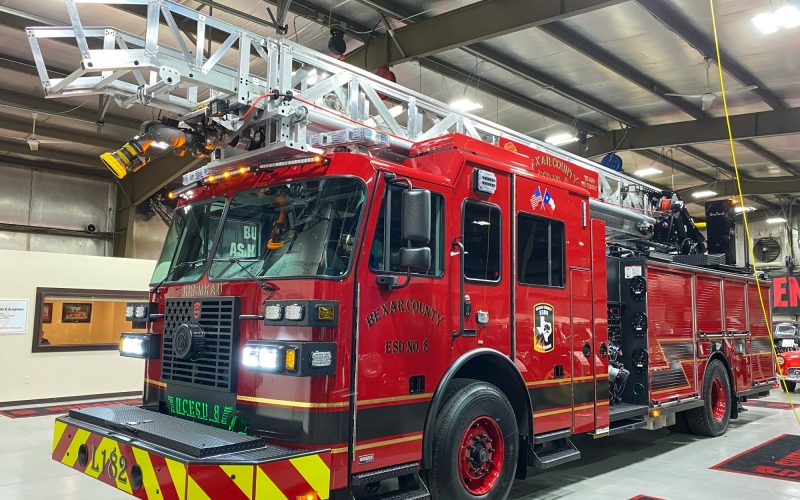

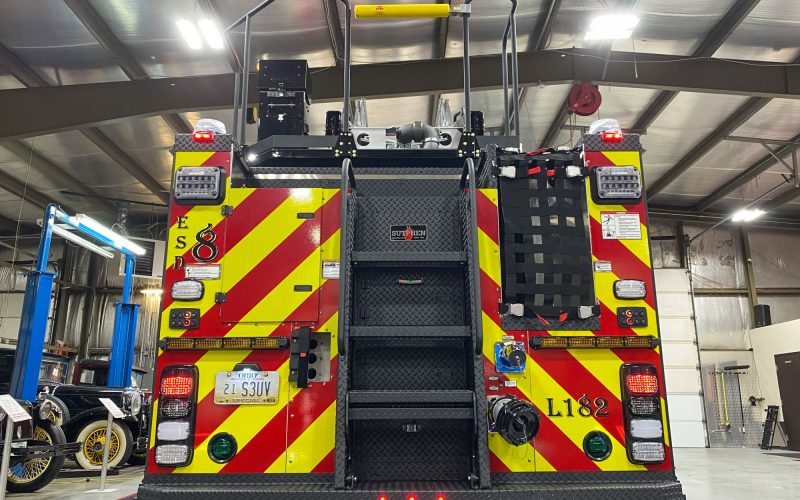

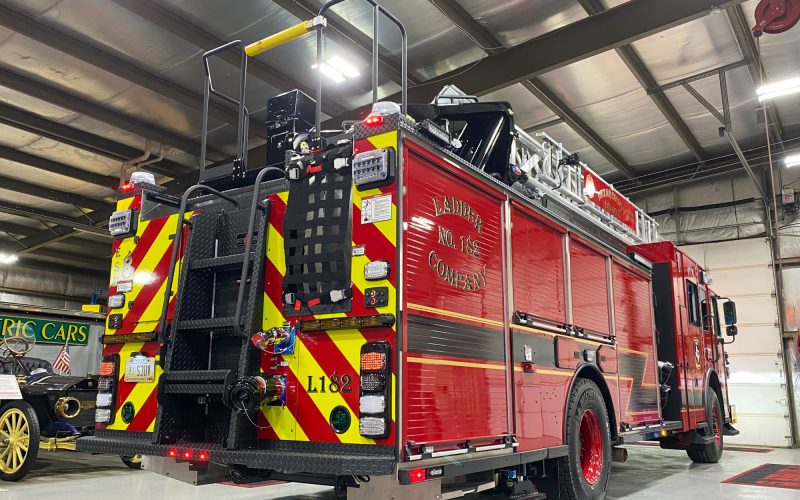

Truck Type:
Sutphen Corporation – HS #6823
Dealer – Texas Fire Apparatus
WHEELBASE: 217”
TRAVEL HEIGHT: 12’
TRAVEL LENGTH: 37’ – 11 ¼”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Split Raised Roof
- Four-Door, Six-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 35,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-2000 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Pipe Right Rear, (1) 1 ½” Front Bumper
- Crosslay: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
- 500-Gallon Water Tank
- 30-Gallon Foam Tank
- Foam System: Hale SmartFoam 5.0
BODY: Sutphen

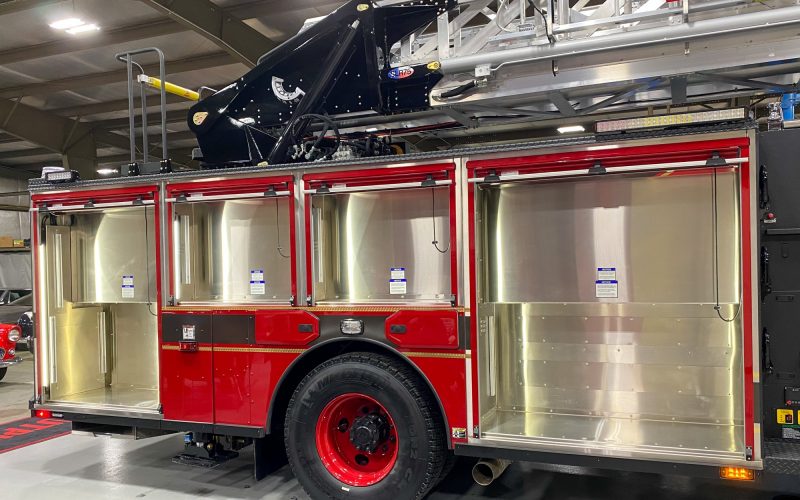

- ROM Roll-Up Compartment Doors, Painted
- Over 175 cu. ft. Total Compartment Space
- Duo-Safety Custom Ladder Compliment: (16R’; 24’ 2-Section; 35’ 3-Section; 10’F)
- Body: SAA-RM1, Left High/Right High

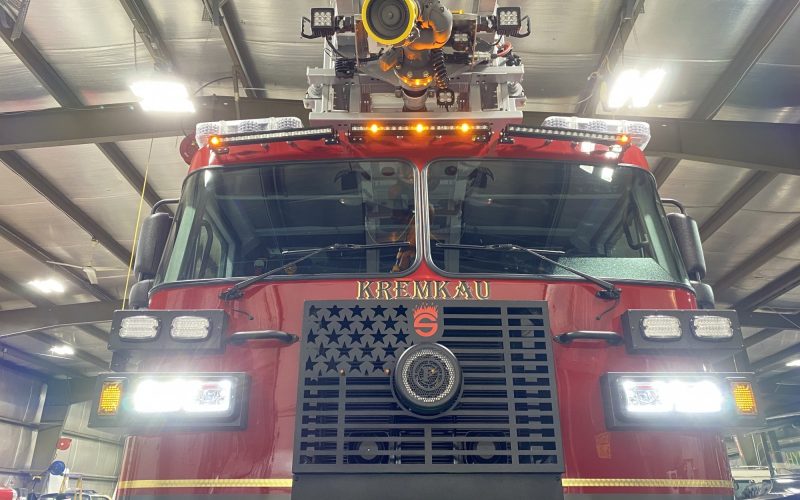

- Monitor: Elkhart 7250 Cobra EXM w/ SM1500E Nozzle (SLR75)
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel Bumper
- Federal Q2B Siren, Grille Mount
- Hannay Booster Reel, 150’ (1)
- Camera System: FRC, Inview Trueview, Two Cameras
- Intercom System: FRC ACT 2-Station
- Firetech 3-Piece 12V LED Brow Light
- FireTech LED Aerial Spotlights
- FireTech SL-30 12V LED Telescoping Light
- FireTech FT-MB-2.27 LED Scene Light
- Whelen Freedom Mini Rota Beam Lightbars
- Firetech LED Aerial Spotlights
