Delivery Date:
09/07/2023
Department Name:

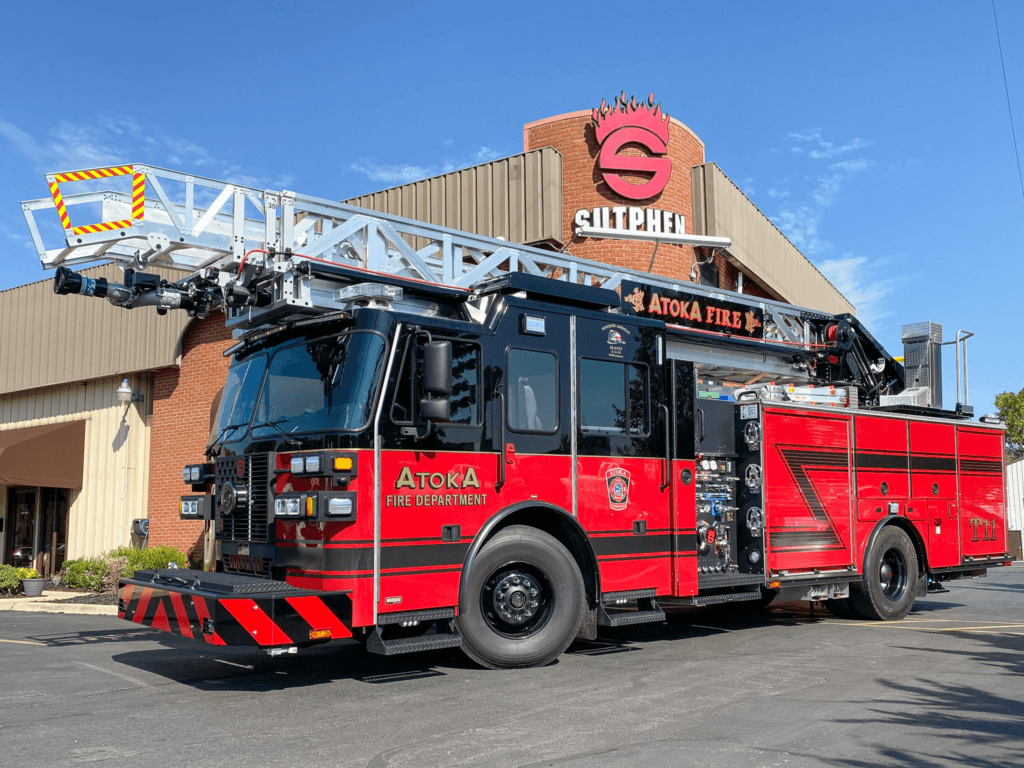

Atoka Fire Department
Department City / State:
Atoka, TN
Truck Type:
Dealer – Southeast Fire
WHEELBASE: 206”
TRAVEL HEIGHT: 11’ – 10 ½”
TRAVEL LENGTH: 37’ – 11 ¼”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ a 10” Raised Roof
- Four-Door, Five-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 35,000 lbs
- Engine: Cummins X12, 455 HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS4000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper, (1) 2 ½” Auxiliary Waterway
- Monitor: TFT Y5-E11A-L Typhoon Elec w/ M-ERP-1500 Nozzle
- Crosslays: (1) 2 ½” Crosslay, 2 ½” Swivel & (2) 2” Crosslays w/ 1 ½” Swivel
- 500-Gallon Water Tank
- 20-Gallon Foam Tank
BODY: Sutphen
- Huckbolt #304 Stainless Steel
- Mixed Roll-Up and Hinged Compartment Doors
- Over 175 cu ft. Total Compartment Space
- Alco-Lite Ladder Package: 16’ R, 24’ 2-Section, 35’ 3-Section & (2) 10’ F
- Body: SAA-RM1, Left High / Right High
ADDITIONAL EQUIPMENT:
- 24” Formed Steel Channel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Intercom System: FRC ACT 2-Station
- Camera System: Brigade, Three Cameras
- Hannay Electric Cord Reel, 150’ (1)
- FireTech 3-Piece Brow Light
- Whelen FNMINI Lightbar
- Whelen PCPSM1 12V LED Scene Light
- FireTech LED Boom Spot Lights 4 Total
- Whelen PCPSM1 Scene Lights
