Delivery Date:
10/17/2017
Department Name:
Elkhart Fire Department
Department City / State:
Elkhart, IN
Truck Type:
WHEEL BASE: 206”
TRAVEL HEIGHT: 11’-9 ½”
TRAVEL LENGTH: 37’-10 ½”
CHASSIS: Sutphen 62” cab with flat roof
- Four-Door, Six-Person Cab
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 35,000 lbs
- Engine: Cummins ISL 9, 450 HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000

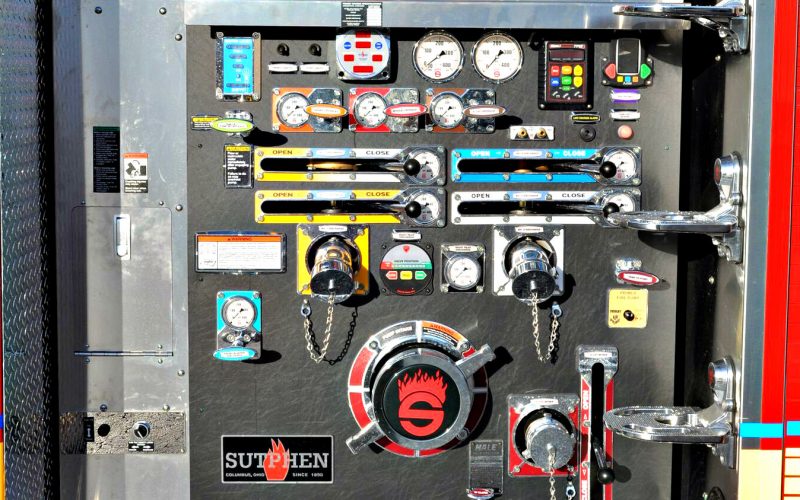

PUMP: Hale
- QMAX-1500
- Discharge: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Front Bumper
- 500-Gallon Water Tank
BODY: Sutphen
- Stainless Steel
- Rom Roll-Up Doors
- 94 cu. ft. Total Compartment Space
- Alco-Lite Quint Ladder Compliment
OPTIONAL EQUIPMENT:
- 10KW Smart Power Generator
- Hannay Electric Cord Reel, 200’
- Warning Lights, Whelen
- Camera System, Safety Vision SV-CLCD0-70
- Intercom System, FRC ACT 2-Station
- Ziamatic SAC-44 Folding Wheel Chocks
- Pike pole Storage Tubes
- Federal Q2B
- 24” Bumper
- Body Chute
