Delivery Date:
03/15/2021
Department Name:
Kenosha Fire Department
Department City / State:
Kenosha, WI

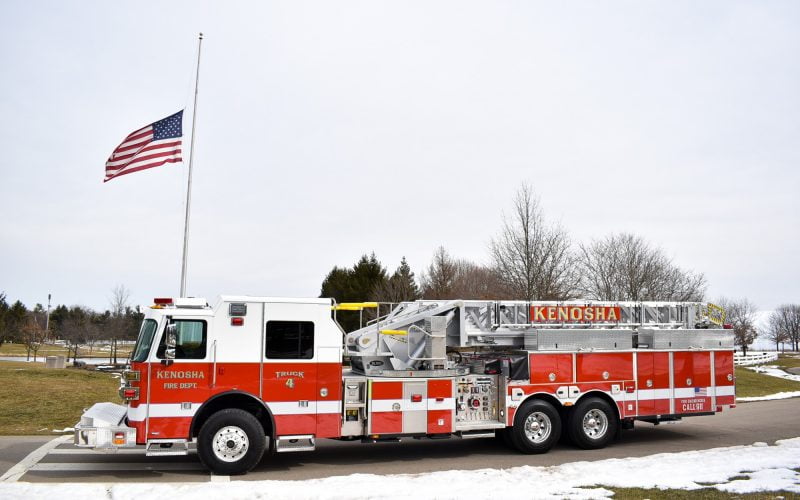

Truck Type:

Sutphen Corporation – HS #6840

Dealer – Legacy Fire Apparatus

WHEELBASE: 253”

TRAVEL HEIGHT: 9’ – 11”

TRAVEL LENGTH: 46’ – 3/4”

CHASSIS:              Sutphen Monarch Heavy-Duty Custom Chassis, 73” Cab w/ 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails, Tandem Axle – Aerial (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 48,000 lbs
  • Engine: Cummins X 12 500HP
  • Alternator: Leece Neville, 320 AMP
  • Transmission: Allison GEN 5 EVS4000

PUMP:                  Hale

  • QMAX-2000 GPM 6” Suction, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (2) 2 ½” Right
  • Crosslay: (2) 2”, 1 ½” Swivel & (1) 2 ½”
  • 480-Gallon Water Tank
  • 20-Gallon Foam Tank

BODY:                   Sutphen

  • Hinged Compartment Doors
  • Over 208 cu. ft. Total Compartment Space
  • Ladder Package: Duo Safety 585-A 10′ Folding (Aerial Fly Section), 875-A 16′ Roof (Aerial Base Section), 875-A 16′ Roof (Ladder Rack), 875-A 18′ Roof (Aerial Base Section), 1200-A 28′ 2-Section (Ladder Rack), 1200-A 28′ 2-Section (Ladder Rack), 1225-A 35′ 3-Section (Ladder Rack)
  • Body: SL100-1 – Left High / Right Low

ADDITIONAL EQUIPMENT:

  • 30” Polished Stainless-Steel Bumper
  • Federal Q2B Siren, Grille Mount
  • Camera System: Intec Single Camera
  • FRC ACT 2-Station Intercom System
  • Whelen Freedom 4 Lightbar
  • Whelen PFH1 LED Brow Light
  • Rigid E-Series 10” LED Spot/Flood Combo Light

MONITOR:

  • Akron 3480 Stream Master 2 Elec RF W/5178 Nozzle
