Delivery Date:
07/13/2023
Department Name:
Travis County ESD #1
Department City / State:
Largo Vista, TX
Truck Type:

Dealer – Texas Fire Apparatus

WHEELBASE: 232”

TRAVEL HEIGHT: 10 – 0 ½”

TRAVEL LENGTH: 42’ – 9”

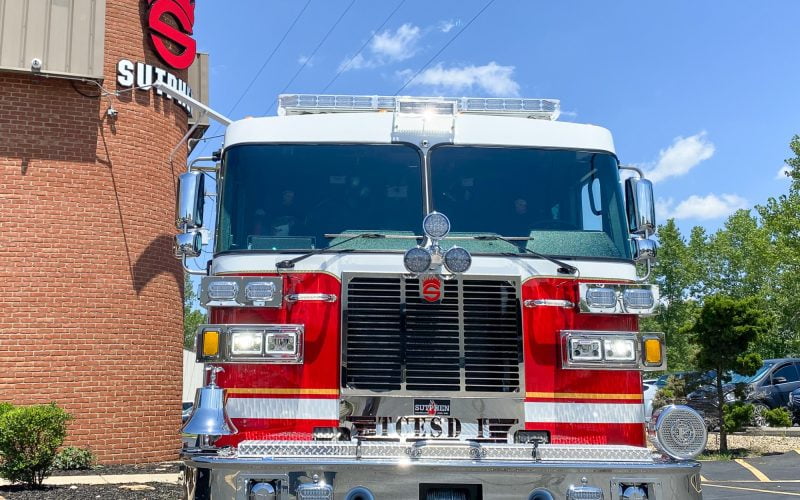

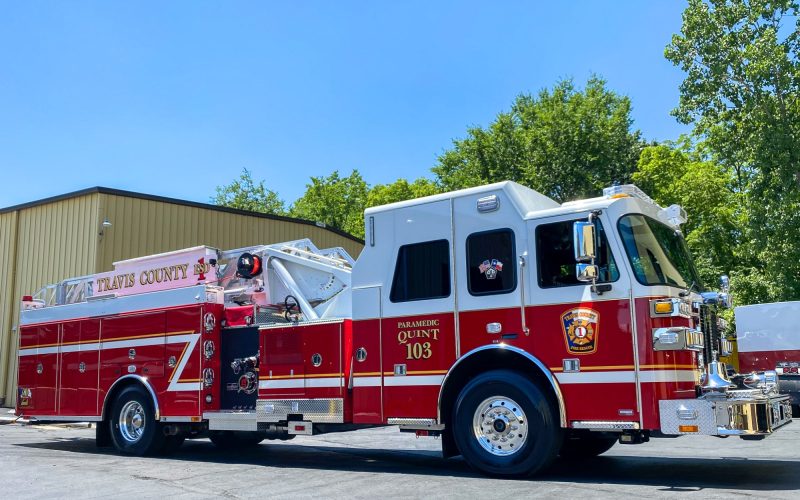

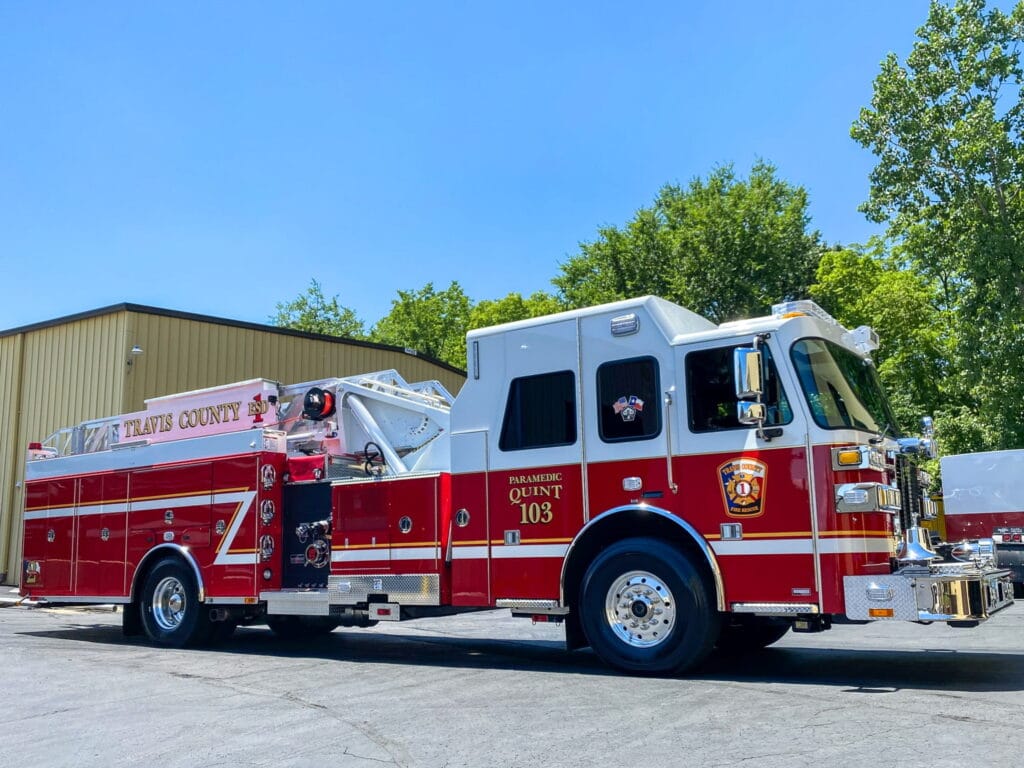

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ a 15” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Domex Frame Rails (110K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 35,000 lbs
  • Engine: Cummins X 12, 500HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS4000

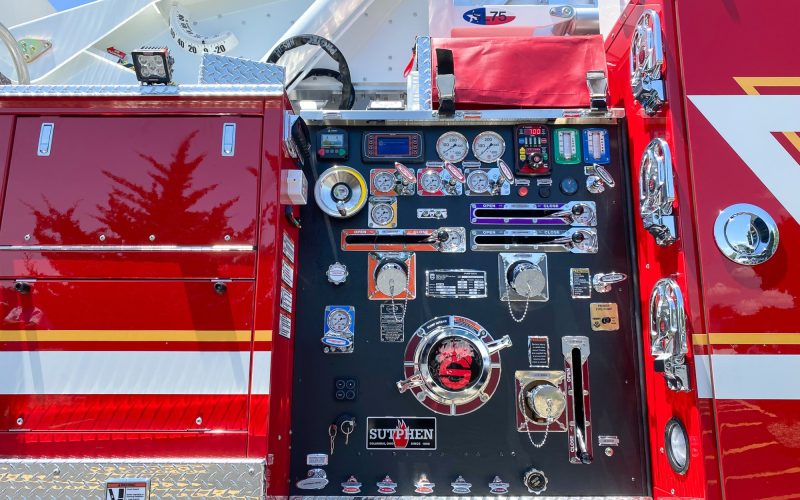

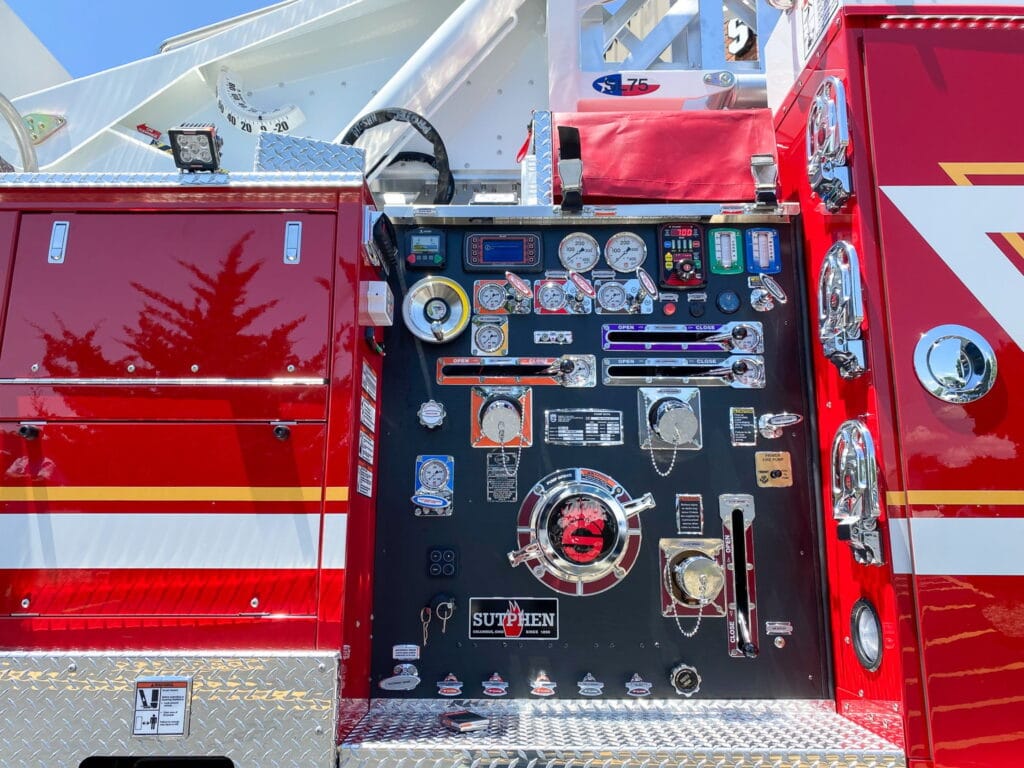

PUMP:                 Hale

  • QMAX-2000 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 4” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 1 ½” Front Bumper

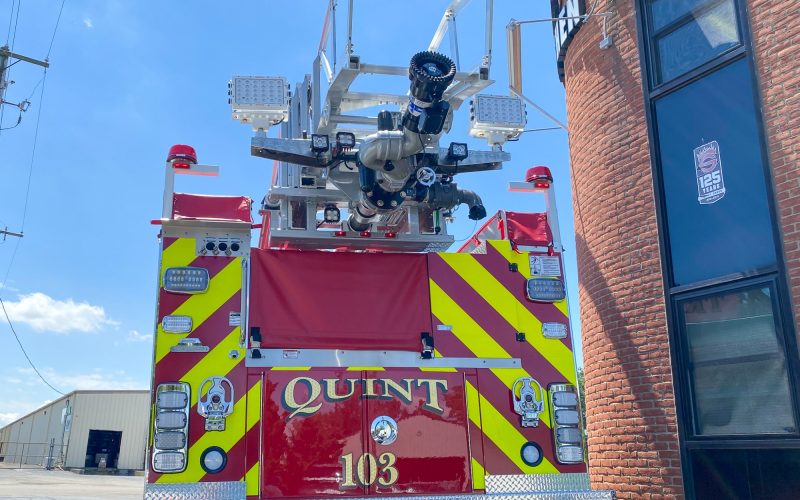

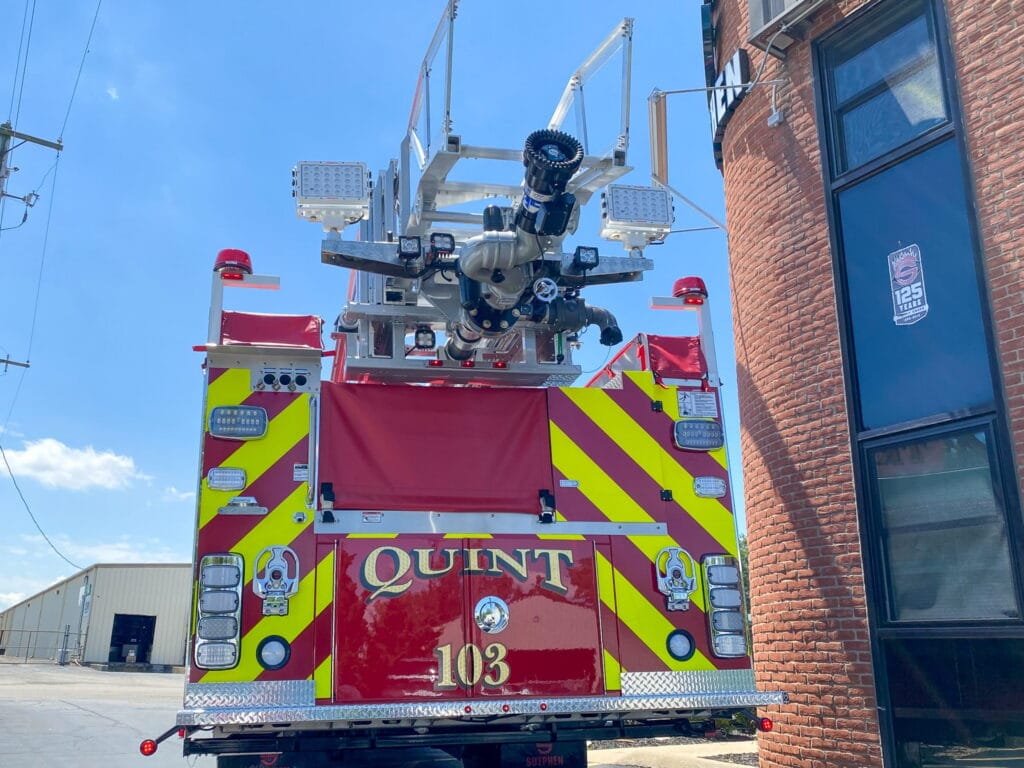

  • Monitor: TFT Y5-E11A-L Typhoon Electric w/ M-ERP-1500 Nozzle
  • Crosslays: (2) 2” w/ 1 ½” Swivel
  • 475-Gallon Water Tank
  • 25-Gallon Foam Tank
  • Foam System: Hale Smartfoam 5.0

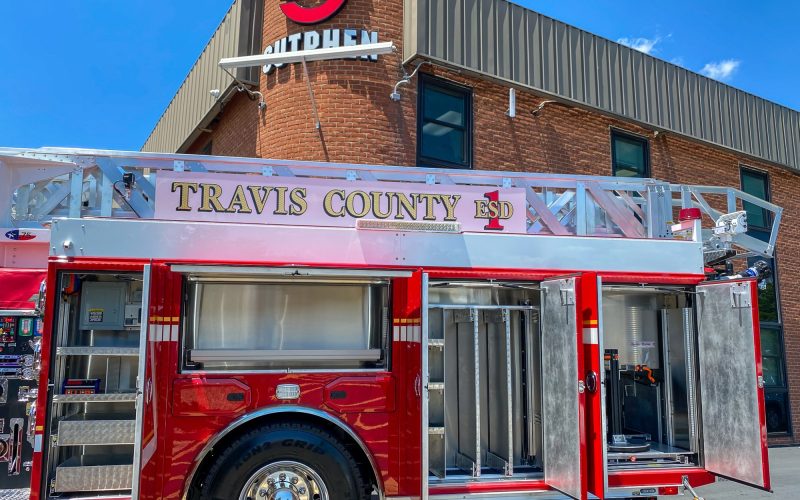

BODY:                  Sutphen

  • Huckbolt #304 Stainless Steel
  • Hinged Compartment Doors
  • Over 230 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 83’ – 14’ R, 24’ 2-Section, 35’ 3-Section & 10’ F
  • Body: Left High / Right High Split / Extended L3/R3 / Trans

ADDITIONAL EQUIPMENT:

  • 24” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Pedestal Mount
  • Intercom System: FRC ACT 2-Station
  • Camera System: Brigade, Backeye 360 Camera System
  • FRC Spectra 20K 12V LED Brow Light
  • Winch: 12,000 lb Warn Winch
  • Hannay Electric Cord Reel, 150’
  • Whelen Pioneer PFH2 12V LED Brow Light
  • Whelen Freedom 4 Lightbar
  • Whelen M9 Scene Light
  • FireTech FT-MB-2.27 12V LED Scene Light
  • FireTech 12V LED Boom Spotlights
  • FireTech FT-SL 120V 31K LED Scene Light
