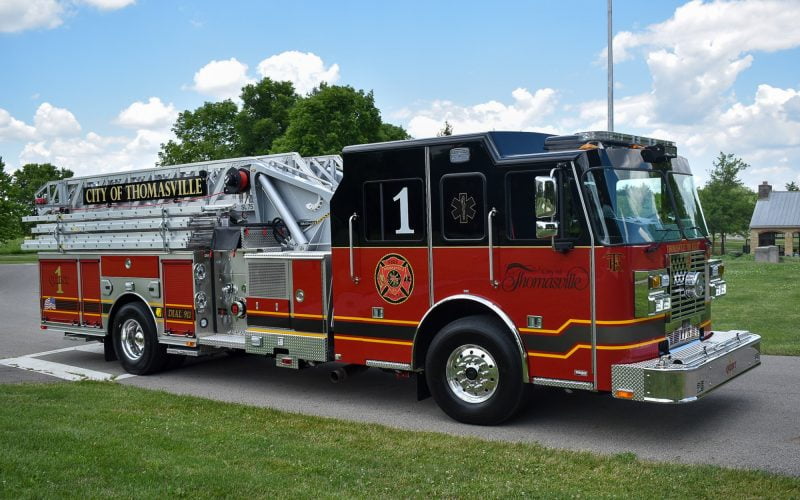

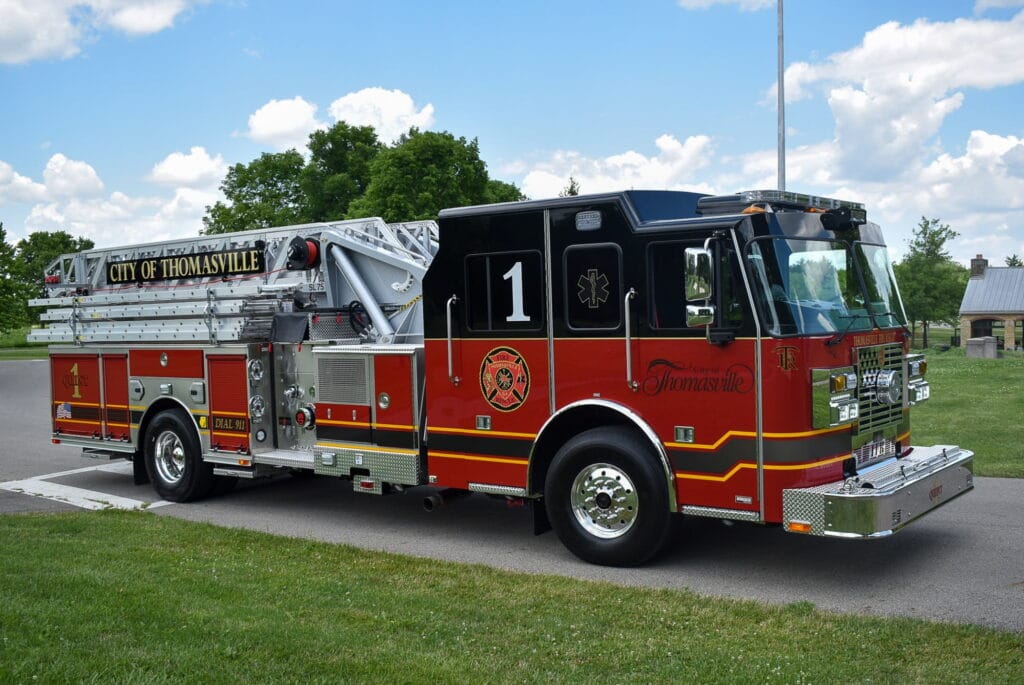

Sutphen Corporation – HS #7166
Dealer – Williams Fire Apparatus
WHEELBASE: 232”
TRAVEL HEIGHT: 10’ – 0 ½”
TRAVEL LENGTH: 42’ – 3”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 73” Extended Cab w/ 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Domex Frame Rails (110K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins L 9, 450HP
- Alternator: Leece Neville, 320 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1750 GPM 6” Suction, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side, (1) 1 ½” Front Bumper
- Monitor: TFT Y4-E11A-P-01 Monsoon Electric w/ M-ERP-1500 Nozzle
- Crosslays: (2) 2” Valve Piping w/ 1 ½” Swivel
- 400-Gallon Water Tank
BODY: Sutphen
- Huckbolt #304 Stainless Steel
- Amdor Roll Up Compartment Doors, Painted
- Over 192 cu ft. Total Compartment Space
- Duo-Safety Ladder Package: (2) 16’ R, 24’ 2-Section, 35’ 3-Section, & (2) 10’ Folding
- Body: SAA-4, Left High / Right Intermed / Trans
ADDITIONAL EQUIPMENT:
- 18” Polished Stainless Steel, Bumper Extension
- Federal Q2B Siren, Grille Mount
- Intercom System: FRC ACT 2-Station
- Generator: 6KW Smart Power
- Whelen Freedom 4 Lightbar
- Whelen PFH2 12V LES Brow Light
- Whelen M9 Scene Lights
