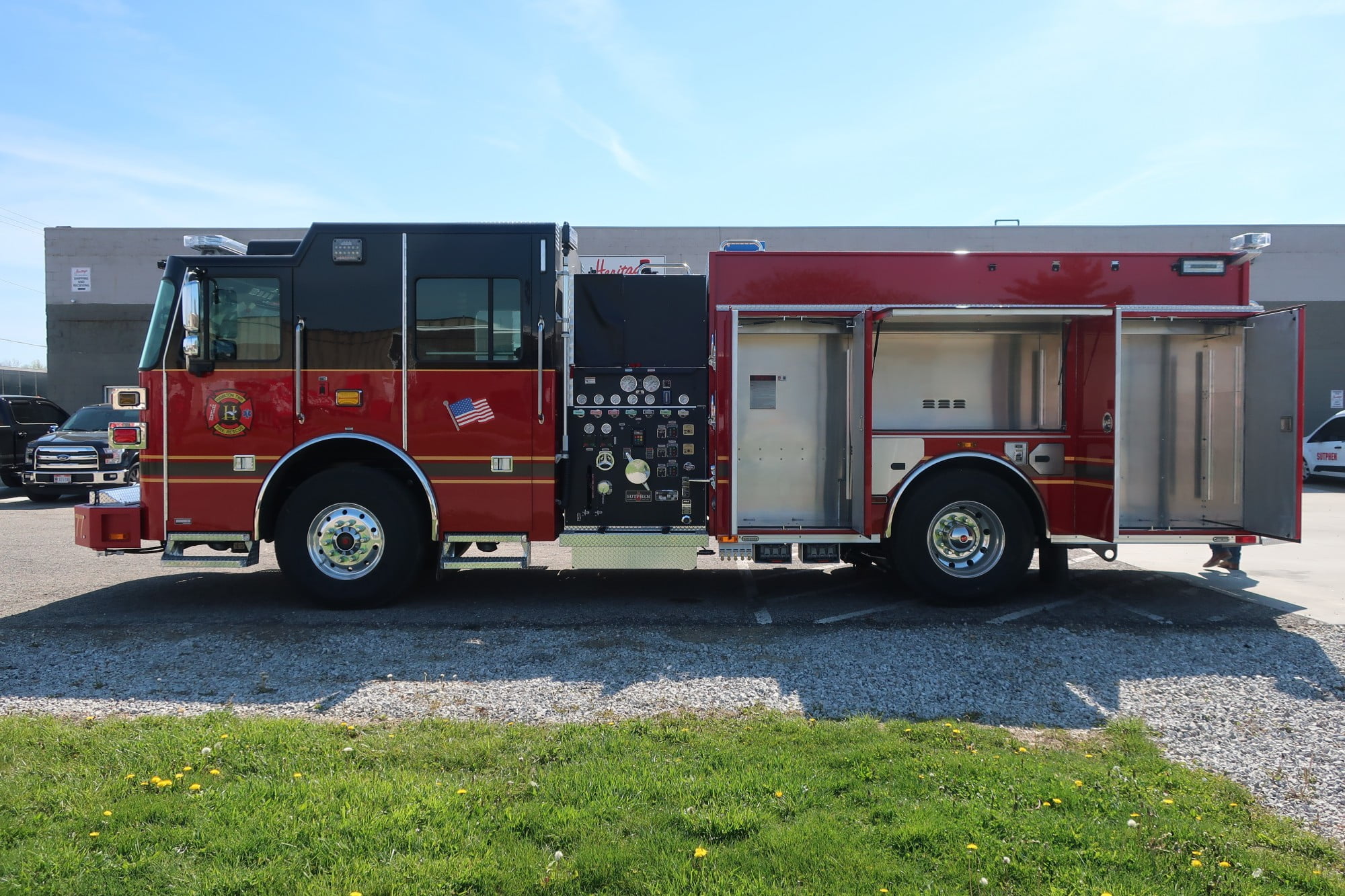

Sutphen Corporation – HS #6904
Dealer – Stevens Fire Equipment
WHEELBASE: 221”
TRAVEL HEIGHT: 10’ – 0 ½”
TRAVEL LENGTH: 41’ – 4”
CHASSIS: Sutphen Monarch Heavy-Duty Custom Chassis, 62” Extended Cab w/ 10” Raised Roof
- Four-Door, Four-Person Cab
- 10” Double Frame Rails (50K PSI)
- Front Axle and Suspension 23,000 lbs
- Rear Axle and Suspension 31,000 lbs
- Engine: Cummins L 9, 450 HP
- Alternator: Leece Neville, 420 AMP
- Transmission: Allison Gen 5, EVS3000
PUMP: Hale
- QMAX-1500 GPM, Single Stage Pump
- Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 2 ½” Upper Left Side Body, (1) 1 ½” Front Bumper
- Crosslay: (2) Crosslays 2” Valve-Piping 1 ½” Swivel
- 500-Gallon Water Tank
BODY: Sutphen
- Hinged Compartment Doors
- Over 190 cu. ft. Total Compartment Space
- Duo-Safety Custom Ladder Compliment: (85’: 16’R, 24’ 2-Section,35’ 3-Section & 10’ F)
- Body: SAA-3, Left High / Right Intermed
- Monitor: TFT Y5-E11A-L Typhoon Electric w/ M-ERP-1500 Nozzle
ADDITIONAL EQUIPMENT:
- 18” Formed Steel Bumper
- Federal Q2B Siren, Grille Mount
- Camera System: FRC, Inview Trueview, Three Cameras
- Intercom System: FRC ACT 2-Station
- Hannay Electric Cord Reel, 150’ (1)
- Generator: Smart Power 6KW
- Whelen Freedom 4 Lightbar
- Freedom IV Mini Lightbars
- Whelen PCP2 12V LED Brow Light
- Whelen M9 Scene Light
