Delivery Date:
02/16/2023
Department Name:
Steubenville Fire Department
Department City / State:
Steubenville, OH

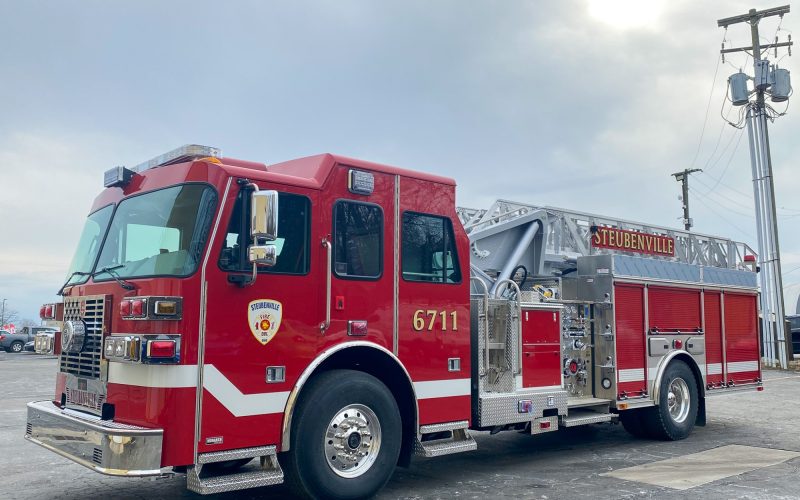

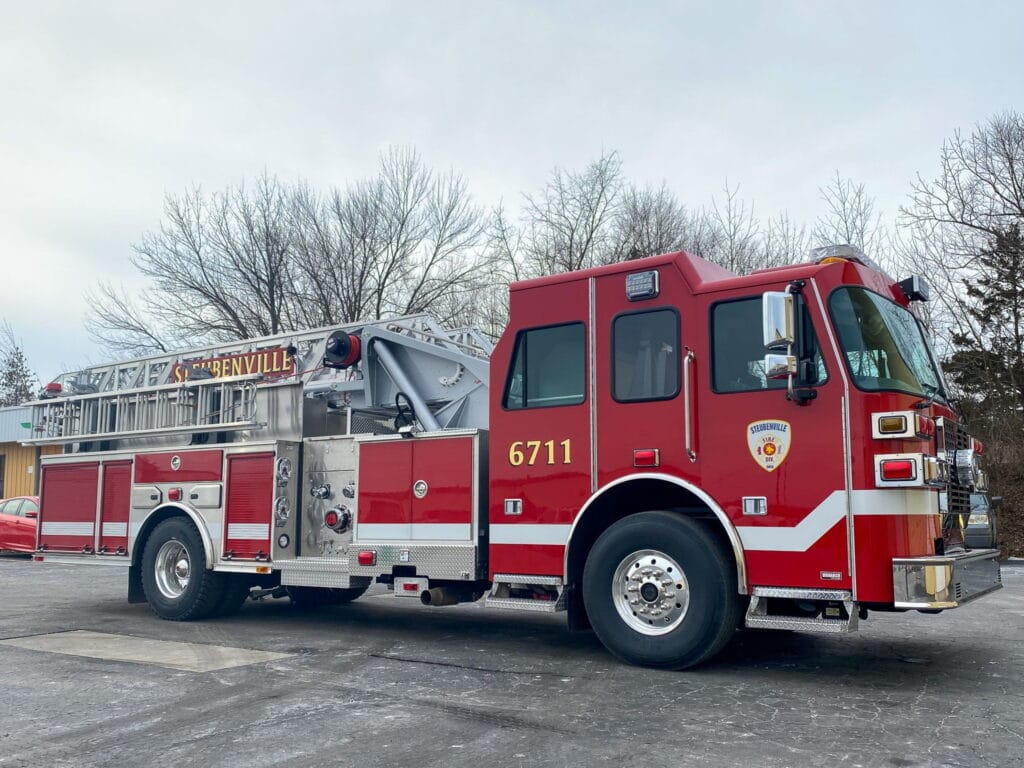

Truck Type:

Sutphen Corporation – HS #7344

Dealer – Heritage Fire Equipment

WHEELBASE: 215”

TRAVEL HEIGHT: 10’

TRAVEL LENGTH: 39’ – 8”

CHASSIS:             Sutphen Monarch Heavy-Duty Custom Chassis, 56” Extended Cab w/ a 10” Raised Roof

  • Four-Door, Four-Person Cab
  • 10” Double Frame Rails (50K PSI)
  • Front Axle and Suspension 23,000 lbs
  • Rear Axle and Suspension 31,000 lbs
  • Engine: Cummins L 9, 450HP
  • Alternator: Leece Neville, 420 AMP
  • Transmission: Allison Gen 5, EVS3000

PUMP:                 Hale

  • QMAX-1500 GPM, Single Stage Pump
  • Discharges: (2) 2 ½” Left, (1) 3” Right, (1) 2 ½” Right, (1) 1 ½” Right, (1) 2 ½” Pipe Right Rear,
  • Monitor: Elkhart 7205 Cobra EXM w/ SM1500 E Nozzle
  • Crosslays: (2) 2” Valve-Piping 1 ½” Swivel
  • 500-Gallon Water Tank

BODY:                  Sutphen

  • Huckbolt #304 Stainless Steel
  • Amdor Roll-Up Compartment Doors
  • Over 210 cu ft. Total Compartment Space
  • Duo-Safety Ladder Package: 14’ R, 24’ 2-Section & 10’F
  • Body: SAA-4, Left High / Right Intermed / Trans

ADDITIONAL EQUIPMENT:

  • 6” Polished Stainless Steel, Bumper Extension
  • Federal Q2B Siren, Grille Mount
  • Intercom System: FRC ACT 2-Station
  • Camera System: FRC, Inview Trueview, Single Camera
  • FRC Spectra 20K 12V LED Brow Light
  • Whelen Freedom 4 Lightbars
  • FireTech Guardian Elite 12V 20K LED Scene Lights
  • FireTech WL-2000 12V LED Rear Work Lights
  • FireTech 12V LED Boom Spotlights
  • FRC Spectra MS 12V 14K LED Scene Light
